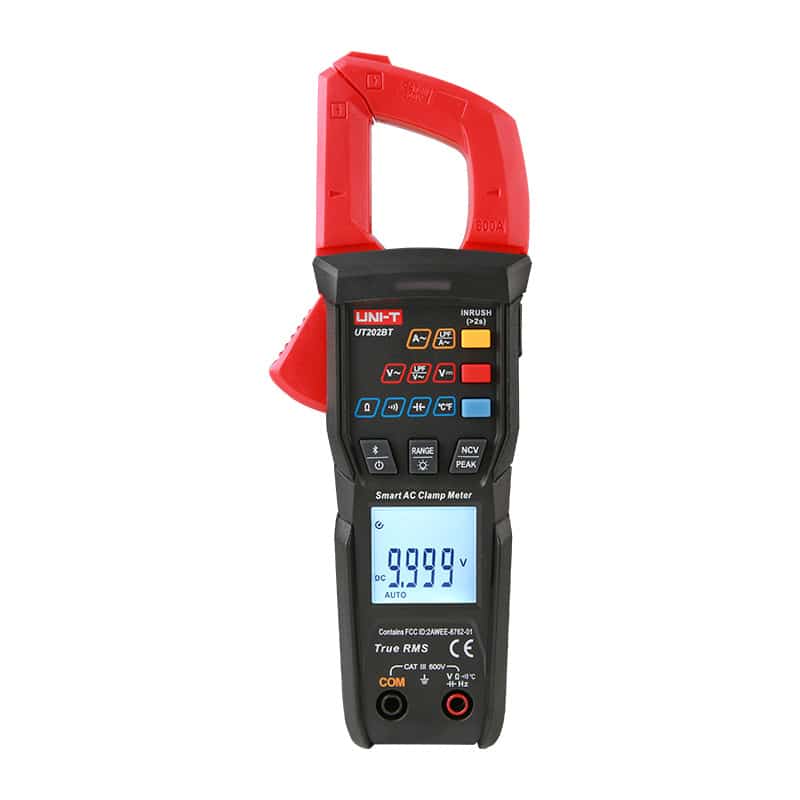

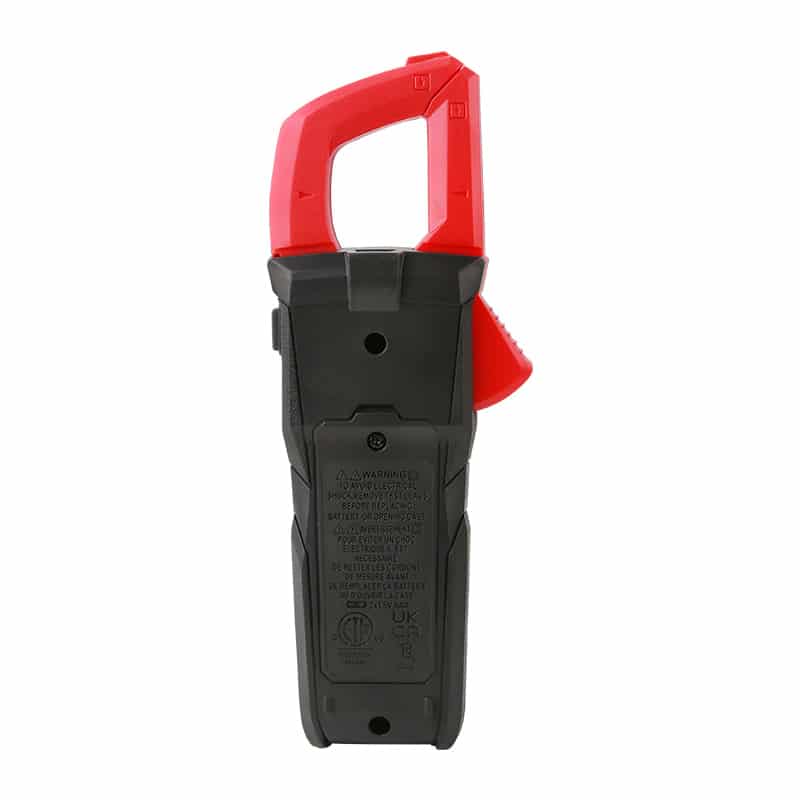

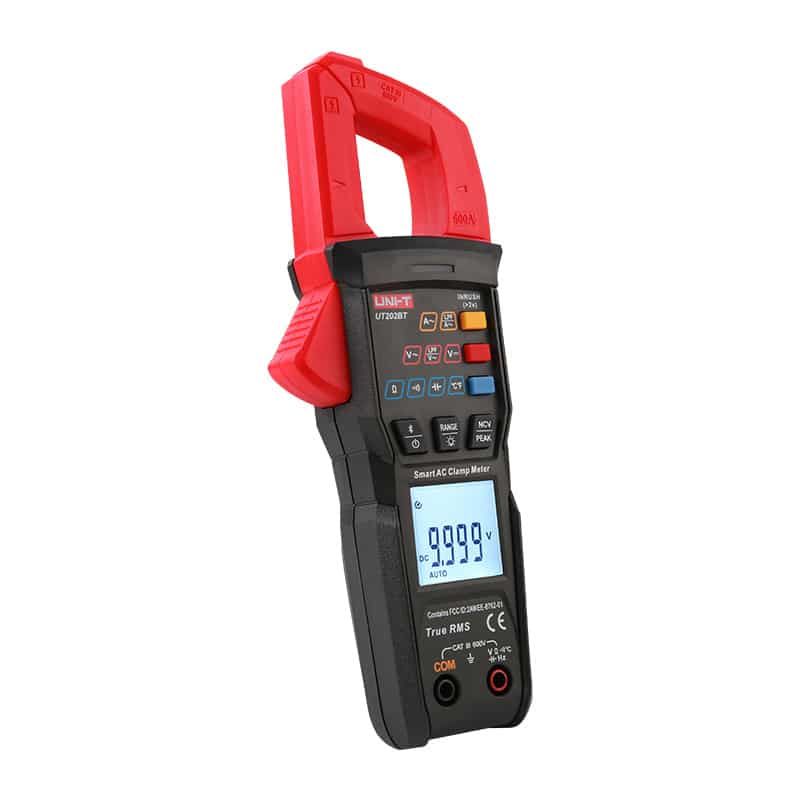

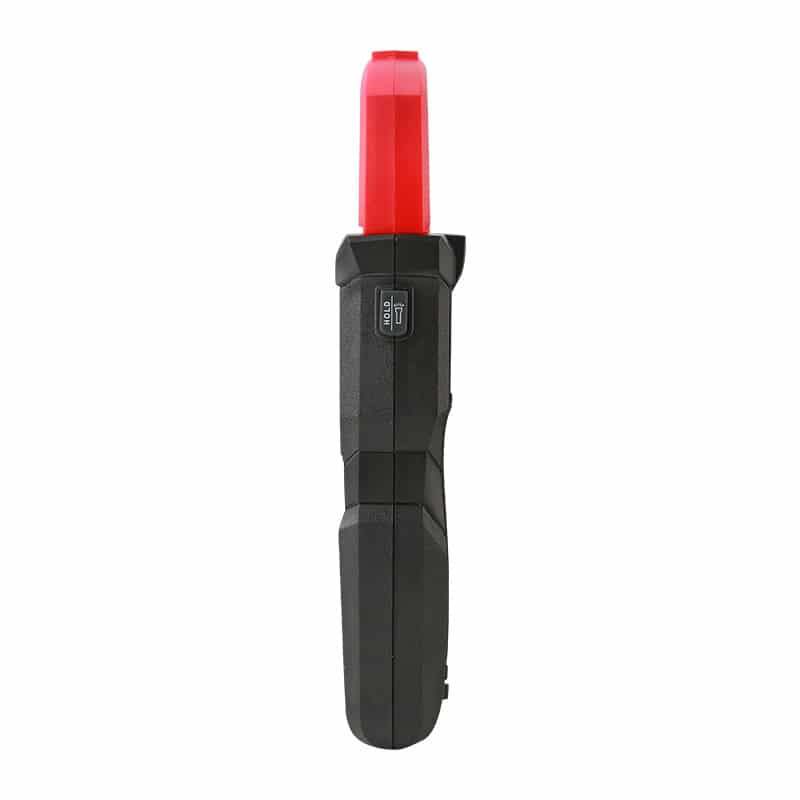

UT202BT is a Bluetooth smart clamp meter designed with low pass filter mode, and inrush current detection, peak hold, and other traditional clamp meter functions. UT202T is a simple-to-use smart clamp meter that can automatically detect the most common parameters.
Features
- Button-design clamp meter
- One-hand operation and easy to use
- True RMS / 9999 counts
- Jaw opening: 28mm
- 600V AC/DC voltage measurement
- 600A AC current measurement
- Dual display: V+HZ and A+HZ
- Bright backlight / Flashlight
- Non-contact voltage (NCV)
- CAT III 600V.
Includes
- 1 x UT202BT
- Test leads
- batteries
- temperature probe and 12-month warranty.
| Specifications | Range | UT202T | UT202BT |
| Certificates | CE/UKCA/cETLus | ||
| DC voltage (V) | 600V | Β±(0.5%οΌ3) | Β±(0.5%οΌ3) |
| AC voltage (V) | 600V | Β±(0.8%οΌ3) | Β±(0.8%οΌ3) |
| AC current (A) | 600A | Β±(2.5%+5) | Β±(2.5%+5) |
| Resistance (Ξ©) | 6MΞ© | Β±(0.8%+3) | |
| 100MΞ© | Β±(0.8%+3) | ||
| Frequency (Hz) | 40Hz~1000Hz | Β±(1.0οΌ +5) | Β±(1.0οΌ +5) |
| Capacitance (F) | 100mF | Β±(4%+5) | Β±(4%+5) |
| Temperature (β/β) | -40β~1000β/-40β~1832β | Β±5/Β±9 | |
| Features | |||
| Jaw opening | 28mm | 28mm | |
| Display count | 9999 | 9999 | |
| Dual display | β | β | |
| Auto range | β | β | |
| NCV | β | β | |
| Continuity | β | β | |
| PEAK hold | β | ||
| Low pass filter | β | ||
| Inrush current | β | ||
| Audible visual indication | β | β | |
| Low battery indication | οΌ2.4V approximately | β | β |
| Data hold | β | β | |
| Auto power off | Approximately 15 minutes | β | β |
| Flashlight | β | β | |
| Bluetooth | β | ||
| Safety rating | CAT β ’ 600V | ||
| General Characteristics | |||
| Power | AAA 1.5V x 2 | ||
| Product colour | Red+Gray | ||
| Product net weight | UT202BT: 251g (Including batteries) | ||
| Product size | 201.5 x 47 x 28mm | ||
| Standard accessories | Test leads, batteries, temperature probe | ||
| Standard individual packing | Box, carrying bag, English manual | ||
