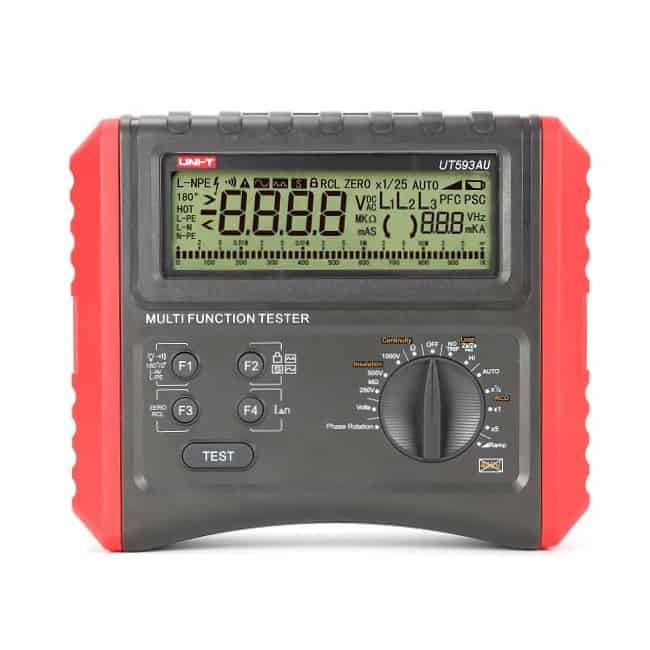

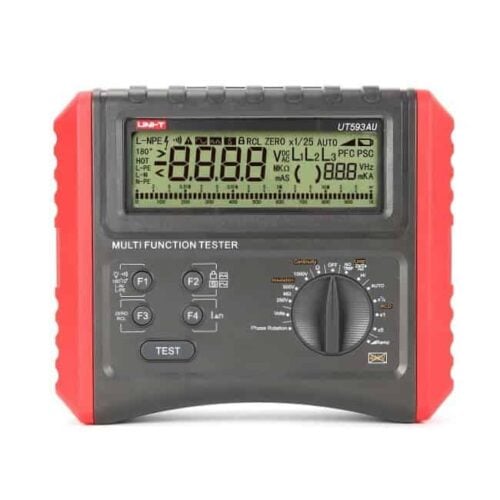

Uni-T UT593AU Multifunction RCD Loop Tester

Uni-T UT593AU Multifunction Loop Tester AC Voltage Insulation Resistance Loop/Line Impedance RCD

$911.99 ex. GST
$1,048.79 incl. GST

Availability: In stock

Everyday Low Trade Price
Free Delivery within New Zealand*
30 Day Hassle Free Returns

UT593AU is a multifunction digital safety testing instrument, designed with a combination of large-scale integrated analog & digital circuits and the microprocessor chip. It measures RCD, line/loop impedance, continuity, insulation resistance, DC and AC voltage, phase sequence, featuring versatile functionality and high accuracy. The instrument is widely used to measure RCD, insulation and earth connections on electrical equipment, and is an ideal tool for testing, inspection and maintenance.

Uni-T is one of the leading Test and Measurement solutions providers in the world and a prestige test meter brand throughout Asia. They are well known for their high quality and affordable test and measurement products.

UT593AU Multifunction RCD Loop Tester Features:

  • 9999-count LCD display with analogue bar
  • 250V~1000V DC insulation resistance test
  • 200mA earth-resistance continuity test
  • Loop impedance/Prospective Fault Current (PFC)/Prospective Short Current (PSC) test
  • Lock test
  • Phase Rotation
  • CATIII 300V
  • RCD trip time test and the data storage with one key
  • Full/Half wave and count downing (30s) test mode selectable
  • 0°/180° phase angle option to detect the fastest trigger time
  • Trip current test of RCD trip time x 0.5, x  1  and, x 5
  • RCD trip trigger current test
  • Phase sequence and missing test
  • AC/DC voltage auto-check and test
  • Connection check with status real-time display
  • White backlight; auto power off
  • Heavy Duty Cary Case
  • 12-month warranty.

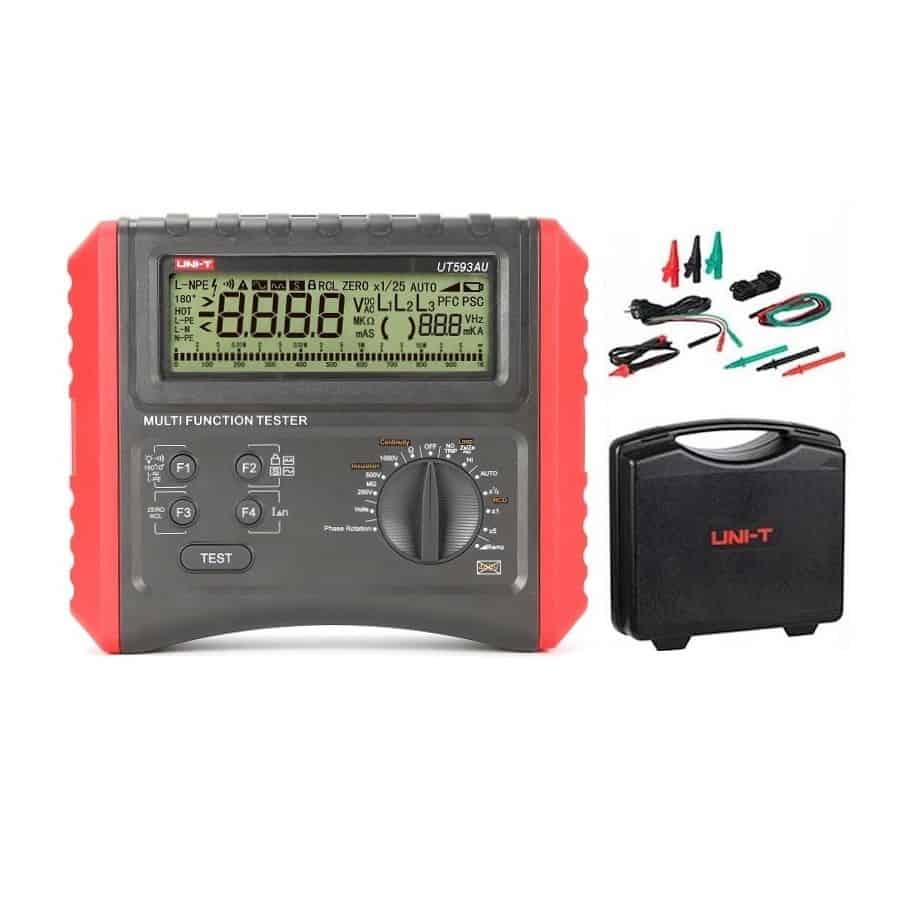

UT593AU Multifunction RCD Loop Tester Includes:

1 x Carry case, batteries, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead and 12-month warranty.

UT593AU Multifunction RCD Loop Tester Specifications:

Specifications Range Best Accuracy
Model   UT593AU
Insulation resistance (Ω) Output voltage 250V/500V/1000V ±10%
250V 0.05MΩ~250MΩ ±(5%+5)
500V 0.05MΩ~500MΩ
1000V 0.05MΩ~1000MΩ
Short-circuit current <2mA
Low-resistance continuity test Range 0.00Ω~199Ω ±(2%+5)
Test current 0.00~2Ω: >200mA
Line impedance (Ω) Range 0.01Ω~2000Ω ±(5%+5)
Operating voltage (Frequency) 195V~440V (45Hz~65Hz)
Test current 20A
PFC test 0kA~26kA
Loop impedance (Ω) Range 0.01Ω~2000Ω ±(5%+5)
Operating voltage (Frequency) 195V~253V (45Hz~65Hz)
Test current 20A
PFC test 0kA~26kA
Non-trip loop impedance (Ω) Range 1.00Ω~2000Ω ±(5%+5)
Operating voltage (Frequency) 195V~253V (45Hz~65Hz)
Test current 15mA
PFC test 0kA~26kA
RCD test Operating voltage (Frequency) 195V~253V (45Hz~65Hz)
Test current 10mA/30mA/100mA/300mA/500mA ±10%
Trip time ×1/2 *I△n  Range: 0ms~2000ms ±(5%+5)
×1 *I△n  Range: 0ms~300ms
×1 *I△n  Range: 0ms~500ms (Select count down)
×5 *I△n  Range: 0ms~40ms ±(5%+5)
Phase sequence test Operating voltage (Frequency) 100V~440V  (45Hz~65Hz)
Display Phase sequence: L1→ L2→ L3, forward rotation; L1→ L3→ L2 reverse rotation
Ramp RCD test Test current 10mA/30mA/100mA/300mA/500mA ±10%
AC voltage (V) Range 0V~440V ±(5%+2)
Frequency response 45Hz~60Hz
Resolution 1V
Display count 9999
Auto power off
Low battery indication
Data storage
LCD backlight
Auto half-wave test
RCD count down test 30s
RCD half-wave test
Phase conversion (RCD) 0° and 180°
General Characteristics
Power 1.5V battery (AA) × 6
LCD size 125mm × 37mm
Product colour Red and grey
Product net weight 1000g
Product size 210mm × 175mm × 90 mm
Standard accessories Battery, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead
Standard individual packing Cardboard Box, manual, toolbox



ut593au, cert


UT593 Multifunction Loop Tester English Manual

UT593AU Multifunction RCD Loop Tester Product Flyer
