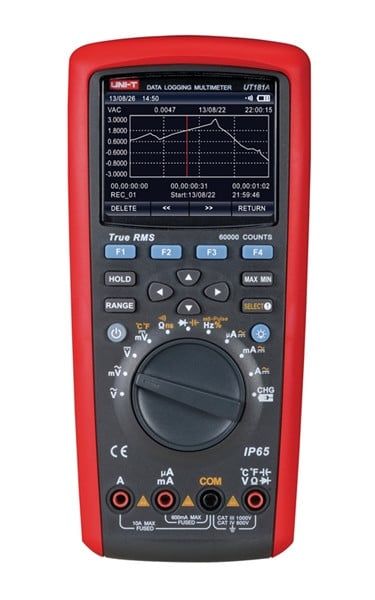

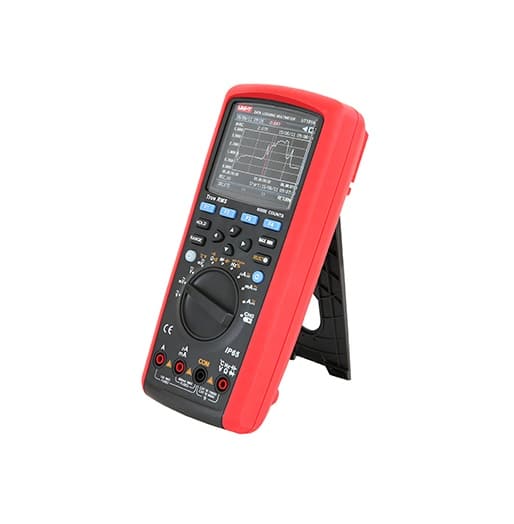

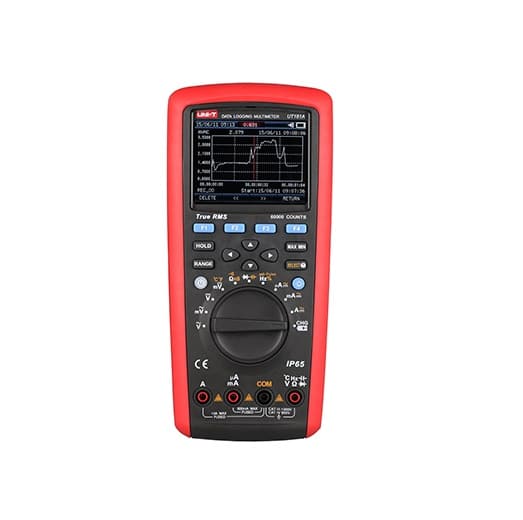

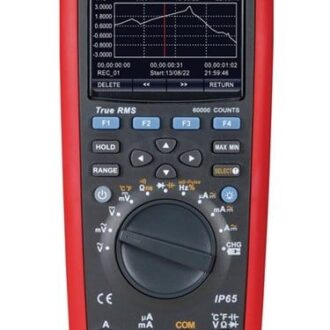

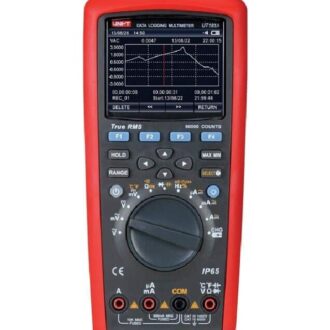

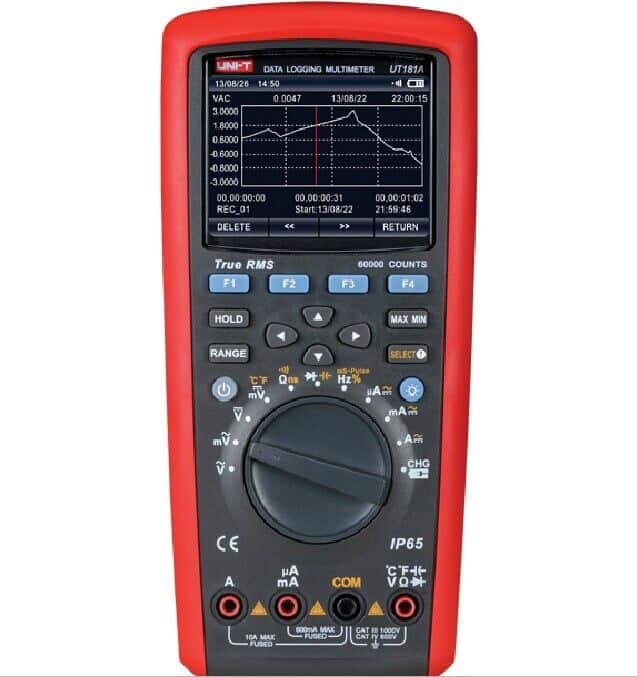

UT181A is a digital multimeter with trend capture, true RMS, low pass filter, nS conductance, dual temperature measurement, and more. With the help of the data logging feature, users can store up to 20000 sets of measurement data and display them on a trend graph for long term monitoring.
This Uni-T DMM is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Β It provides the ability to log data and graphically review up 20,000 recorded events and logged readings with on-board TrendCapture. Zoom and analyze dataβwithout needing a PC.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT181A True RMS Data-logging Multimeter Features:
- CAT III 1000V / CAT IV 600V rating
- Trend capture
- Data logging: 20000
- Data comparison
- 3.5-inch 64k colour TFT LCD
- Dual temperature measurement
- Low pass filter
- 2200mAh Li-ion battery
- Real-time and date
- Peak hold

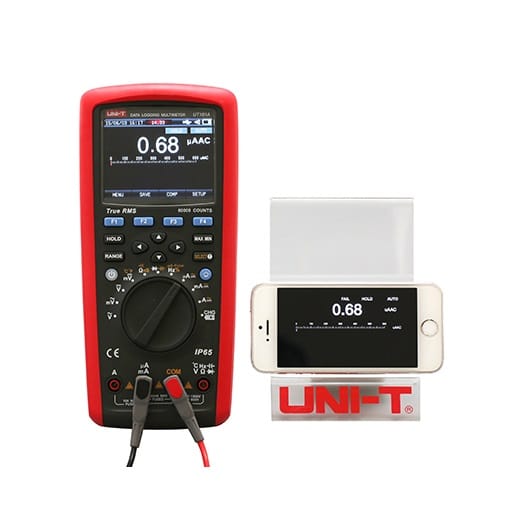

- Bluetooth Smart Phone APP (Apple / Android)
- 11.USB interface cable /PC software CD

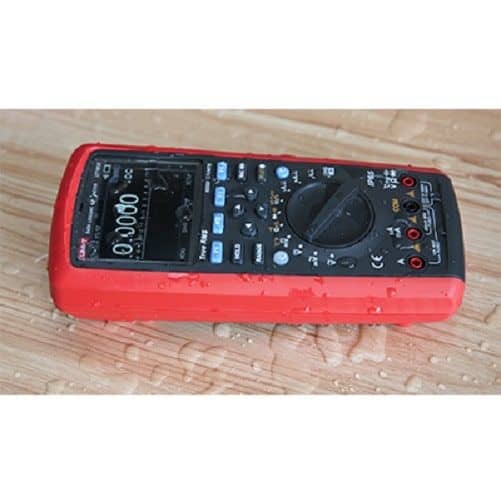

- IP65
- 12-month warranty.
UT181A True RMS Data-logging Multimeter Includes:
1 x UT181A, 1 x Batteries 1 x Pair Test Leads,Β 1 x Temperature Probe, 1 x Temperature Adaptor, 1 x Power Adaptor, 1 x USB Interface Cable, 1 x PC Software CD, 1 x English user manual, and 12-month warranty.
UT181AΒ True RMS Data-logging Multimeter Specifications:
| Specifications | Range | UT181A |
| DC voltage (V) | 1000V | Β±(0.025%+5) |
| AC voltage (V) | 1000V | Β±(0.3%+30) |
| DC current (A) | 10A | Β±(0.08%+10) |
| AC current (A) | 10A | Β±(0.6%+20) |
| Resistance (Ξ©) | 60MΞ© | Β±(0.05%+2) |
| Admittance (nS) | 60nS | Β±(2%+10) |
| Capacitance (F) | 60mF | Β±(2%+5) |
| Frequency (Hz) | 10Hz~60MHz | Β±(0.01%+5) |
| Temperature (Β°C) | Β -40Β°C~1000Β°C | Β±(1%+30) |
| Temperature (Β°F) | Β -40Β°F~1832Β°F | Β±(1.5%+50) |
| Features | ||
| Display count | 60000 | |
| Auto/Manual range | β | |
| Bandwidth (Hz) | 100kHz | β |
| AC+DC/Continuity buzzer | β | |
| Low pass filter | 1kHz | β |
| dBV/dBm | β | |
| Diode | Around 3V | β |
| Duty cycle | 10%~90% | β |
| Dual temperature measurement | T1, T2, T1-T2, T2-T1 | β |
| Data hold/Peak hold | β | |
| Relative mode | β | |
| Data logging | 20000 | β |
| Trend capture | β | |
| MAX/MIN/AVG | β | |
| Data time display/Data comparison | β | |
| Backlight adjustment | β | |
| Analog bar graph/USB interface | β | |
| Mis-plug alarm | β | |
| Battery indication/Auto power off | β | |
| Rechargeable battery | β | |
| Input protection | β | |
| Input impedance for DCV | β₯10MΞ© | β |
| General Characteristics | ||
| Power | Li-ion battery: 7.4V 2200mAh | |
| Display | 3.5-inch 64K color TFT LCD (320 x 240) | |
| Product colour | Red and grey | |
| Product net weight | 638.6g | |
| Product size | 225mm x 103mm x 59mm | |
| Standard accessories | Battery, test leads, temperature adaptor socket, point-contact temperature probes, power adaptor socket, power adaptor, PC software CD, USB interface cable | |
| Standard individual packing | Box, carrying bag, English manual | |
