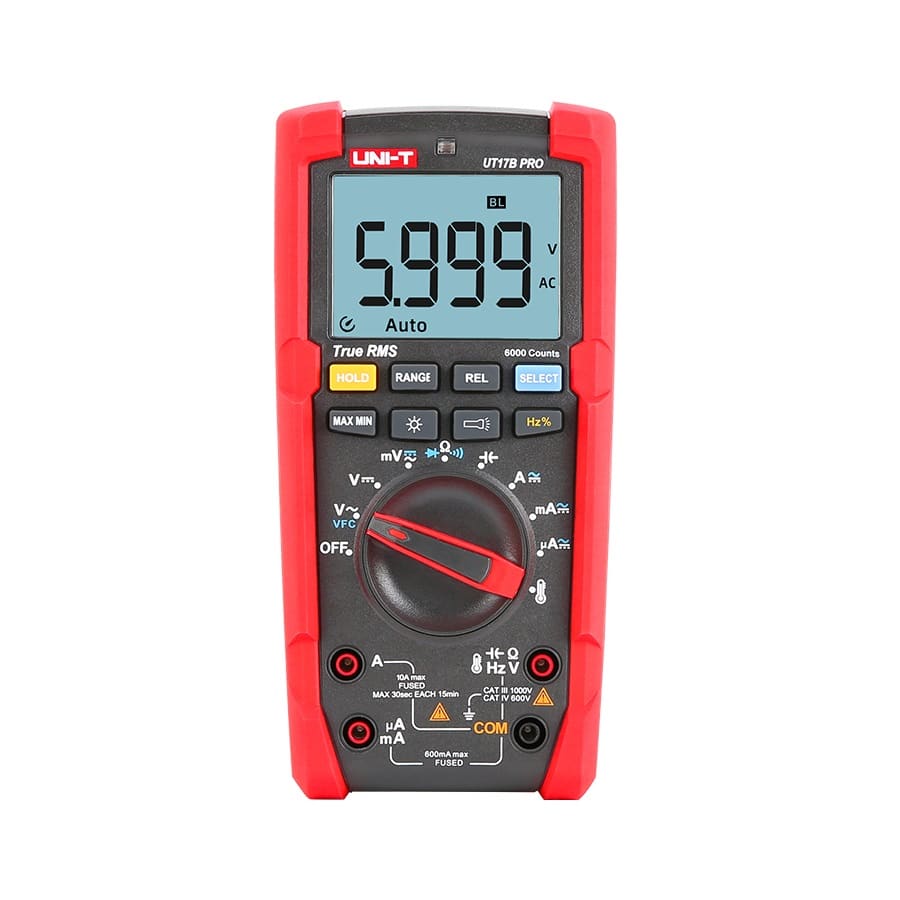

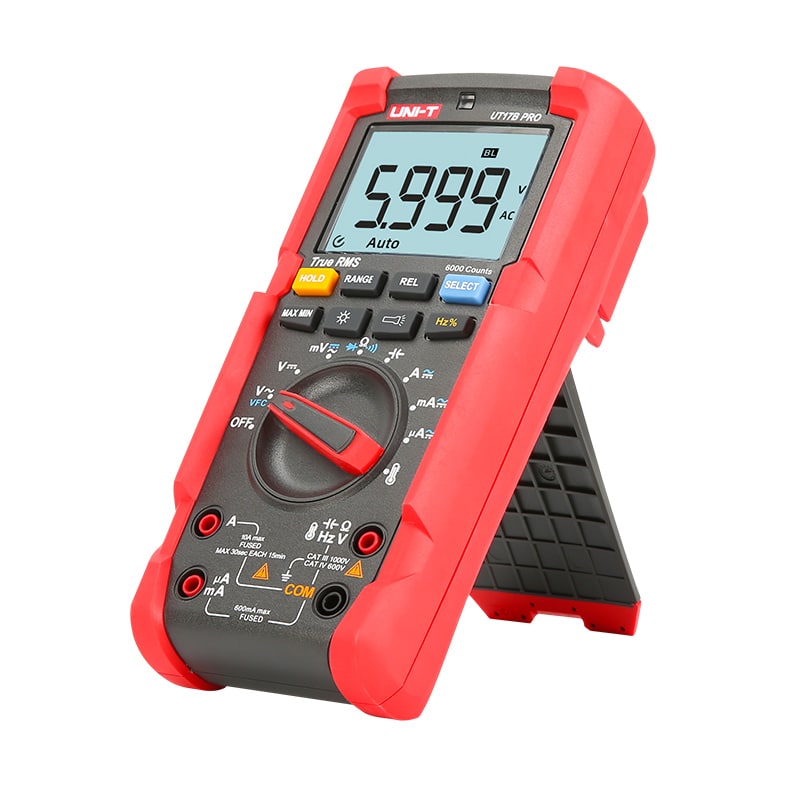

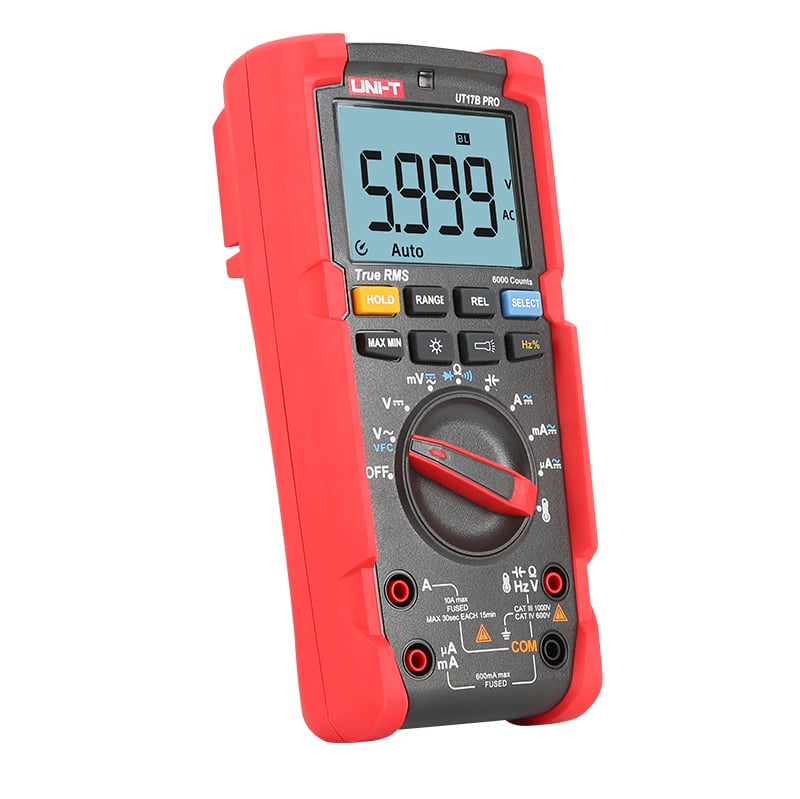

UT17B PRO is highly reliable, safe and durable true RMS multimeters with CAT III 1000V/CAT IV 600V ratings. Equipped with a built-in VFC, it can filter interference, resulting in a more accurate voltage reading.
These meters come with gold plated test leads for quick and accurate measurement. UT15B PRO/UT17B PRO also provides full range 1000V protection, as well as 8kV transient voltage protection, which can
withstand sudden high voltage shocks.
FEATURES:
- VFC
- Auto range
- Relative mode
- Flashlight
- True RMS
- Continuity test
- Diode test
- Max/Min
- Data hold
- Low battery indication
- Auto backlight
- Auto power off.
INCLUDES:
1 x UT17B-PRO, test lead, temperature probe, cloth bag, 1 x English user manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT17B PRO |
| Certifications | CE/RoHS/cETLus | |
| Safety ratings | CAT III 1000V/CAT IV 600V | |
| DC voltage (V) | 1000V | Β±(0.5%+3) |
| AC voltage (V) | 1000V | Β±(1%+3) |
| AC current (A) | 10A | Β±(1%+3) |
| DC current (A) | 10A | Β±(0.8%+3) |
| Resistance (Ξ©) | 60MΞ© | Β±(0.5%+2) |
| Capacitance (F) | 6000ΞΌF | Β±(2%+5) |
| Frequency (Hz) | 10Hz~100kHz | Β±(0.1%+3) |
| Duty cycle | 1%~99% | Β±(1%+4) |
| Temperature (Β°C/β) | Β -55β~500β/-67β~932β | Β±(2%+1) |
| Display count | 6000 | |
| AC frequency response | 40~500Hz | |
| General Characteristics | ||
| Power | 1.5V battery (LR6) x 2 | |
| Product net weight | 484g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessories | English manual, test lead, temperature probe | |
| Standard individual packing | Box, cloth bag | |
