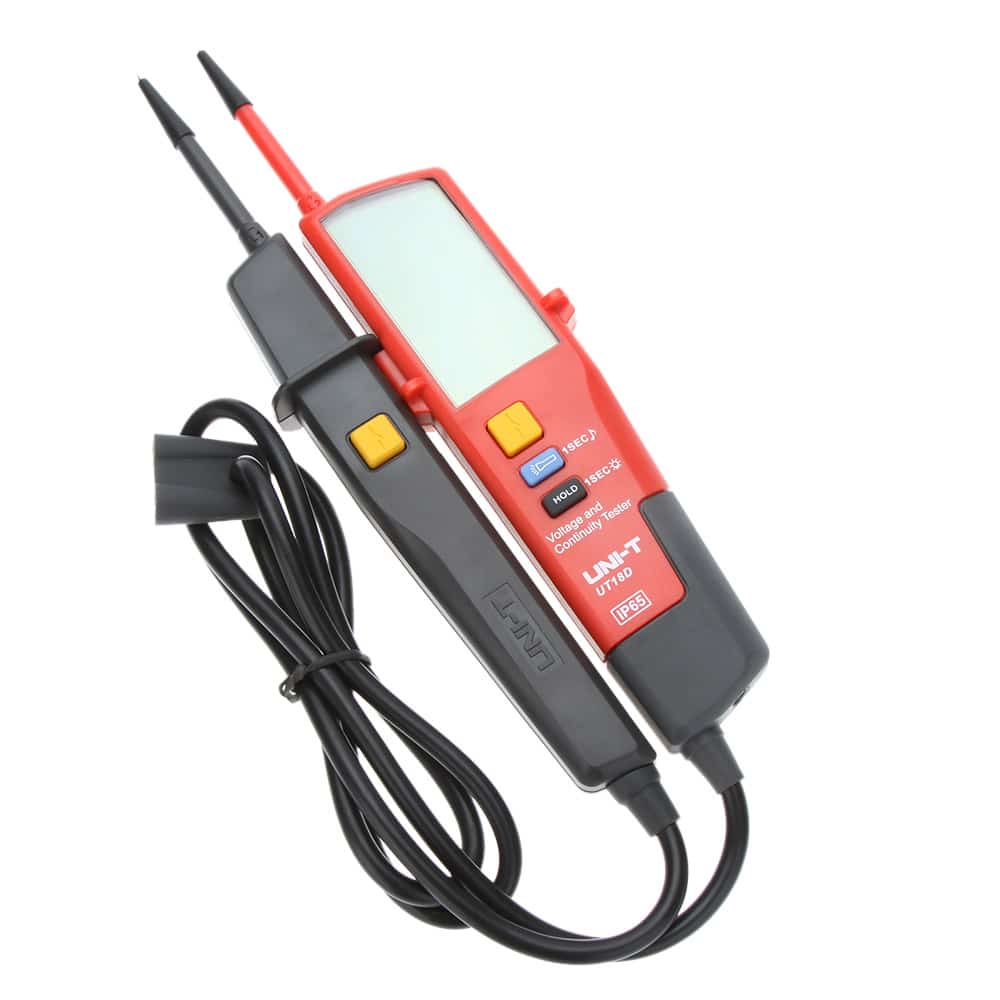

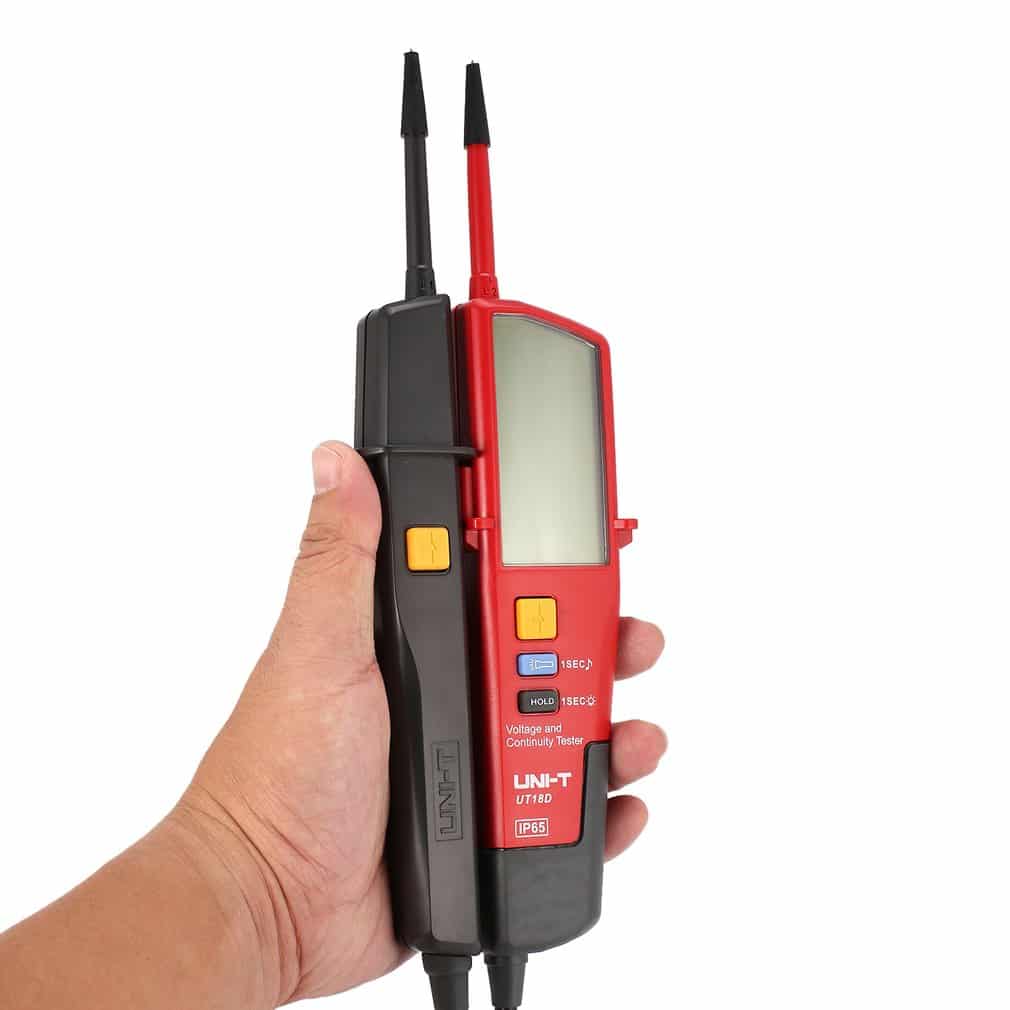

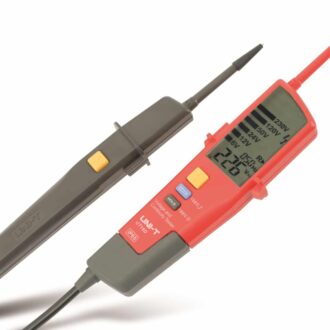

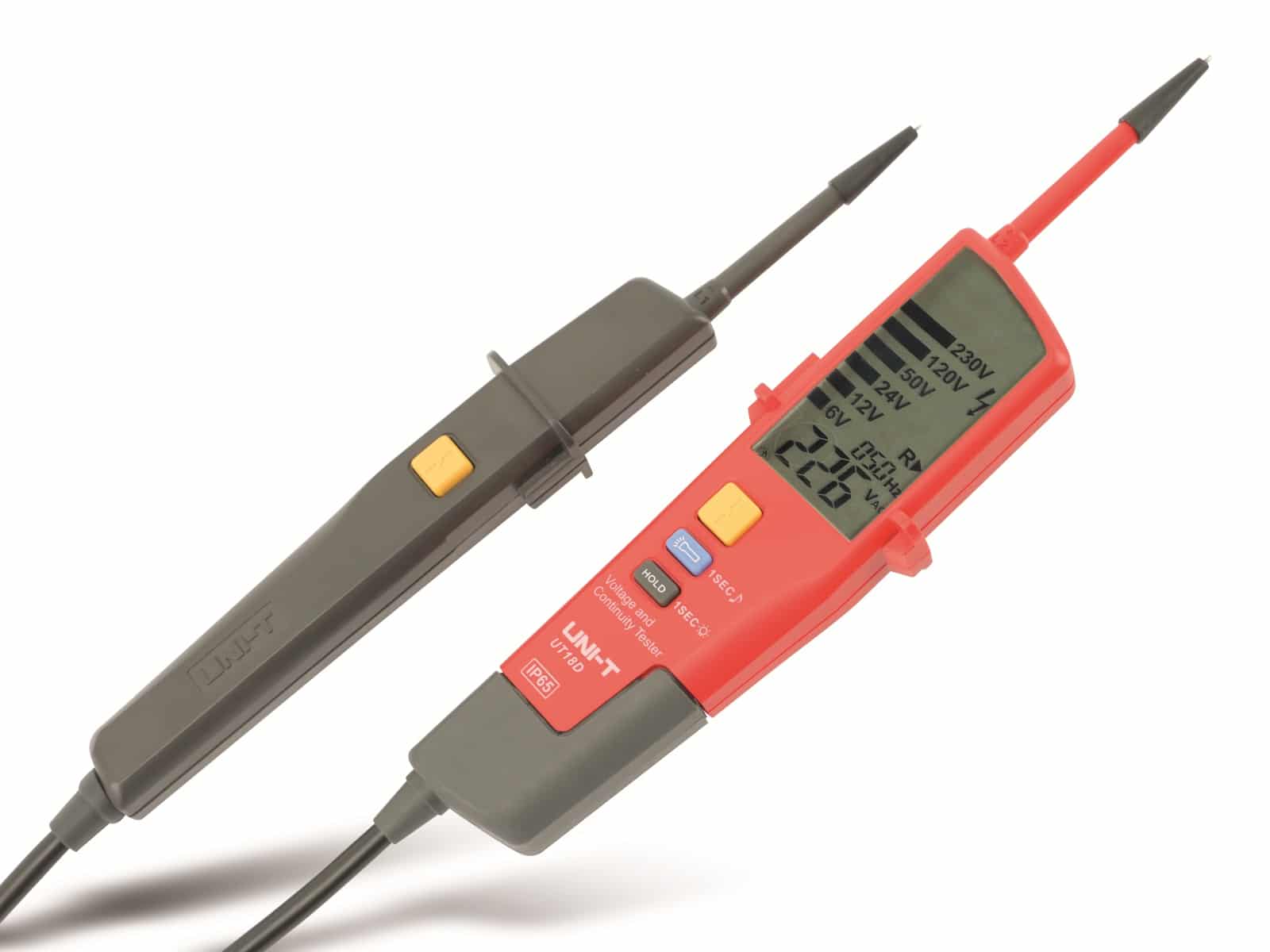

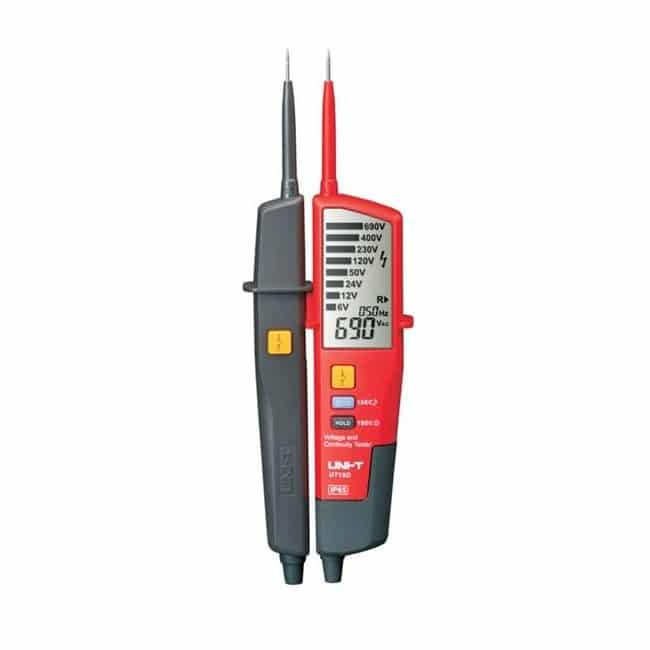

UT18D voltage and continuity tester is designed for testing AC/DC voltage, 3-phase voltage, phase sequence, continuity, and more.
This device is categorized as CAT IV 600V and meets IP65 standard. Application fields for UT18C include smelting, electronics, manufacturing, and electrical. It is a perfect tool for electricians, to quickly measure voltage levels in any harsh environments. It should NOT be used in 110V electrical systems.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT18D Voltage And Continuity Tester Features:Â
- CAT IV 600V rating

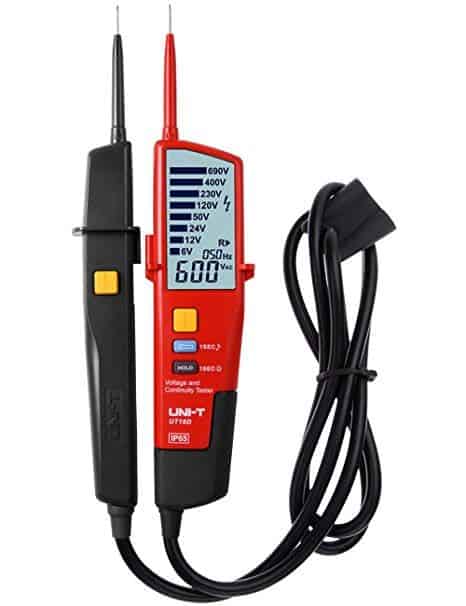

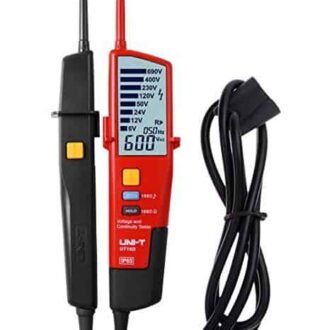

- LCD Display and analog Bar Graph
- Auto power off, the conductor to be measured is greater than 12V
- Phase rotation test
- Continuity test with buzzer and LED indication
- RCD: Detecting leakage protective switch
- Low battery Indication and over-voltage prompt
- Flashlight
- Buzzer and silent mode
- Auto standby mode
- Auto range/Inspection
- Voltage, frequency display
- LCD backlight
- Data hold
- Polarity indication
- IP65
- 12-month warranty.
UT18D Voltage And Continuity Tester Includes:
1 x UT18D, 1 x English manual, Batteries and 12-month warranty.
UT18D Voltage And Continuity Tester Specifications:Â
| Specifications | Range | UT18C | UT18D |
| Voltage (V) | 6V | 5V±1V | |
| 12V | 8V±1V | 8V±1V | |
| 24V | 18V±2V | 18V±2V | |
| 50V | 38V±4V | 38V±4V | |
| 120V | 94V±8V | 94V±8V | |
| 230V | 180V±14V | 180V±14V | |
| 400V | 325V±15V | 325V±15V | |
| 690V | 562V±24V | 562V±24V | |
| Phase rotation test | 57Vac～400Vac (3 phase) | √ | √ |
| Frequency: 50Hz~400Hz | |||
| Single lead (L2) voltage detection |
Operating voltage: 100V~690V | √ | √ |
| Frequency: 50Hz~400Hz | |||
| Continuity test | Resistance: 0Ω~100kΩ (+50% accuracy) | √ | √ |
| Beeper and LED light indication | |||
| RCD test | Operating voltage: 230V (50Hz~400Hz) | √ | √ |
| Polarity detection | Positive & Negative | √ | √ |
| Self-inspection | All LED or LCD | √ | √ |
| No power test | Operating voltage: 100~690V | √ | |
| Features | |||
| Voltage indication | LED | LCD | |
| Exceed voltage | Voltage range: 713V~788V | √ | √ |
| Auto standby | Standby current＜10μA | √ | √ |
| Silent mode | All range | √ | √ |
| Work light | √ | √ | |
| Low battery indication | Around 2.5V | √ | √ |
| LCD backlight | √ | ||
| LCD display (voltage) | 6V~690V | ±(1.5%+5) | ±(1.5%+5) |
| LCD display (Frequency) | 40Hz~400Hz | ±(3%+5) | ±(3%+5) |
| IP65 | √ | √ | |
| General Characteristics | |||
| Power | 1.5V battery (R03)×2 | ||
| Display | UT18C: 31mm x 20mm; UT18D: 73.5mm x 35.5mm | ||
| Product colour | Red and grey | ||
| Product net weight | 280g | ||
| Product size (W x H x D) | 272mm x 85mm x 31mm | ||
| Standard accessories | Batteries | ||
| Standard individual packing | Blister, English manual | ||
