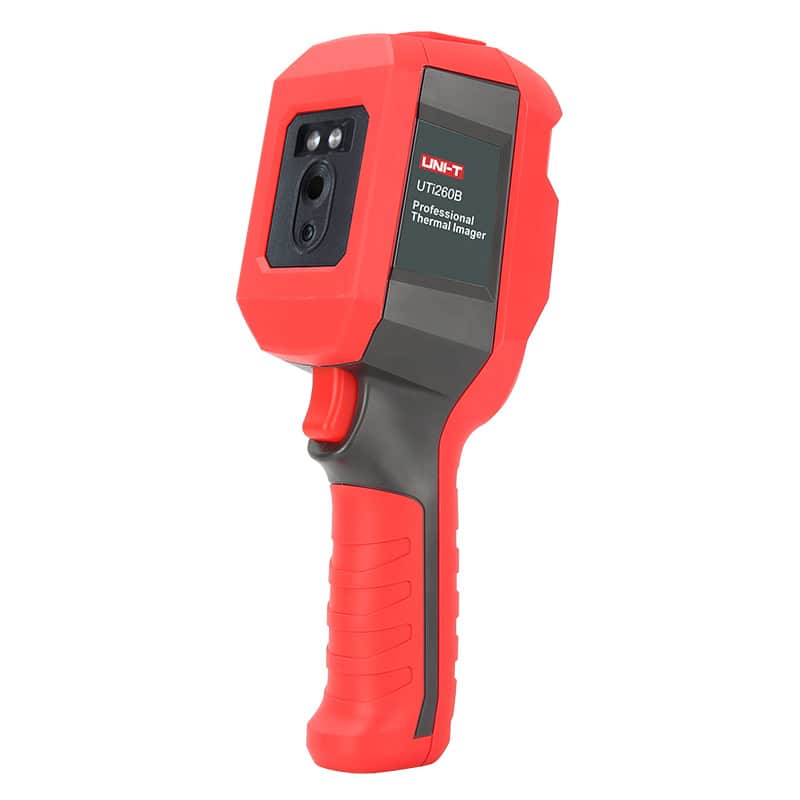

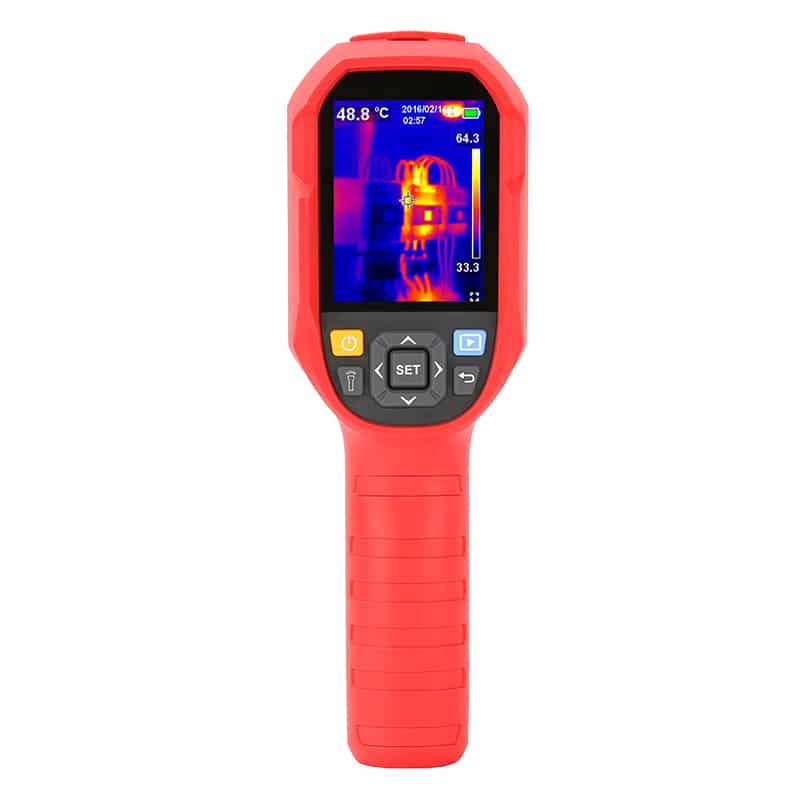

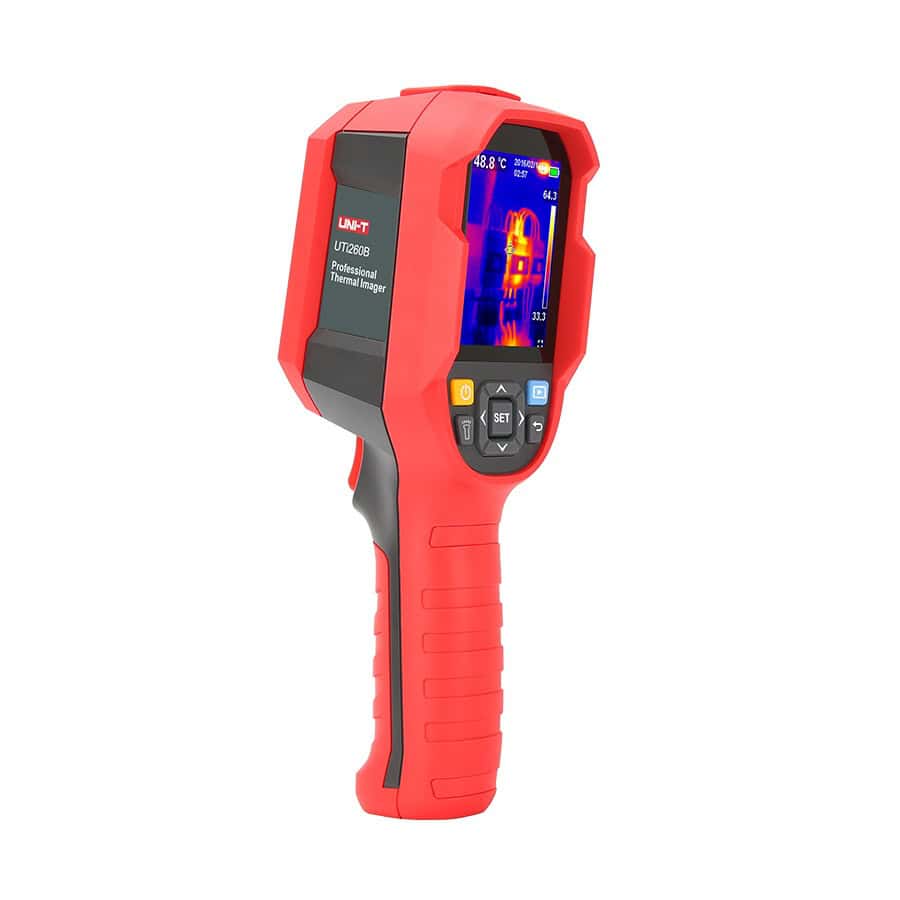

Uni-T UTi260B Thermal Imager -15℃~550℃

UTi260B is an infrared -15℃~550℃ thermal imager that combines surface temperature measurements with real-time thermal images.

Suitable for power, HVAC equipment maintenance, electronic power/automotive manufacturing, construction, energy, chemical industries.

$849.99 + GST

Available on backorder

Everyday Low Trade Price
Free Delivery Within New Zealand*
30 Day Hassle Free Returns
SKU: UTi260B Categories: ,

UTi260B is an infrared thermal imager that combines surface temperature measurements with real-time thermal images, which are clearly displayed on the screen by the thermal imager.

The infrared lens has a -15 ℃~550 ℃ temperature range, the thermal imaging is 256 x 192 pixels (49152) which are designed to detect abnormal temperature points easily. Take a photo and store it on your Memory card then you can use PC software for image analysis and processing to generate reports, and equipped with PC software real-time screen projection function, with IP65 protect level this thermal imager is also drop-proof up to 2 meters.

UTi260B THERMAL IMAGER FEATURES:

  • 2.8″ TFT screen
  • Infrared resolution: 80 x 60 to 256 x 192
  • Temperature measurement range: -15℃~550℃
  • Photograph function with SD card storage
  • PC analysis software
  • Buzzer/flashlight alarm
  • Real-time image transmission
  • Auto capture of Hi/Low temperature
  • Flashlight
  • 1/4″ tripod mounting hole
  • IP65/2m drop-proof.

UTi260B THERMAL IMAGER INCLUDES:

1 x UTi260B, Type-C USB cable, 16GB TF card, and 12-month warranty.



UTi260B THERMAL IMAGER SPECIFICATIONS:



ModelUTi260B
CertificationsCE/RoHS
Temperature range -15~550℃
IR resolution256×192 pixel
Field of view (FOV)56°x 42°
Thermal sensitivity (NETD)50mk
Spatial resolution (IFOV)3.8mrad
Frame rate25Hz
Measurement accuracy±2℃ or ±2% whichever is greater
Palettes7
EmissivityAdjustable (0.01-1)
FocusFocus free
Display modesThermal, blending, visible, PIP
Display2.8” LCD
ROI (eliminates interference)
PowerLi-ion battery (3.6V 5000mAh)
Product net weightAround 910g
Product net size236mm x 75.5 mm x 86mm
Standard accessoriesMicro 16GB SD card, Type-C USB cable, English manual

Documents

UTi260B Thermal Imager English Manual
