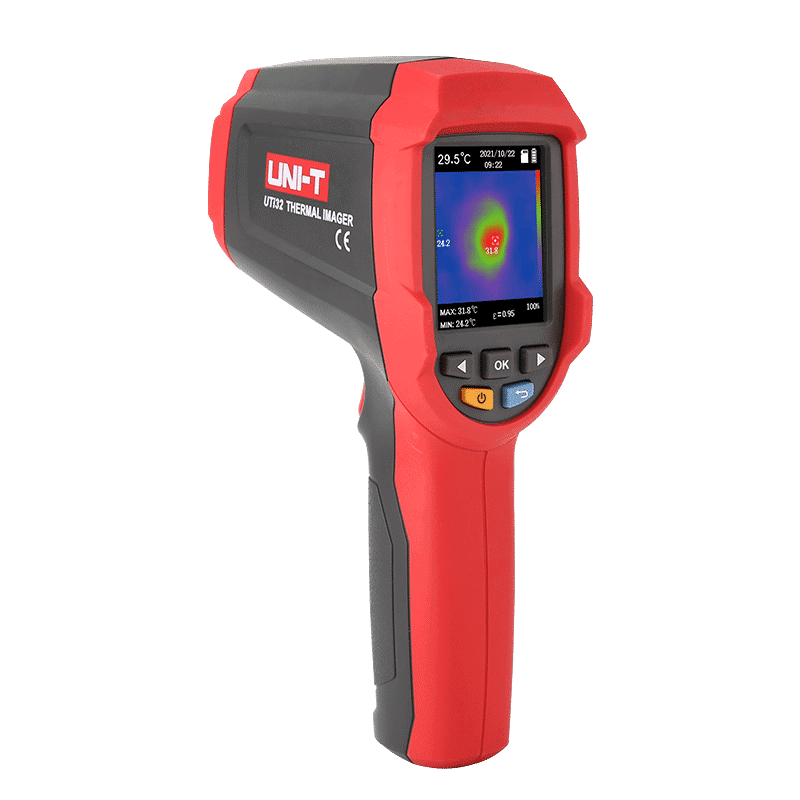

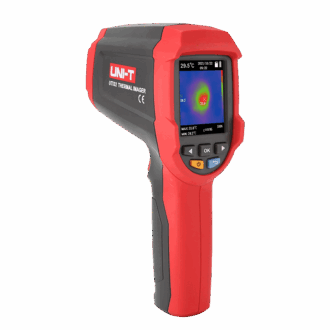

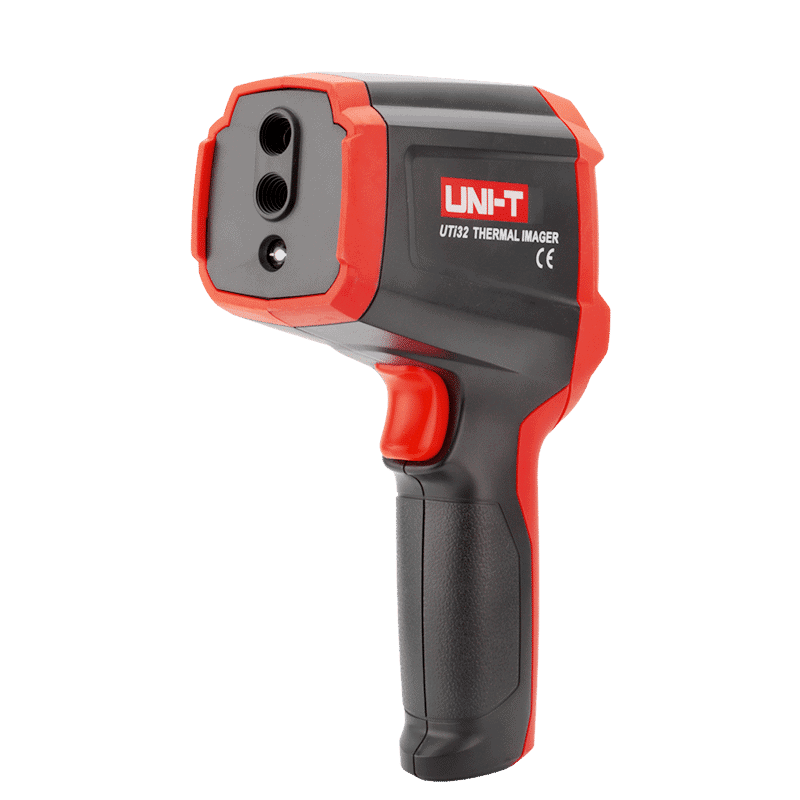

UTi32 is a high temperature thermal camera that specially designed for higher temperature applications，such as: iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ and auto tracking and alarm for high/low spot. UTi32 is a portable and lightweight thermal imager with 300000 pixels digital camera, with three image modes: thermal, visual image, fusion, and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.
Features:
- Temperature range: -20℃~1000℃ / -4℉ ~1832℉
- IR resolution: 32×32
- Display: 2.4″ IPS (480*320)
- Digital camera resolution: 640×480
- Image modes: Thermal,visual image,fusion
- Auto tracking and alarm for high/low spots
- Portable and lightweight
- More than 7 hours battery operation time
- With LED light
Specifications:
| Technical Data | |
| IR resolution (Pixels) | 32×32 |
| Display | 2.4″ IPS (480×320) |
| Field of view(FOV) | 30°×30° |
| Thermal sensitivity(NETD) | 0.15℃ |
| Frame rate | ≤9Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Temperature measurement range | -20℃ ~ 1000℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 3 (Ironbow, Rainbow, Black hot) |
| Image modes | Thermal,Visual image,Fusion |
| Digital camera resolution | 640×480 |
| Hi/Lo temperature alarm | Icon |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.7V 2600mAh) |
| Battery operation time | ≥7 hours |
| USB | Type-C |
| Storage | 16G Mirco SD card |
| Image/Video storage format | BMP |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 301g |
| Product size | 205mmx124mmx65mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, English manual, Documents Download Operation Guide |
| Standard individual packing | Gift box |
| Standard Qty per carton | 5 |
| Standard carton size | 500mm×275mm×190mm |
| Standard carton G.W. | 4Kg |
