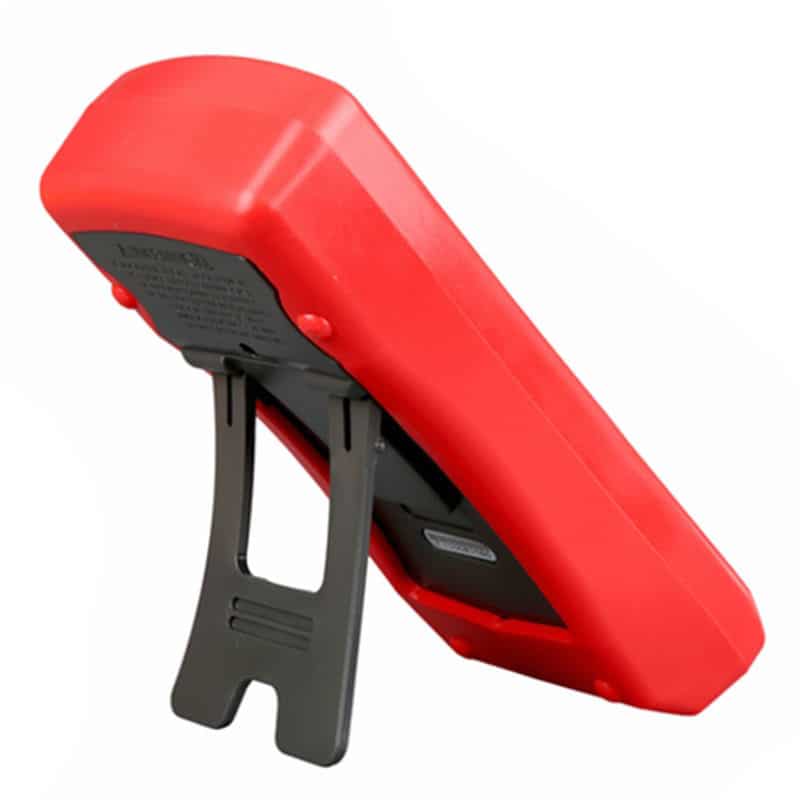

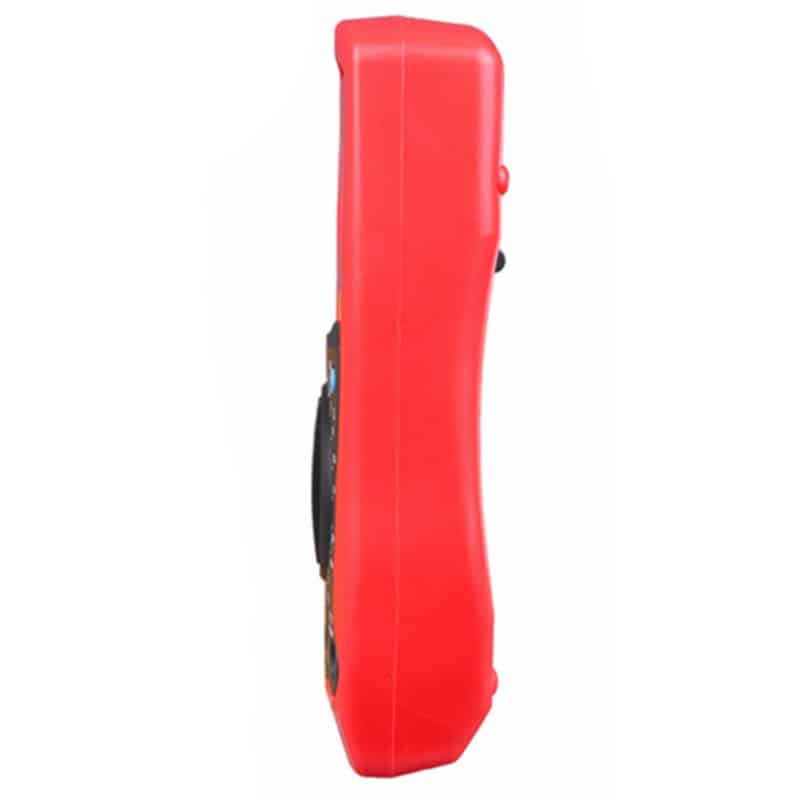

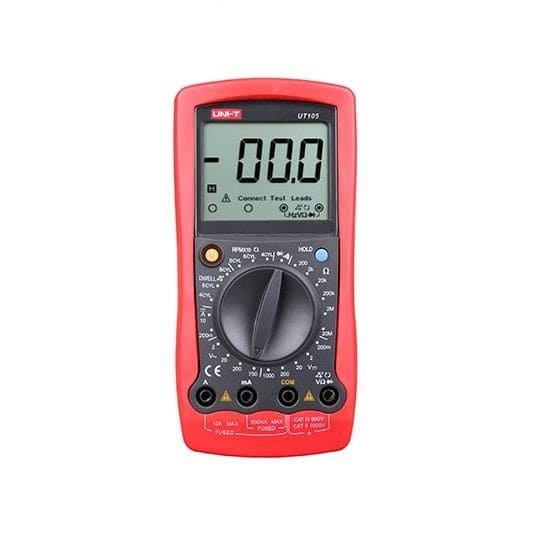

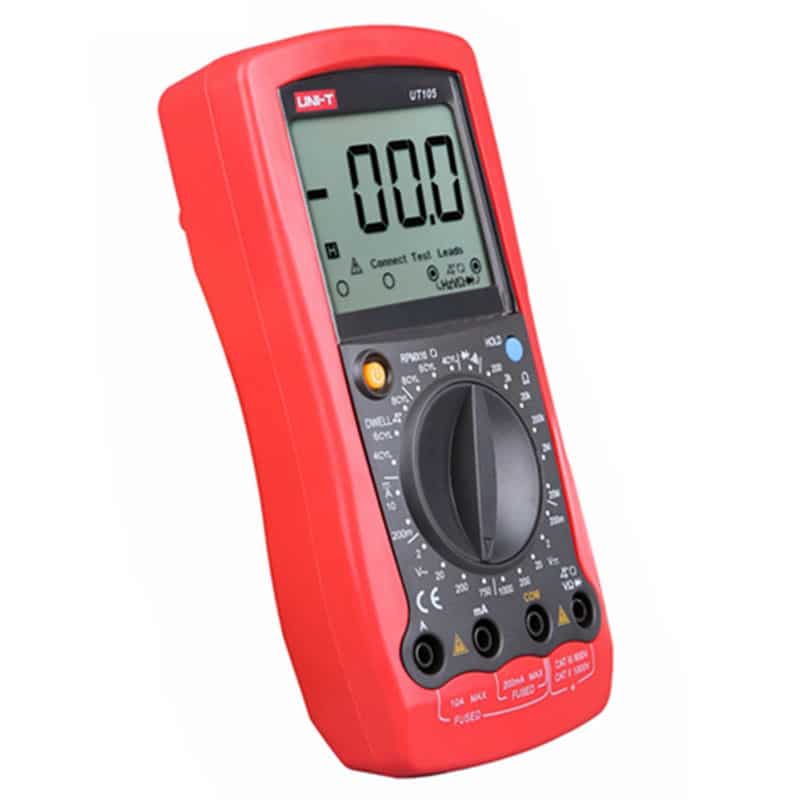

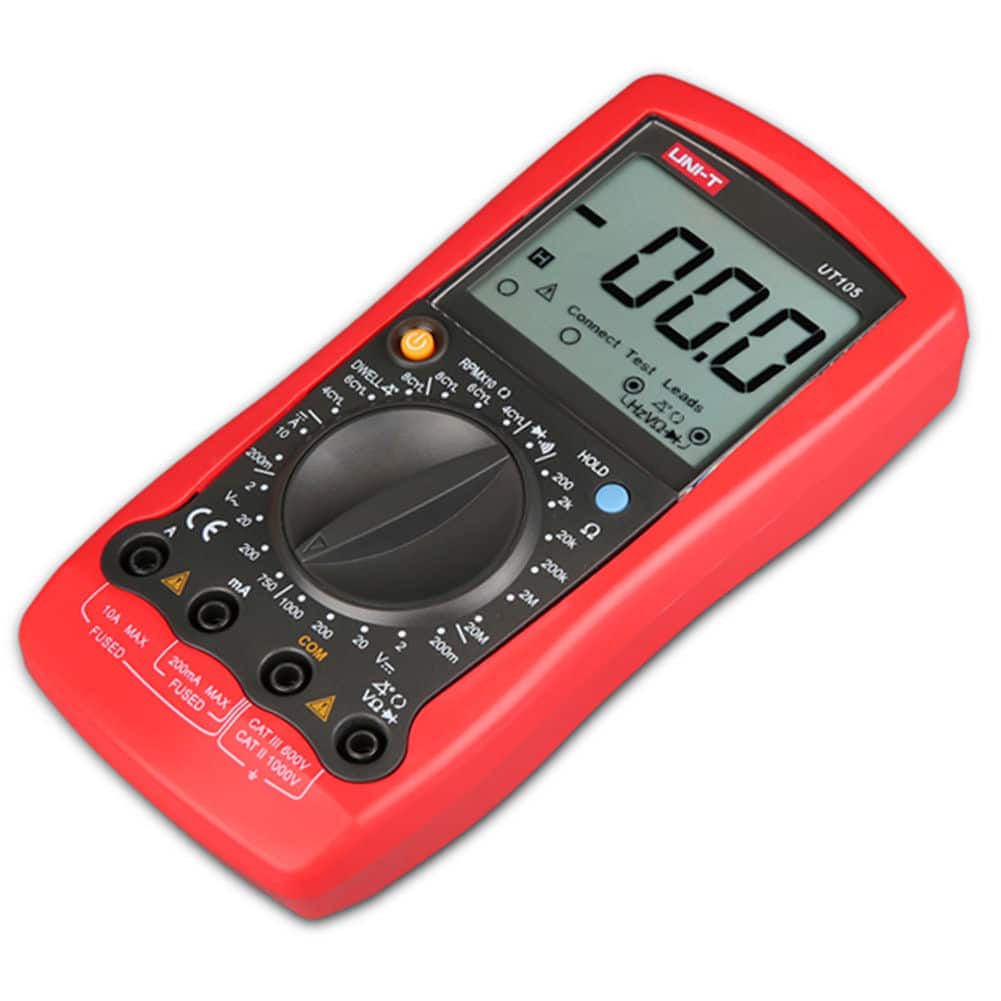

UNI-T’s UT105 is an LCD handheld digital multimeter with 2000 display count, featuring AC/DC voltage, Tach and Dwell test which provides large LCD screen, fully functional display symbols and input connection prompt, totally over-load protection and unique structural design. It is specially designed for engineering & automotive.
UNI-T UT105 offers users better performance and higher safety rating. Applications: AC/DC voltage, DC current, resistance, diode, circuitry, rotate speed and dwell angle.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT105 LCD Handheld Automotive Multimeter Features:
- CAT III 600V / CAT II 1000V rating
- Input notification for reducing misplugging risks
- Low battery indication, over-range display
- Data hold; diode/continuity buzzer
- Dwell: Measure the dwell angle of points-type ignition systems
- RPM: Measure engine spindle rotation per minute
- 12-month warranty.

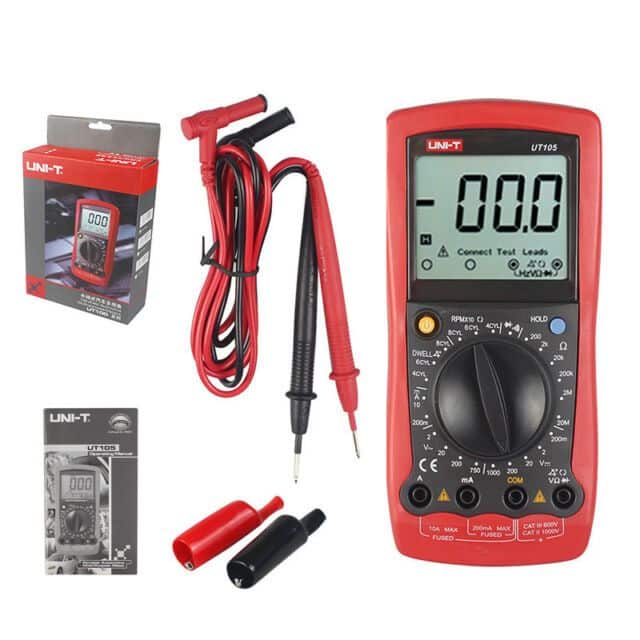

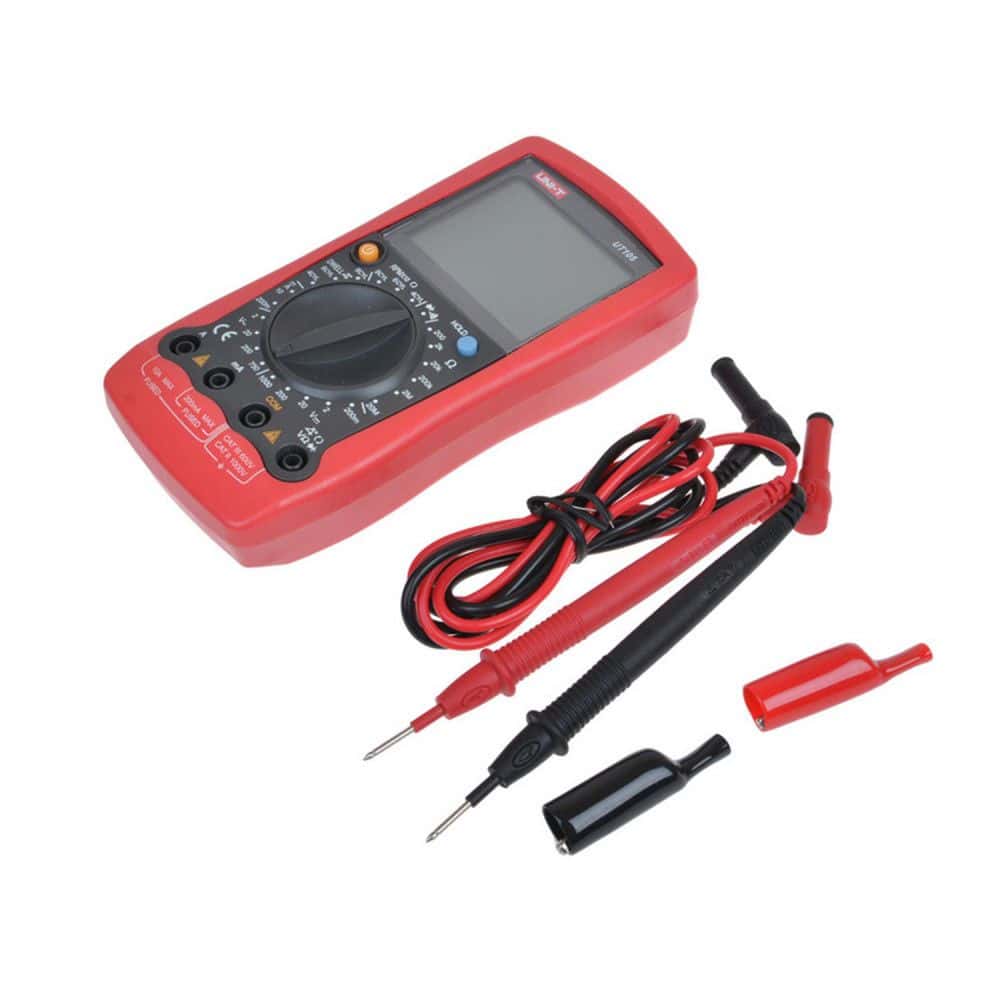

UT105 LCD Handheld Automotive Multimeter Includes:
1 x UT105, 1 x English user manual, 1 x Batteries and 12-month warranty.
UT105 LCD Handheld Automotive Multimeter Specifications:
| Specifications | Range | Best Accuracy |
| Model | UT105 | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+5) |
| AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+5) |
| DC Current (A) | 200mA/10A | ±(0.8%+5) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+5) |
| Features | ||
| Display Count | 2000 | |
| Manual Range | √ | |
| Battery Test | 12V | |
| Duty Cycle | 1%-90% | |
| Diode | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Input Protection | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| Dwell | 4CYL/6CYL/8CYL | ±(3%+5) |
| Tach | 4CYL/6CYL/8CYL | ±(3%+5) |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 60mm X 54 mm | |
| Product Color | Red and grey | |
| Product Net Weight | 351g (Including holster) | |
| Product Size | 179mm X 88mm X 39mm | |
