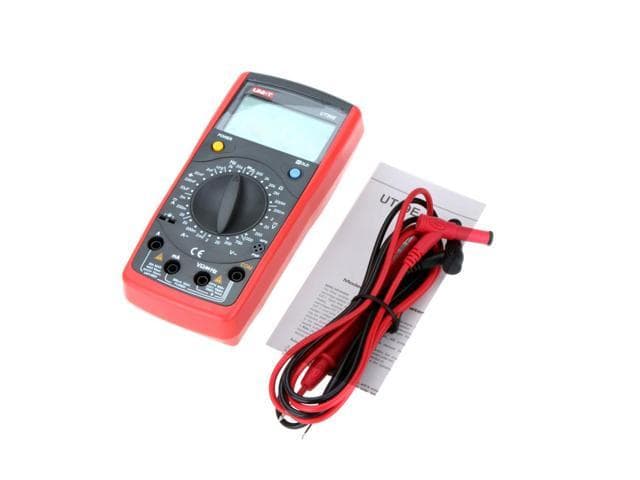

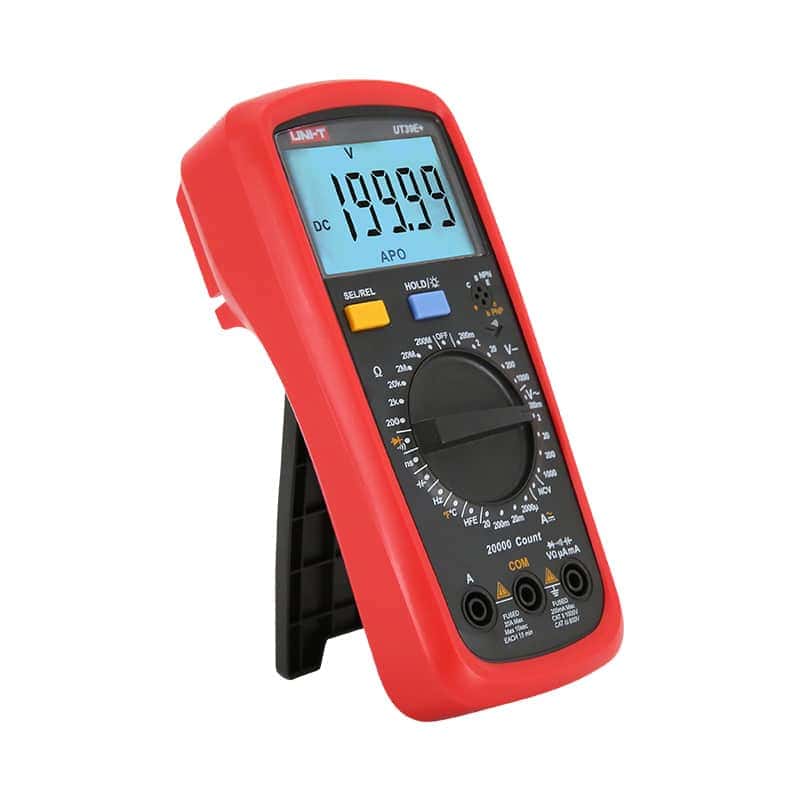

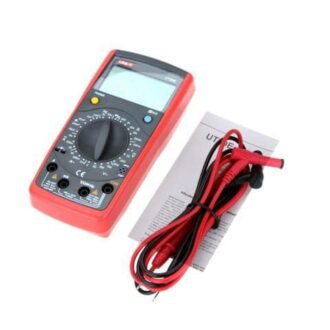

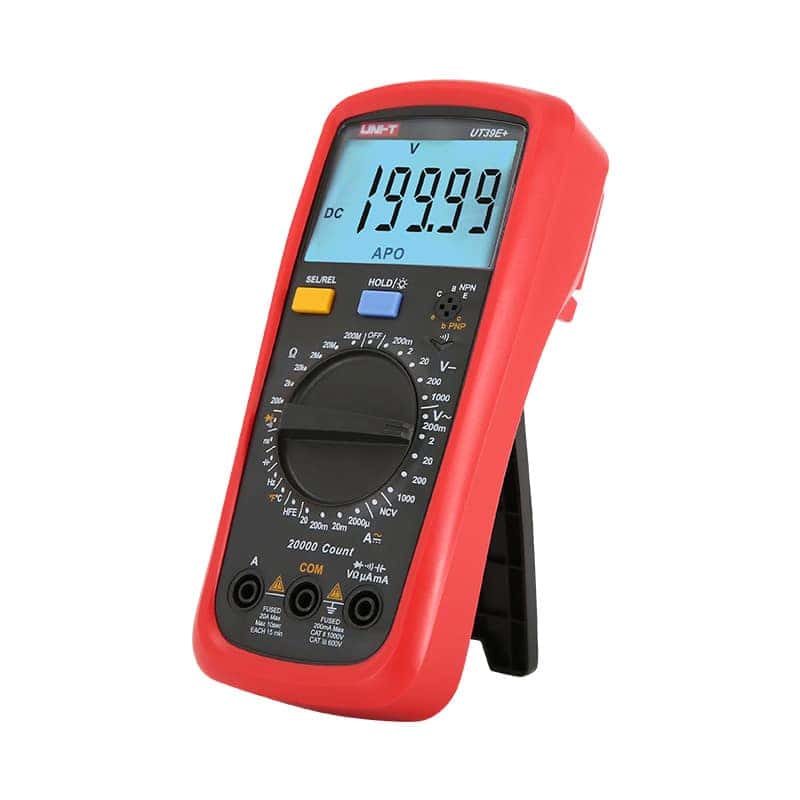

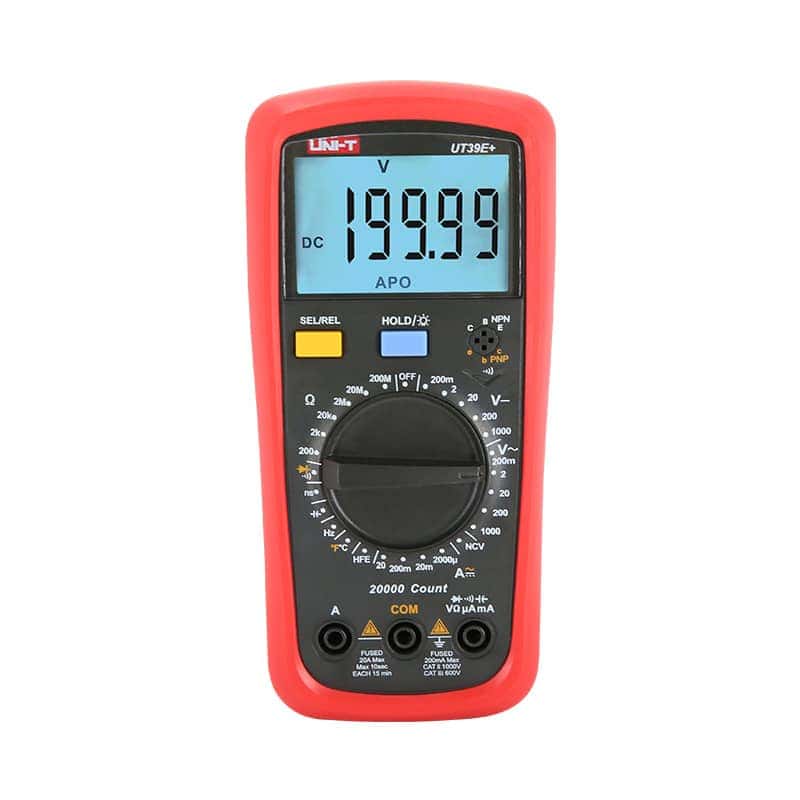

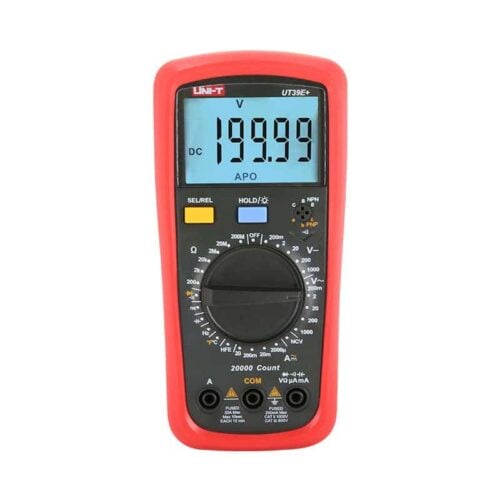

The UNI-T Standard Digital Multimeter Tester UT39E is a feature-rich digital multimeter complete with plug-in lead and holster, able to test AC/DC voltage, DC current and resistance.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
Features
- CAT I 1000V / CAT II 600V rating
- Functions:
– AC/DC current and voltage
– resistance
– capacitance
– frequency
– continuity test (with buzzer)
– diode test
– transistor test - Data Hold function
- Manual ranging
- Sleep mode
- Low battery indication
- 12-month warranty.
Includes
- 1 x UT39E+
- 1 x English user manual
- Batteries
- Test Leads
- 1 x Temperature Probe
- 1 x Rubber Case and 12-month warranty.
Specifications
| Range | Best Accuracy | |
| Model | γ | UT39E |
| DC voltage | 200mV/2V/20V/200V/1000V | Β±(0.05%+3) |
| AC voltage | 2V/20V/200V/750V | Β±(0.5%+10) |
| DC current | 2mA/200mA/20A | Β±(0.5%+5) |
| AC current | 2mA/200mA/20A | Β±(0.8%+10) |
| Features | ||
| Max display | 19999 | |
| Manual range | β | |
| Diode test | β | |
| Buzzer Β Β continuity | β | |
| Transistor | β | |
| Data hold | β | |
| Auto power off | β | |
| Low battery indication | β | |
| Input Β Β protection | β | |
| Input impedance for DCV | Β Around 10MΞ© | β |
| General Characteristics | ||
| Power | 9V NEDA 1604/6F22/006P | |
| Standard accessories | Test leads, battery, rubber case, English manual, point contact temperature | |
| Product size | 172Γ83Γ38mm | |
| Product weight | 310g (battery included) | |
