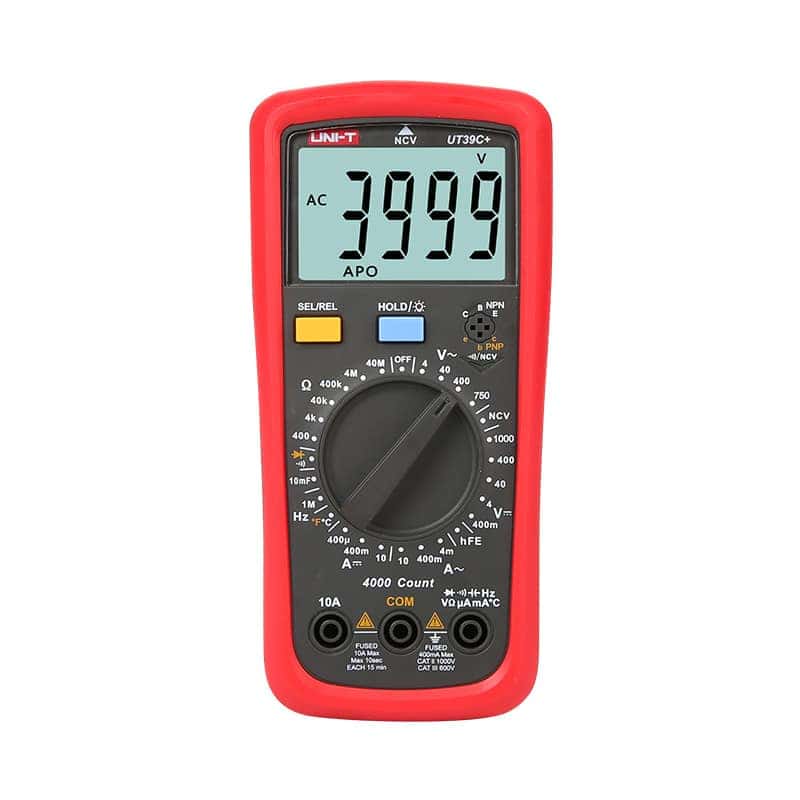

UT39C+ modern digital multimeter is portable device designed for the electrical industry. They feature overvoltage and overcurrent alarms and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with its temperature measurement feature. Designed according to CAT II 1000V/CAT III 600V safety standards.
Features
- 1000V DC voltage measurement
- 750V AC voltage measurement
- 10A DC/AC current measurement
- Resistance/Capacitance
- hFE
- Diode/Continuity test.

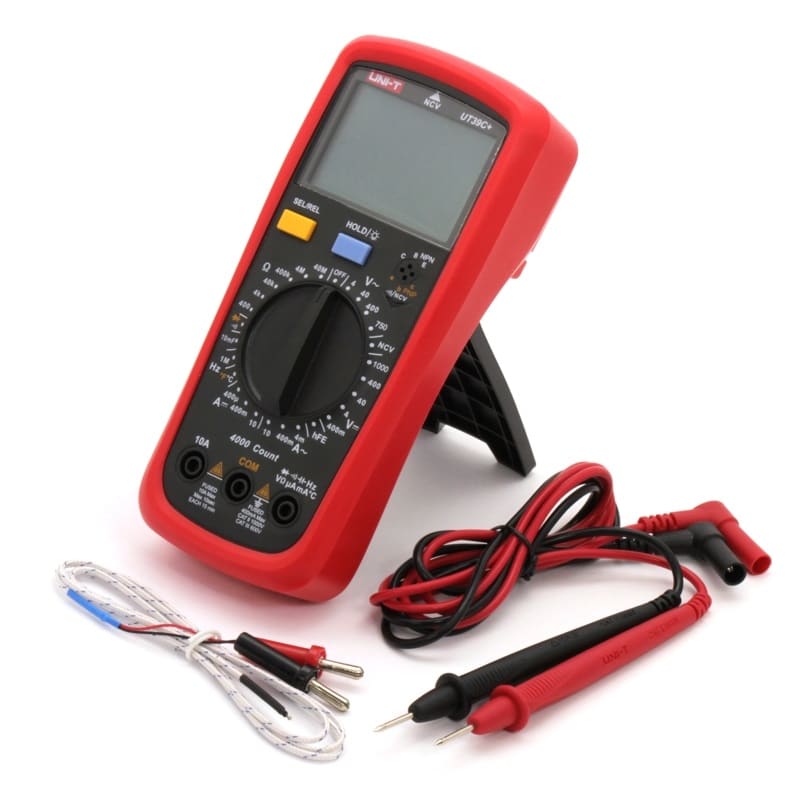

Includes
- 1 x UT39C+
- Test leads
- temperature probe
- English manual and 12-month warranty.
| Specifications | Range | UT39C+ | UT39E+ |
| Category ratings | CAT II 1000V, CAT III 600V | ||
| DC voltage (V) | 400mV/4V/40V/400V/1000V | Β±(0.5%+5) | |
| 200mV/2V/20V/200V/1000V | Β±(0.05%+3) | ||
| AC voltage (V) | 4V/40V/400V/750V | Β±(0.8%+3) | |
| 200mV/2V/20V/200V/1000V | Β±(0.5%+10) | ||
| DC current (A) | 40ΞΌA/400ΞΌA/4mA/40mA/400mA/10A | ||
| 400ΞΌA/400mA/10A | Β±(0.8%+3) | ||
| 2000uA/20mA/200mA/2A/20A | Β±(0.5%+5) | ||
| AC current (A) | 40mA/400mA/10A | ||
| 4mA/400mA/10A | Β±(1%+2) | ||
| 2000uA/20mA/200mA/2A/20A | Β±(0.8%+10) | ||
| Resistance (Ξ©) | 400Ξ©/4000Ξ©/40kΞ©/400kΞ©/4MΞ©/200MΞ© | ||
| 400Ξ©/4000Ξ©/40kΞ©/400kΞ©/4MΞ©/40MΞ© | Β±(0.8%+2) | ||
| 200Ξ©/2kΞ©/20kΞ©/2MΞ©/20MΞ©/200MΞ© | Β±(0.3%+2) | ||
| Capacitance (F) | 10mF | Β±(4%+5) | |
| 2000uF | Β±(4%+20) | ||
| Frequency (Hz) | 10Hz~1MHz | Β±(0.1%+4) | |
| 10Hz~2MHz | Β±(0.1%+3) | ||
| Temperature | Β -40β~1000β | Β±(1%+4) | Β±(1%+5) |
| Β -40β~1832β | Β±(1.5%+5) | Β±(1.5%+5) | |
| Conductance (nS) | 0.1~100nS | Β±(1%+3) | |
| Display count | 4000 | 20000 | |
| NCV | β | β | |
| General Characteristics | |||
| Power | 1.5V AAA battery (R03) x 2 | ||
| Display | 56.5mm x 36mm | ||
| Product net weight | 330g | ||
| Product size | 175mm x 83mm x 53mm | ||
| Standard accessories | Test leads, temperature probe (UT39C+/E+), English manual | ||
| Standard individual packing | Β Box | ||
