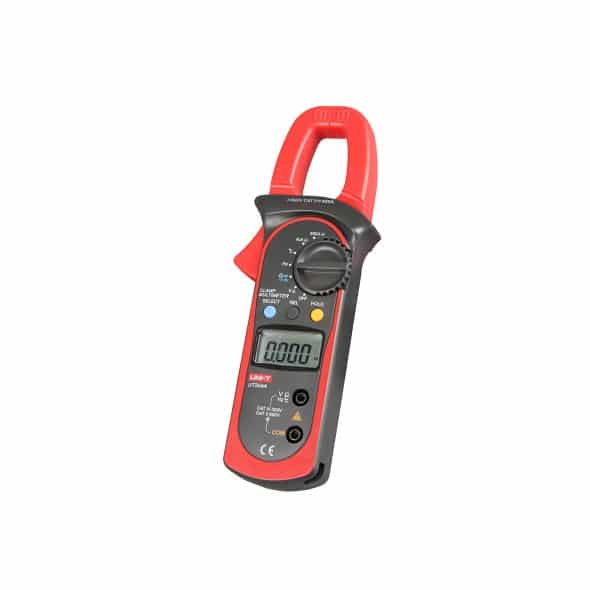

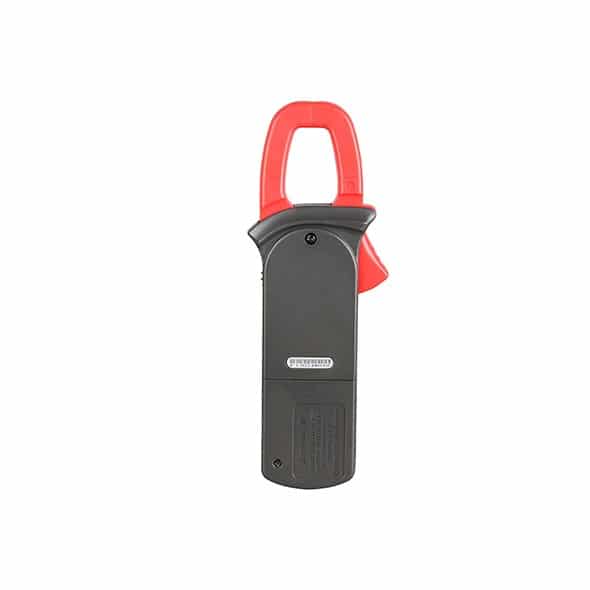

UNI-T’s UT204+ is a 600A auto range digital clamp meter with temperature and capacitance measurement function.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT204+ 600A AC Auto Range Digital Clamp Meter Features:
- CAT II 600V / CAT III 300V rating
- Auto range
- Data hold/auto power-off
- MAX mode
- K-type temperature probe
- 3/s sampling rate
- Low battery prompt, over-range prompt and auto polarity display
- 12-month warranty.
UT204+ 600A AC Auto Range Digital Clamp Meter Includes:
1 x UT204+, 1 x Battery, 1 x Test Lead, 1 x Carrying Bag, 1 x Point Contact Temperature Probe, 1 x English user manual, and 12-month warranty.
UT204+ 600A AC Auto Range Digital Clamp Meter Specifications:
| Specifications | ||
| Model | UT204+ | |
| AC Current (A) | 40A/600A | ±(2.5%+5) |
| DC Current (A) | 40A/600A | ±(2%+5) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | ±(4%+3) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.5%+3) |
| Temperature (°C) | -40 °C~1000°C | ±(2.5%+3) |
| Features | ||
| Display Count | 3999 | |
| Auto Range | √ | |
| Jaw Capacity | 28mm | |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| MAX Mode | √ | |
| Setup | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristics | ||
| Power | 9V Battery (6F22) | |
| LCD Size | 35.6mm x18mm | |
| Product Net Weight | 260g | |
| Product Size | 208mm X 76mm X30mm | |
| Standard Accessories | Battery, Test Lead, Carrying Bag,
Point Contact Temperature Probe |
|
| Standard Individual Packing | Â Box, English Manual | |
