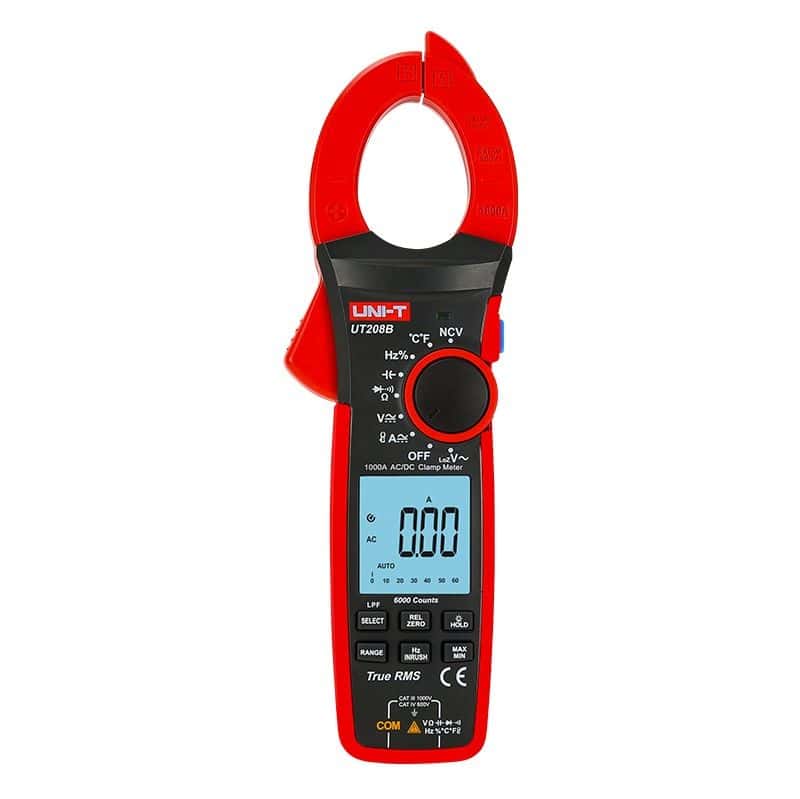

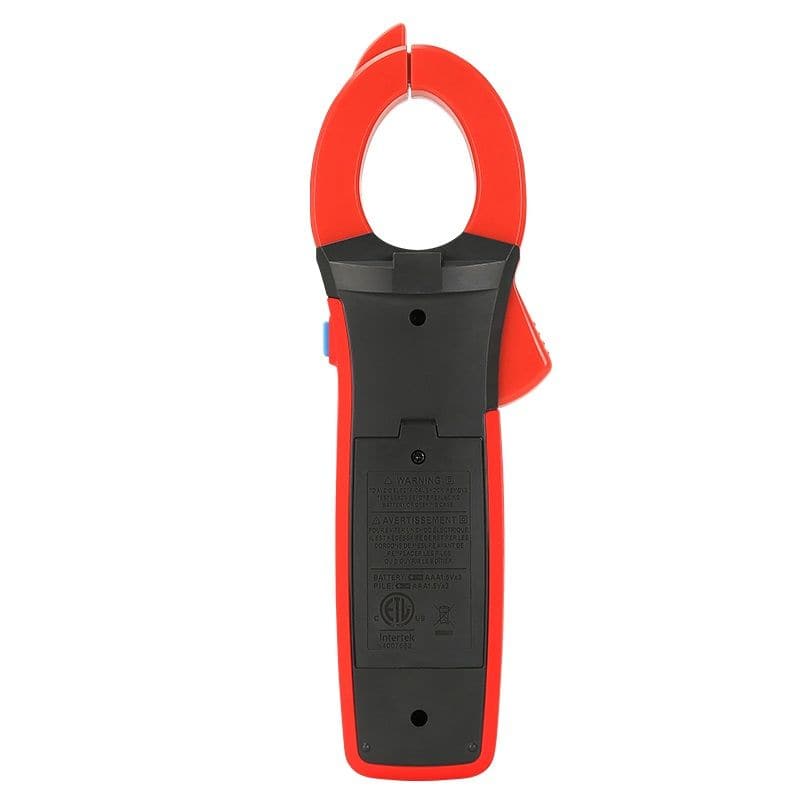

Uni-T UT208B True RMS Digital Clamp Meter

UT208B Clamp Meters are 42mm Jaw  6000-count digital clamp meters with auto-range, large LCD, true RMS, autoscale memory, and NCV functions.

$209.99 + GST

Availability: In stock

Everyday Low Trade Price
Free Delivery Within New Zealand*
30 Day Hassle Free Returns

They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT206B, UT207B, and UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. The  UT208B also features high-precision temperature measurement with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.

Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.

UT208B True RMS Digital Clamp Meter Features:

  • CAT II 600V / CAT III 300V rating
  • AC/DC readings
  • Continuity test and Frequency
  • Auto / Manual Range
  • Analog bar graph (31)
  • True RMS
  • Zeroing function
  • Data hold function
  • Sleep mode
  • Low battery display
  • Display backlight
  • 42 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Auto power off and low battery indication
  • Temperature measurement -40~1000℃
  • Inrush current (A)
  • Flashlight button.

UT208B True RMS Digital Clamp Meter Includes:

1 x UT208B, Test leads, Batteries, Point contact temperature probe, 1 x English user manual and 12-month warranty.

UT208B True RMS Digital Clamp Meter Specifications:

Specifications Range UT208B
AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
AC current frequency response 40Hz~400Hz
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 6V ±(1.2%+3)
60V/600V/1000V ±(1%+8)
DC voltage (V) 600mV ±(0.8%+3)
6V/60V ±(0.5%+5)
600V ±(0.5%+5)
1000V ±(0.5%+5)
Low pas filter (LPF ACV) 600V/1000V ±(2%+5)
AC voltage frequency response 40Hz~400Hz
LoZ ACV 600V/1000V ±(2%+5)
Resistance (Ω) 600Ω ±(1%+3)
6KΩ/60KΩ/600KΩ ±(1%+2)
6MΩ/60MΩ ±(2%+8)
Capacitance (F) 60nF ±(4%+25)
600nF/6μF/60μF/600μF ±(4%+5)
6mF/60mF ±(10%+9)
Temperature (℃) -40℃~300℃ ±(1%+20)
300℃~1000℃ ±(1%+2)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Features
Display count 6000
Jaw opening 42mm
Current frequency 50Hz~60Hz
High voltage frequency 40Hz~400Hz
Analog bar 31
Auto power off
Continuity test
Auto/Manual range
Low battery indication
Diode test
Relative mode/Data hold
MAX/MIN
Function selection
Flashlight
Wake-up function
Auto power off current: <50μA
Flexible current probe (optional) Extends to 3000A
Zero mode
Input impedance (ACV/DCV) ≥10MΩ
General Characteristics
Power 1.5V battery (R03) x 3
Display 43mm x 45mm
Product colour Red and grey
Product net weight  420g
Product size 272mm x 81mm x 43.5mm
Standard accessories Test leads, batteries, point contact temperature probe
Standard individual packing Box, carrying bag, English manual

Documents

UT208B 1000A True RMS Digital Clamp Meter English Manual

UT208B 1000A True RMS Digital Clamp Meter Product Flyer
