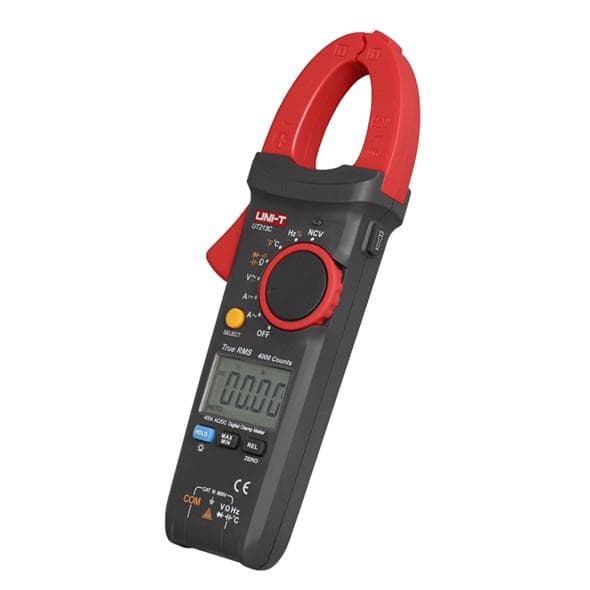

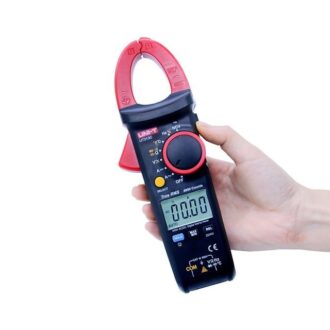

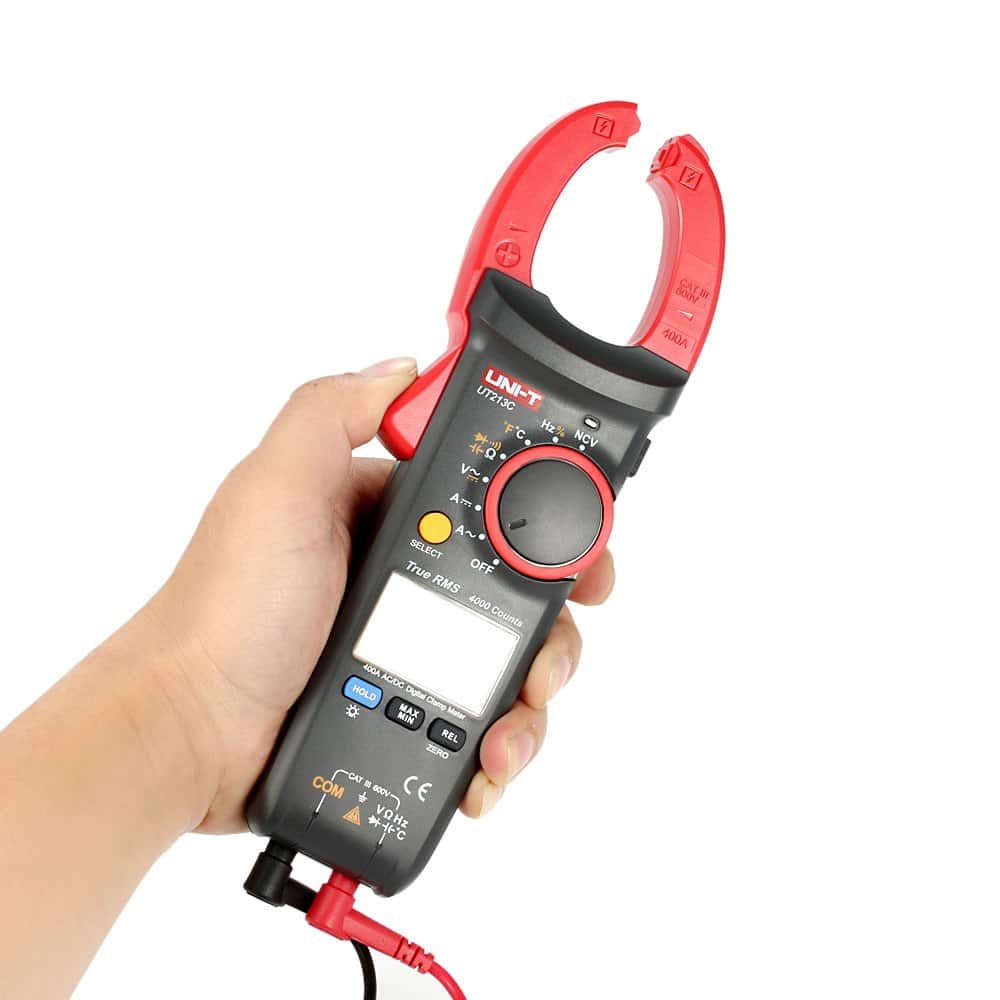

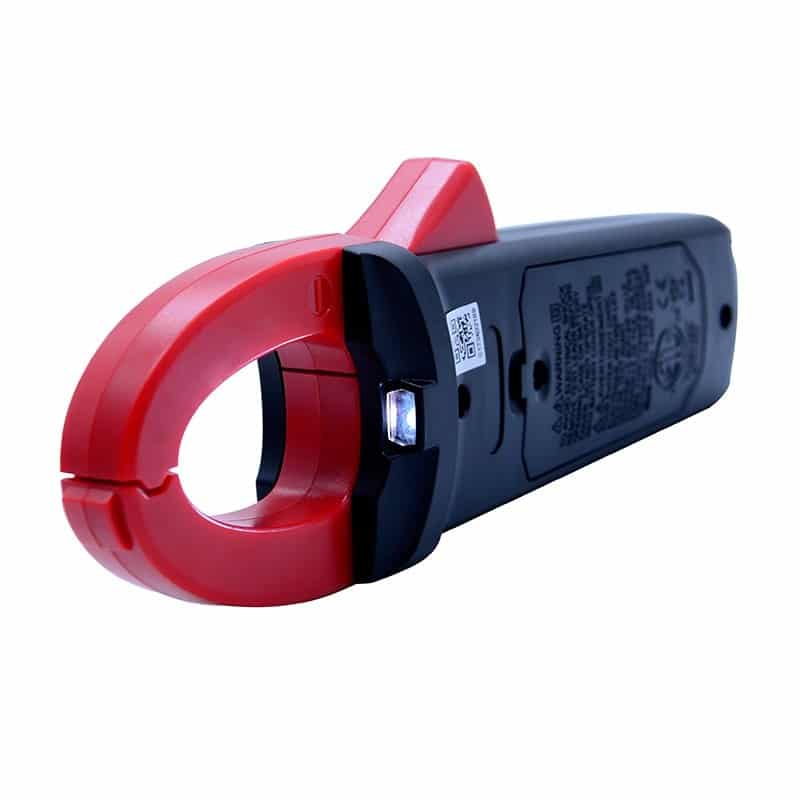

UNI-T’s UT213C is a 400A True RMS digital clamp meter with CAT III safety standards. These meters are designed with higher performance and safety ratings.Β a built-in flashlight also makes these meters useful tools when working in dark environments.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT213C 400A True RMS Digital Clamp Meter Features:
- CAT III 600V rating
- K-type temperature probe
- 400A AC/DC measurement
- Auto range
- 4000 display count, 3/s sampling rate
- True RMS
- NCV, non-contact voltage
- Frequency and duty ratio
- MAX/MIN/relative modes
- 30mm large jaw
- Data hold; LCD backlight
- Auto power off
- 12-month warranty.
UT213C 400A True RMS Digital Clamp Meter Includes:
1 x UT213C, Batteries, Test Leads, 1 x Point Contact Temperature Probe, 1 x Carrying Bag, 1 x English user manual, and 12-month warranty.
UT213C 400A True RMS Digital Clamp Meter Specifications:
| Specifications | Range | Best Accuracy |
| Model | UT213C | |
| AC Current (A) | 40A/400A | Β±(2.5%+5) |
| DC Current (A) | 40A/400A | Β±(2.0%+3) |
| AC Voltage (V) | 4V/40V/400V/600V | Β±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | Β±(0.8%+1) |
| Resistance (Ξ©) | 400Ξ©/4kΞ©/40kΞ©/400kΞ©/4MΞ©/40MΞ© | Β±(1.0%+2) |
| Capacitance (F) | 40nF/400nF/4ΞΌF/40ΞΌF/400ΞΌF/4mF/40mF | Β±(4.0%+5) |
| Frequency | 10Hz~1MHz | Β±(0.1%+4) |
| Temperature (β) | -40~1000β | Β±(1.0%+3) |
| Temperature (β) | -40~1832β | Β±(1.0%+6) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | β | |
| Jaw Capacity | 30mm | |
| True RMS | β | |
| Diode | Around 3.0V | |
| NCV | β | |
| Data Hold | β | |
| Relative Mode | β | |
| MAX/MIN | β | |
| LCD Backlight | β | |
| Flashlight | β | |
| Auto Power Off | β | |
| Continuity Β Β Buzzer | β | |
| Low Battery Indication | β€3.6V | β |
| Input Β Β Protection | β | |
| Input Impedance for DCV | β₯10MΞ© | β |
| GeneralΒ | ||
| Power | AAA 1.5V x 3 | |
| LCD Size | 38mm x 24mm | |
| Product Color | Red and grey | |
| Product Net Weight | 231.7g | |
| Product Size | 220mm x 75mm x 40mm | |
| Standard Accessories | Batteries, Test Lead, Point Contact Temperature Probe | |
| Standard Individual Packing | Box, Carrying bag, English Manual | |
