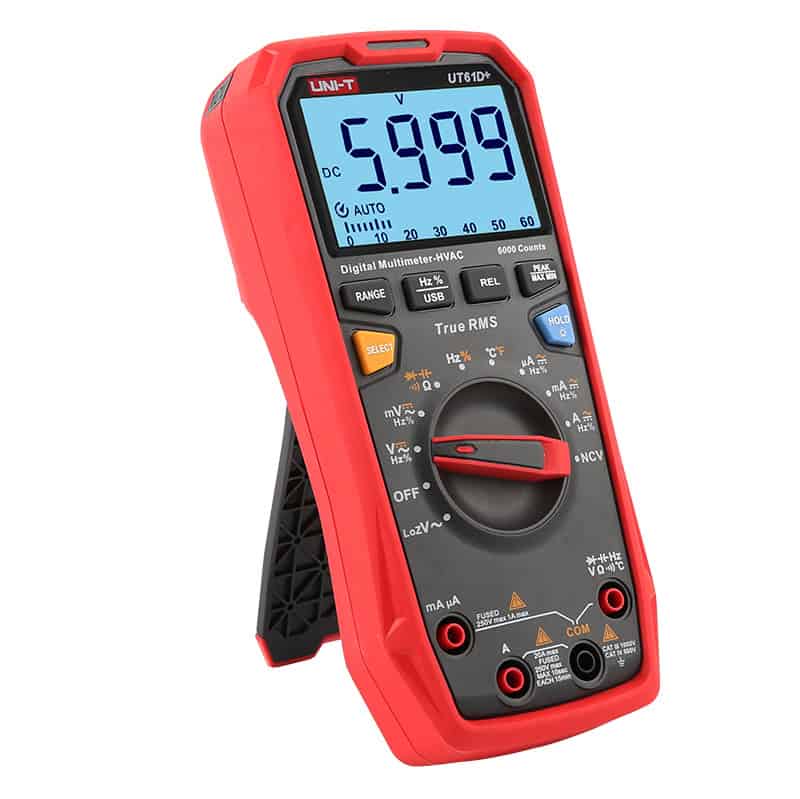

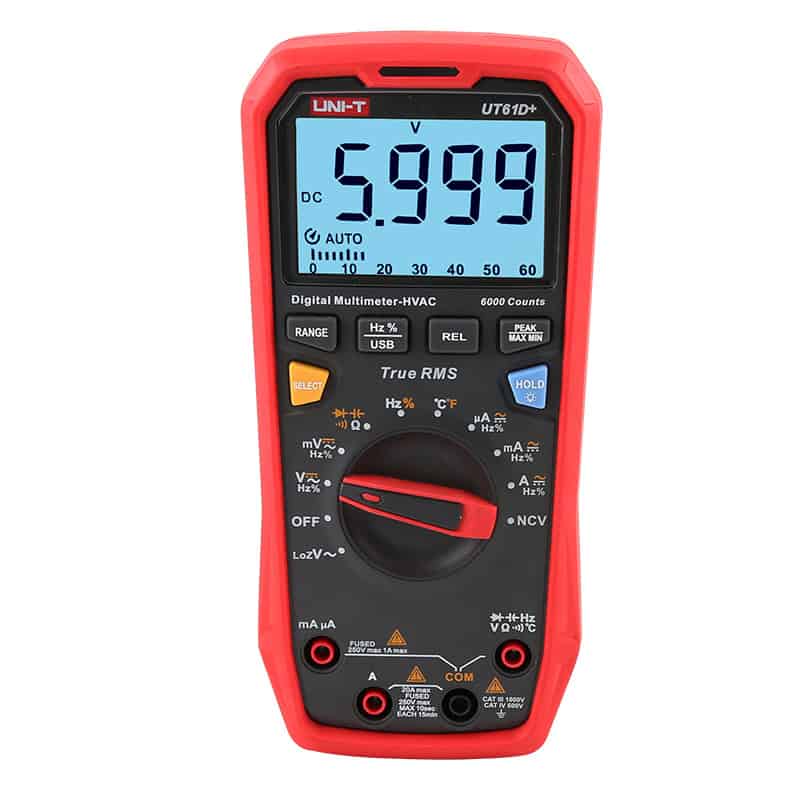

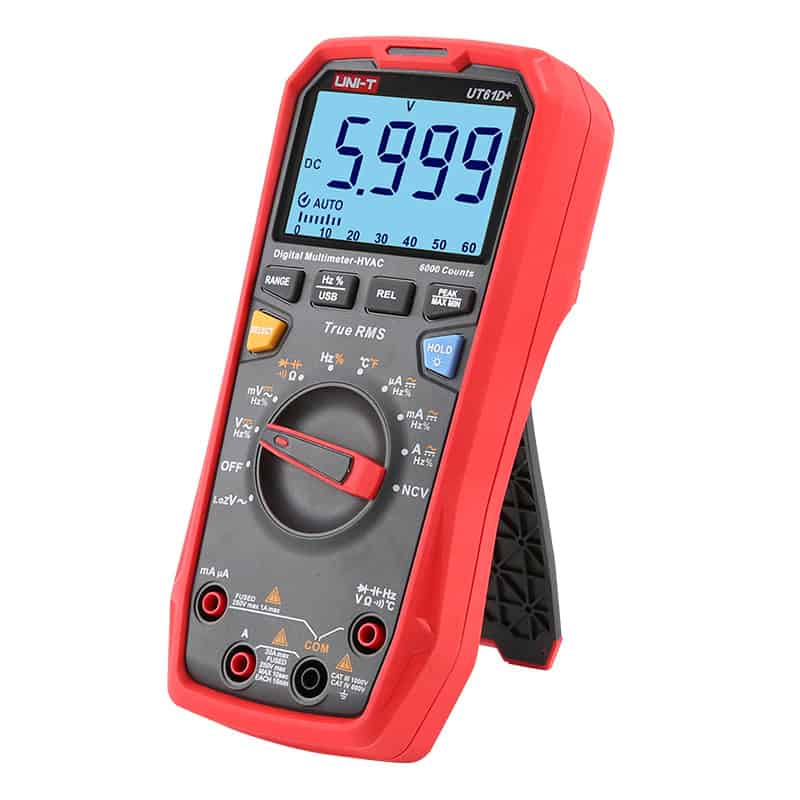

UT61+ series are reliable true RMS digital multimeters with display counts 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarm, this series can provide warning, especially when measuring high voltage/current and temperature.
FEATURES:
- CAT III 1000V/CAT IV 600V

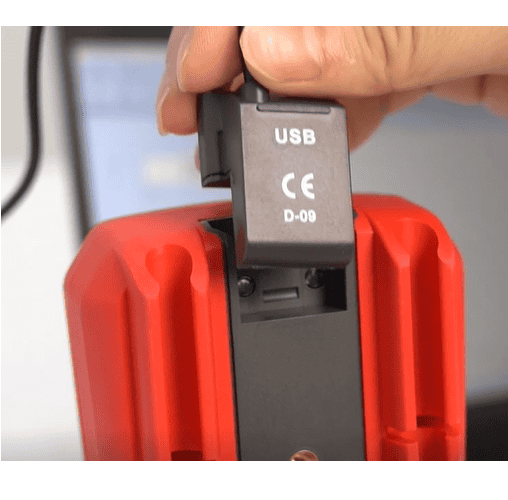

- USB communication
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- Auto range
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
- Analog bar graph (31)
- LoZ ACV
- Temperature -40β~1000β
- Peak hold.
INCLUDES:
1 x UT61D+, Battery, gold plated test leads, USB cable, temperature probe, 1 x English user manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT61D+ |
| Safety ratings | CAT III 1000V/CAT IV 600V | |
| AC voltage (V) | 1000V | Β±(1%οΌ3) |
| DC voltage (V) | 1000V | Β±(0.5%οΌ3) |
| AC current (A) | 20A | Β±(1.2%οΌ5) |
| DC current (A) | 20A | Β±(1%οΌ2) |
| Resistance (Ξ©) | 60MΞ© | Β±(1%οΌ2) |
| Capacitance (F) | 60mF | Β±(3%οΌ5) |
| Frequency (Hz) | 10MHz | Β±(0.1%οΌ4) |
| Duty cycle (%) | 0.1%~99.9% | Β±(2%οΌ5) |
| Temperature (β/β) | Β -40β~1000β | Β±(1%οΌ3) |
| Β -40β~1832β | Β±(1%οΌ6) | |
| Display count | 6000 | |
| Bandwidth (Hz) | 40Hz~1kHz | |
| LoZ ACV | β | |
| Peak Hold | β | |
| Analog bar | 31 | |
| General Characteristics | ||
| Power | AAA battery (R03) x 4 | |
| Product net weight | 350g | |
| Product size | 190mm x 90mm x 50mm | |
| Standard accessories | Battery, gold plated test leads, USB cable, temperature probe, English manual | |
| Standard individual packing | Box, cloth bag | |
