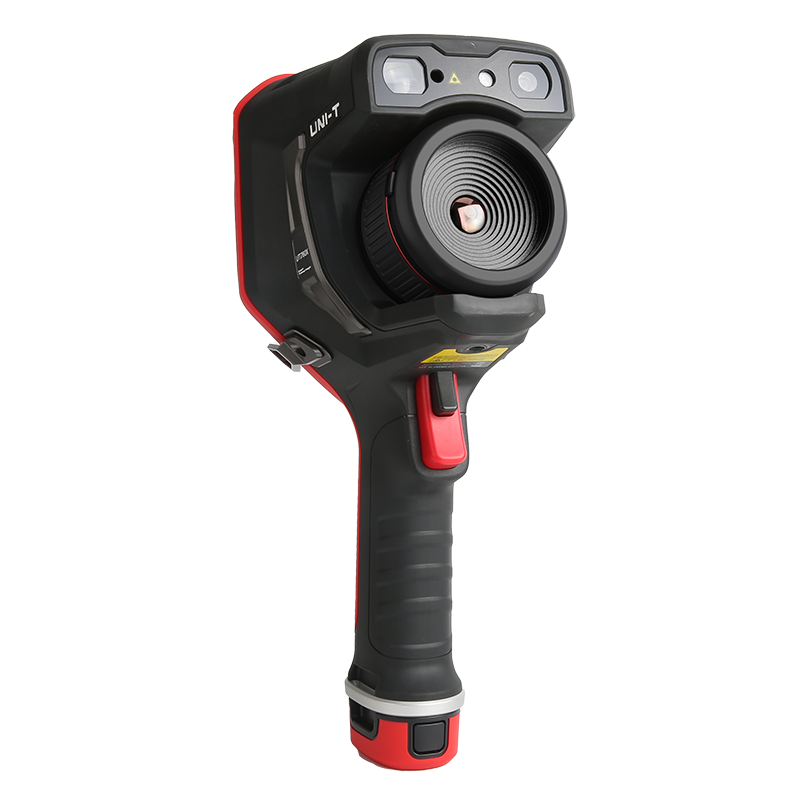

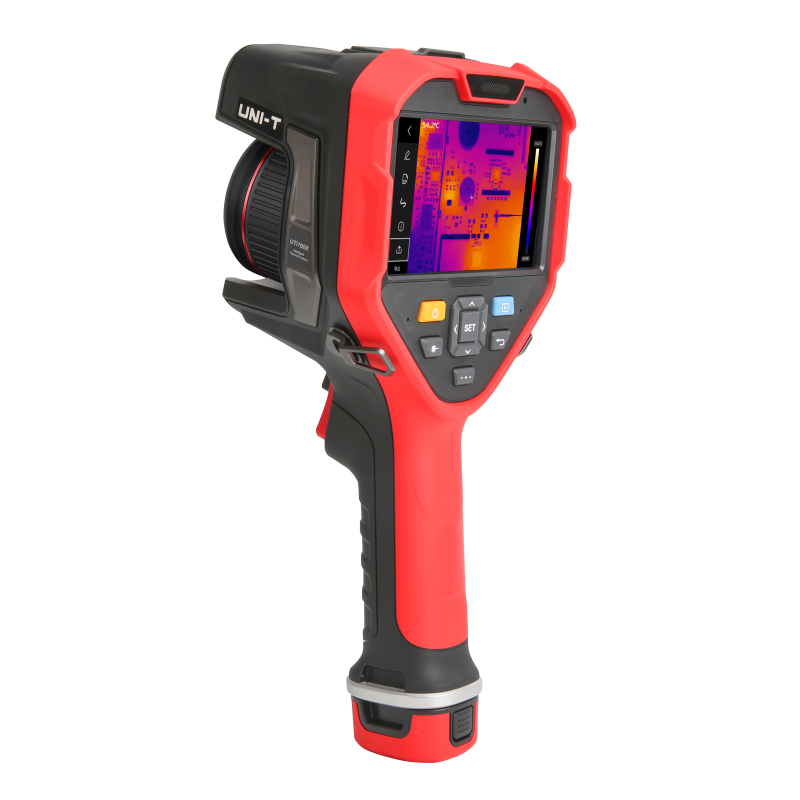

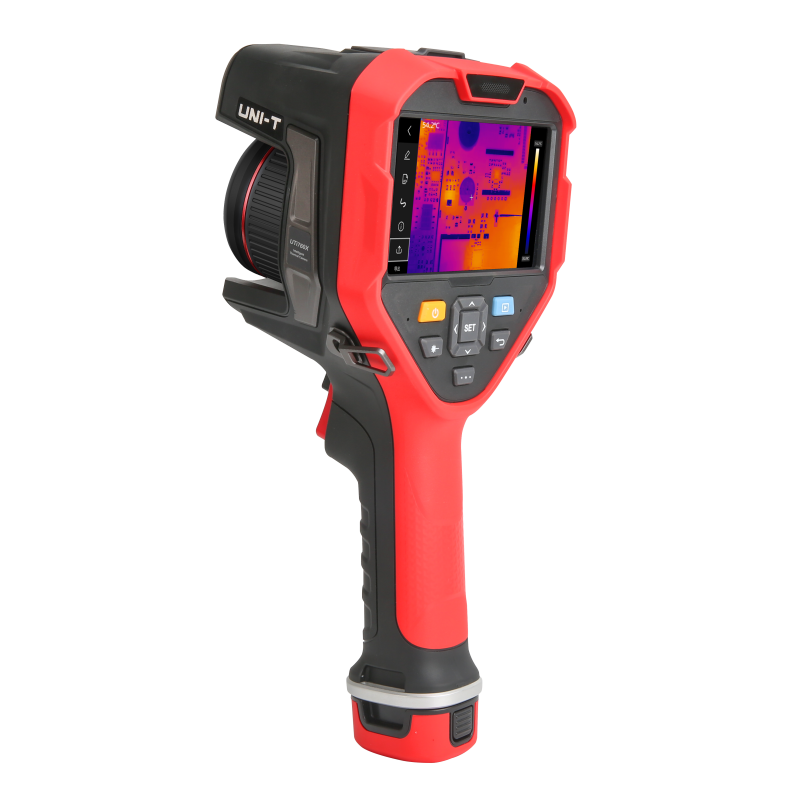

UNI-T UTi760X Thermal Imager | High-Resolution IR Camera

UTi760X features a high resolution infrared detector of 640×512 pixels and a 13MP digital camera. The high-precision thermal camera designed specifically for industrial field. 30Hz infrared frame rate for fast and accurate access to more temperature data of the moving targets. The wide temperature measurement range and the optional camera lens meet the requirements of numerous severe measurement scenarios.

Features

640×512 pixels (upgrade to 1280×1024 when Super Resolution is on)
Temp. measurement range from -20℃ to 1200℃ (up to 2200℃ when High temperature lens is installed)
Interchangeable camera lens (support lens autocal)
Multiple focus modes (Continuous AF/Contrase AF/Laser AF/Touch AF/Manual Focus/Automatic)
With T-Mix image fusion algorithm technology
High-prevision measurement (accuracy is up to ±1.0℃ or ±1.0%)
Smart meter
AI voice
Laser rangefinder
OTA upgrade

Specifications

Model No.	UTi760X
Technical Data
Display	5′ IPS Touch (1280×720)
IR resolution(Pixels)	640×512
Super resolution(Pixels)	1280×1024
Spectral range	7.5～14μm
Pixel size	12μm
Frame rate	30Hz
Thermal sensitivity(NETD)	35mK
Focus mode	Continuous AF/Semi-auto Focus/Laser Assisted Focus/Touch AF/Manual Focus
Focusing time	<2s
Lens recognition	✔
Lens calibration	Automatic
Lens model	UT-Z042	UT-Z043	UT-Z044	UT-Z045	UT-Z046	UT-Z047
Lens	Standard	Wide-Angle	Telephoto	Ultra Telephoto	High Temperature	Macro
Lens focal length	18mm	9.6mm	36mm	62.8mm	18mm	18mm
Aperture	F1.0	F1.0	F1.0	F1.3	F1.0	F1.1
Field of view(FOV)	24°(H)×19.3°(V)	46°(H)×37°(V)	12°(H)×9.6°(V)	7°(H)×5.6°(V)	24°(H)×19.3°(V)	—
Spatial resolution(IFOV)	0.66mrad	1.28mrad	0.33mrad	0.19mrad	0.66mrad	40μm
Imaging distance	0.15m (Min)	0.1m (Min)	1m (Min)	2m (Min)	0.15m (Min)	20~38mm
Temperature measurement range	Conventional Lens: -20℃～1200℃ High Temp. Lens: 1000℃～2200℃
Accuracy	For -20℃~120℃, ±1.0℃/±1.0% (0℃~120℃), ±2.0℃ (-10℃~0℃); For 0℃~600℃, ±1.5℃/±1.5% (20℃~600℃) For 500℃~1200℃, ±1.5% For -20℃~100℃, ±2.0℃ (-10℃~100℃) For 1000℃~2200℃, ±1.5% (whichever is greater, room temperature of 25℃, or conventional lens)
Functions
Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Rainbow, Rainbow HC, Lava. Customized palette & color inversion are supported
Image modes	Thermal, Visual image, Fusion, T-Mix, PIP, dual-channel image
On-screen analyzer	16 Points/16 Lines/16 Rectangles/16 Circles. T-select is supported
Level & span	Auto/Manual/Touch
HI/LO temperature alarm	LCD animation, LED flashlight, Buzzer
HI/LO temperature tracking	✔
ROI correction	Supports regional emissivity correction
Digital camera resolution	13MP
Digital zoom	✔
Photo capturing / Video recording	✔
Full-screen thermal radiometric video stream	✔
T-Contrast	✔
T-Sharp	✔
Smart meter	✔
AI voice	✔
OTA upgrade	✔
QR code scanning	✔
Text/Voice annotation	✔
HDMI display extension	✔
WiFi / Wi-Fi live streaming	✔
Bluetooth	✔
Laser pointer	✔
LRF	0.1～50m (Class 2, red)
LED lighting	✔
Analysis software	PC+APP
General Characteristics
Battery	7.2V/5000mAh rechargeable & detachable Li-ion battery pack
Operating time	≥5 hours
Charging system	Type-C direct charging / Independent charging of the battery pack
Charging time	Charging to 90% in 2.5 hours (Power off charging or independent charging of the battery pack)
USB	Type-C USB, Micro HDMI
Storage	Built-in 128 GB, supports SD expansion
Image storage format	JPG
Video storage format	MP4/UIR
Working temperature	-20℃～55℃
Storage temperature	-40℃～60℃
Working humidity	10%～95%RH，noncondensing
Protection	IP54 & 2m drop proof
Certificates	CE, FCC, RoHS
Languages	EN, FR, DE, IT, ES, SV, PL, CS
