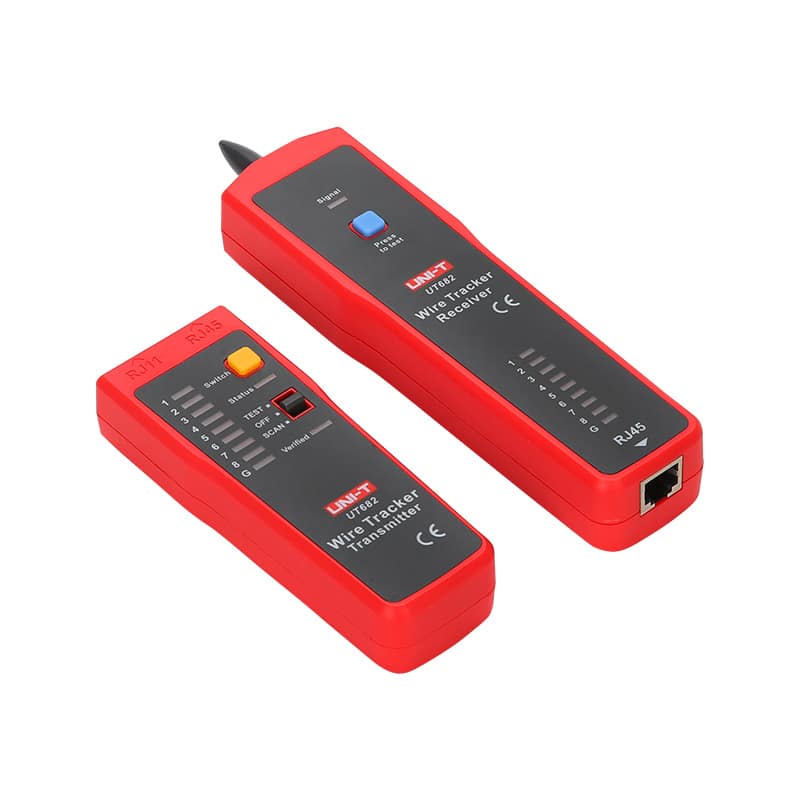

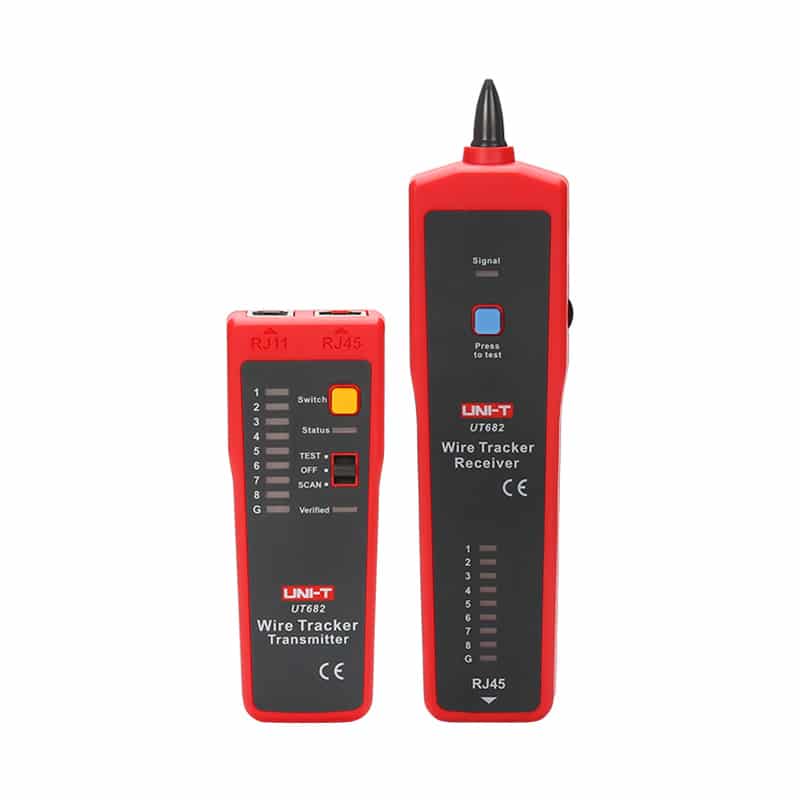

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
FEATURES:
- Telephone/ethernet/power cable tracking
- DC level test can check voltage level and polarity
- Ethernet cable wiring sequence verification
- Fast open/short circuit test
- Volume adjustment
- Headset connection for noisy environment
- Dual measurement cycle mode
- Low battery indication.
INCLUDES:
1 x UT682 wire tracker and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT682 | |
| Wire tracking features | Wire types | LAN cabletelephone linecoaxial cableelectric wire | |
| Indication light for signal strength | √ | ||
| Live switchboard wire tracing | √ | ||
| Switchboard wire tracing distance | ≥100m | ||
| Telephone lines tracking distance | ≥3000m | ||
| Unshielded cables tracking distance | ≥320m | ||
| Shielded cables tracking distance | ≥320m | ||
| Open and short circuit test | √ | ||
| Polarity indication for telephone lines |
DCV function, range: ±(5V~52V) |
√ | |
| Telephone lines and LAN cables distinction | Jacks distinction | √ | |
| Broken wire tracking | √ | ||
| Transmitter output voltage | ≥12V peak-peak | ||
| Transmitter low battery indication | 6.6V±0.5V | ||
| Transmitter power supply | 9V battery | √ | |
| Max transmitter working current | 25mA | ||
| Headphone jack for receiver | √ | ||
| Receiver power supply | 9V battery | √ | |
| Max receiver standby current | ~10mA | √ | |
| Max receiver operating current | <40mA (AC, RMS) | √ | |
| Wire alignment | Line sequence measurement | 9 LEDs (LED1~LED8, LED_G) | √ |
| Line sequence measuring speed | Fast and slow selectable | √ | |
| LAN cable: shielded/unshielded indication | √ | ||
| Transmitter input voltage protection |
52V DC | ||
| Operating environment | Operating temperature: 0~40℃; Storage temperature: -10~50℃ Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m |
||
| General Characteristics | |||
| Product colour | Red and grey | ||
| Product net weight | UT682: Transmitter-125g, receiver-153g | ||
| Product size | UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm | ||
| Standard accessories | 9V battery x 2, RJ11 cable, RJ45 cable, RJ11 cable with alligator clips | ||
| Standard individual packing | Blister, carrying bag, English manual | ||
