Uni-T UT352 Professional Sound Level Meter

The UT352 takes sound measurement to the next level.

$350.99 ex. GST $315.89 ex. GST
$403.64 incl. GST $363.27 incl. GST

Availability: In stock

Everyday Low Trade Price
Free Delivery within New Zealand*
30 Day Hassle Free Returns
SKU: UT352 Categories: , ,

UT352 Professional Sound Level (30~130dB) Meter has auto range and data storage function, with high/lower alarm, analogue outputs and condenser microphone. The UT352 takes sound measurement to the next level.

When taking measurements the UNI-T UT352 features two separate sampling rates. FAST mode will generate a sample of 8 times per second while the SLOW mode will generate 1 time per second.

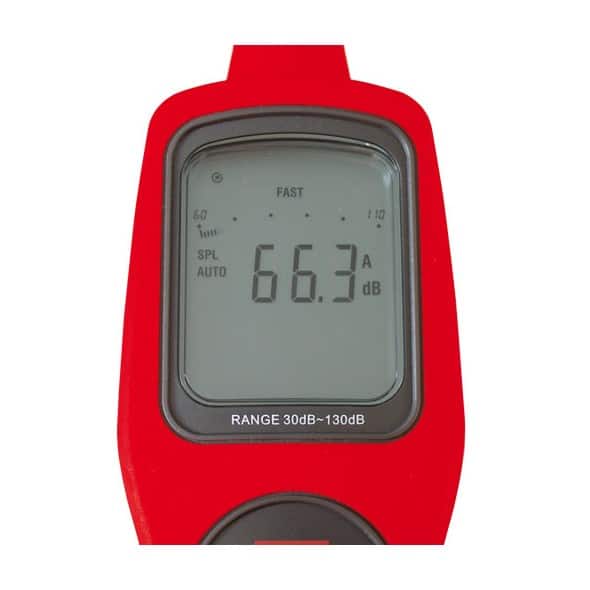

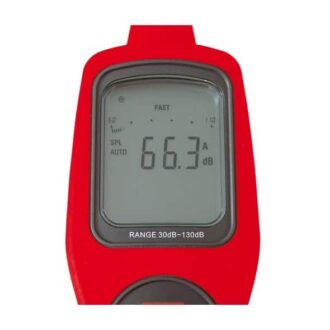

Results generated by the UT352 are displayed clearly on the LCD screen. Results are measured in decibels and can be also represented as an analogue bar graph with a range of 30-130dB. To help with measurements this device also features MAX/MIN modes and the ability to temporarily store data using the data hold function.

This device also features auto power off when left idle for an extended period of time, low battery indication and has analogue outputs of AC: 0.707Vrms full scale; Output impedance around 600Ω and DC: 2Vrms full scale; 10mV/dB; Output impedance; around 100Ω.

Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.

UT352 Professional Sound Level Meter Features:

  • Sound level range of 30~130dB
  • MAX/MIN modes
  • 63 sets data storage
  • AC/DC analog signal output
  • Over/under range indication
  • Data hold, LCD backlight
  • Simulated analog bar
  • An (ear)/C (machine) weighing modes
  • Manual/auto range selectable
  • Fast/slow response rate (fast: 125ms, slow: 1s)
  • Powered by batteries or external power source
  • 12-month warranty.

UT352 Professional Sound Level Meter Includes:

1 x UT352, Batteries, 1 x English user manual, and 12-month warranty.



UT352 Professional Sound Level Meter Specifications:

Specifications Range Best Accuracy
Model UT352
Range 30~80dB ±1.5dB
50~100dB ±1.5dB
60~110dB ±1.5dB
80~130dB ±1.5dB
Frequency 31.5Hz~8000Hz
Frequency Weighting A&C
Sample Rate FAST: 8 Times/s
SLOW: 1 Times/s
Features
Analogue Outputs AC: 0.707Vrms full scale; Output impedance: around 600Ω
DC: 2Vrms full scale; 10mV/dB; Output impedance: around 100Ω
Data Hold
Auto Power Off
Low Battery Indication ≤4.8V
MAX Mode
MIN Mode
Data Logging 63
High Alarm Display “OVER”
Lower Alarm Display “UNDER”
LCD Backlight
Analog Bar Graph 30~130dB
General Characteristics
Power 1.5V Batteries (LR6) X 4
LCD Size 53mm X 41mm
Product Color Red and Grey
Product Net Weight 330g
Product Size 273mm X 70mm X 39mm

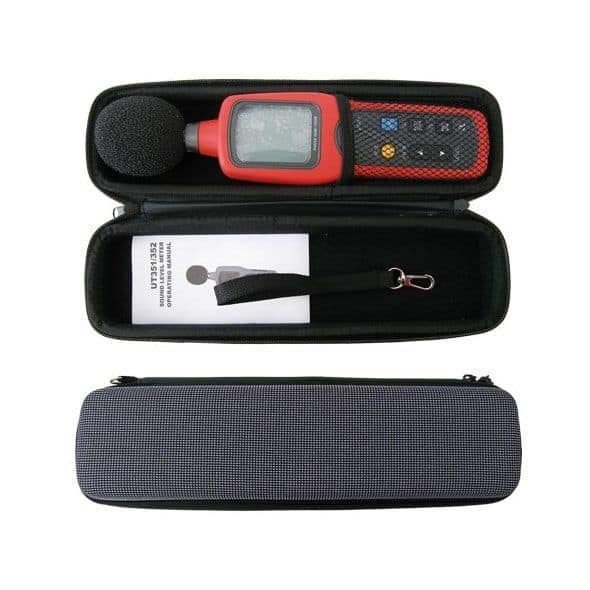

Standard Accessories Batteries, Windscreen, Leather Box
Standard Individual Packing Box, English Manual

Documents

UT352 Professional Sound Level Meter English Manual

UT352 Professional Sound Level Meter Flyer
