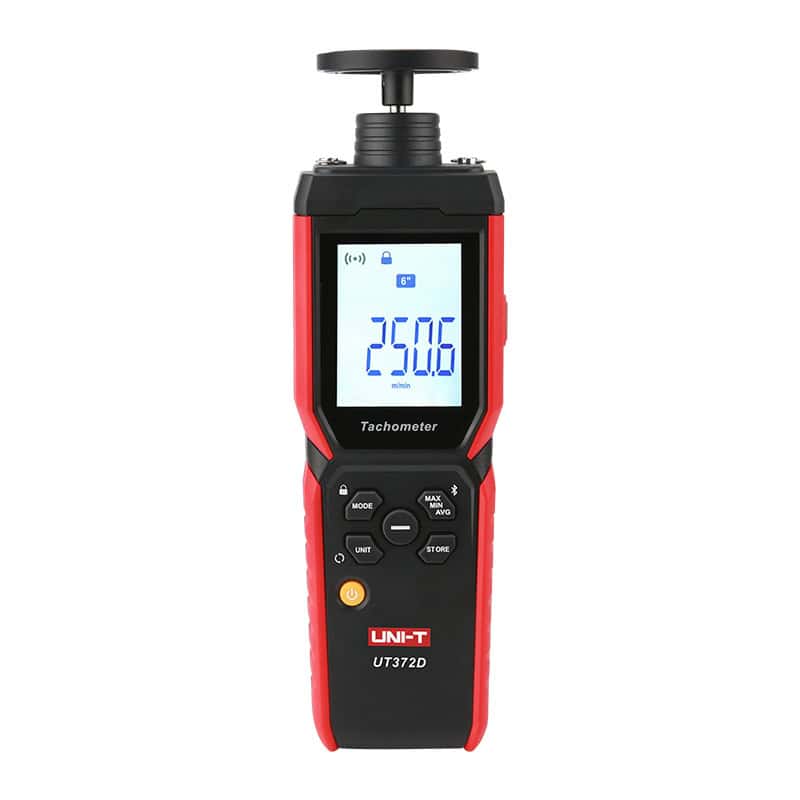

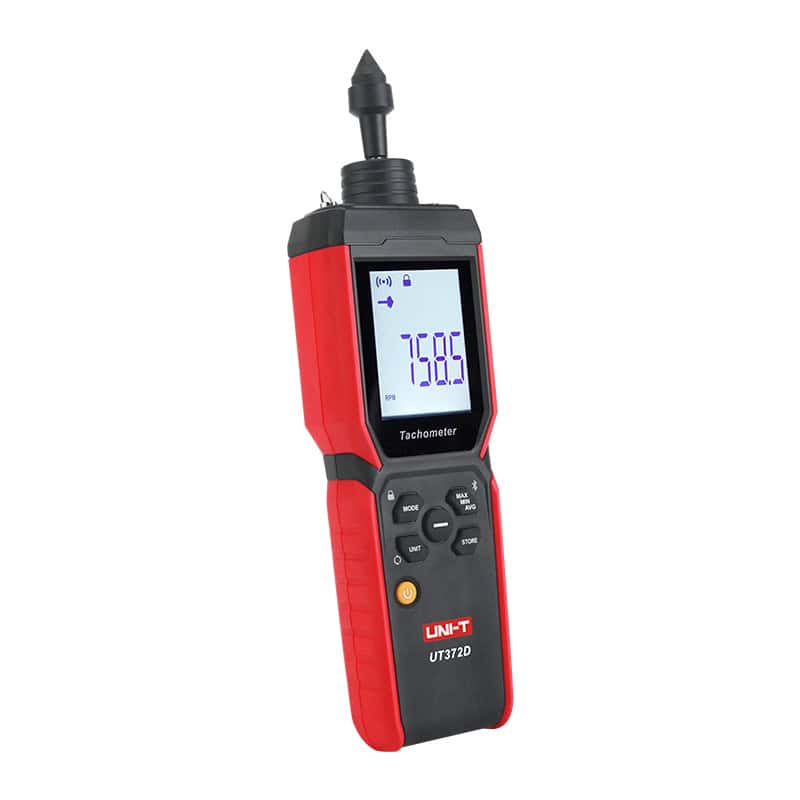

Uni-T UT372D 2-in-1 Tachometer is a reliable and safe tachometer, which combines contact and non-contact measurement modes. It is mainly used to measure Revolutions Per Minute(RPM) , frequency, surface velocity and length in the fields of motors, fans, automobiles, papermaking, etc.
FEATURES:
- Contact and non-contact measurements
- Β MAX/MIN/AVG/HOLD
- Rotatable LCD backlight screen
- Unit conversion
- Bluetooth APP
- Auto power off
- Data storage
- Two measurement buttons
INCLUDES:
1 x UT372D, user manual, quick start guide, safety instruction, shaft contacts(cone/internal cone), contact wheels(6in/0.1m), cloth bag, reflecting tape, batteries
SPECIFICATIONS:
| Specification | Range | |
| Non-contactΒ (optical)Β measurement | RotationalΒ velocityΒ (RPM) | 1-99,999 |
| FrequencyΒ (HZ) | 1-1,666 | |
| Count(REV) | 1-99,999 | |
| Target distance | 50~500mm | |
| ContactΒ measurement | RotationalΒ velocityΒ (RPM) | 1-19,999 |
| FrequencyΒ (HZ) | 1-333 | |
| SurfaceΒ velocity | 0.1m wheel | |
| 0.1-1,999m/min | ||
| 0.4-6,550ft/min | ||
| 4-78,700in/min | ||
| 6βwheel | ||
| 0.15-1,524m/min | ||
| 0.5-5,000ft/min | ||
| 6-60,000in/min | ||
| Length | 0-99999(m/ft/in) | |
| Accuracy | Β±0.02%Β Β±1Β digit | |
| Measurement modes | ContactΒ RPM/Non-contactΒ RPM/counting/frequency/SurfaceΒ velocity/length | |
| ContactΒ measurementΒ unit | m/min, ft/min, in/min,m, ft, in | |
| StatisticalΒ measurement | Max/Min/LastΒ reading/Average | |
| DataΒ storage | 10Β groups | |
| Bluetooth APP | β (iENV) | |
| Display | Rotatable LCD backlight screen | |
| OperatingΒ temperature/humidity | 0Β°C~50Β°C;Β β€80%RH | |
| StorageΒ temperature | -20Β°C~60Β°C;Β β€80%RH | |
| DropΒ test | 1m | |
| AutoΒ powerΒ off | AfterΒ aboutΒ 15Β minutesΒ ofΒ inactivity | |
