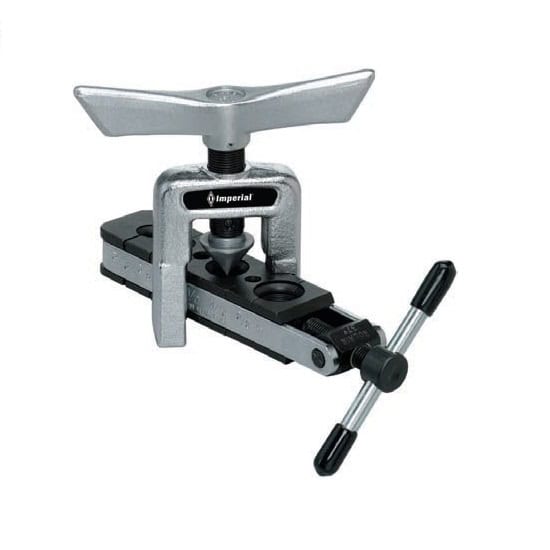

Imperial 507FBC Rol-air 37 Degree Flaring Tool

For use with soft copper, aluminium & brass tubing. Also annealed Stainless Steel tube up to 0.035″ [ 0.9mm ] wall thickness

$374.99 ex. GST
$431.24 incl. GST

Out of stock

Want to be notified when this product is back in stock?

Flaring and Reaming Kit, 3 Pc, Flare Type 37 Deg, Capacity Tubing OD 3/16, 1/4, 5/16, 3/8, 1/2, 5/8 Inch, For Flaring and Burnishing Annealed Stainless Steel, Aluminum, Soft Steel, Soft Copper, Overall Length 10 1/8 In, Heat Treated Steel and Stainless Steel, Cone Type Hardened Steel, Ratchet Drive Handle, Includes Flaring Yoke, Reaming Yoke, Die Block and Case.

FEATURES:

  • The IMP-507FBC features a faceted, hardened steel, chrome-finished cone which rolls out perfect 37° flares above the die block
  • The cone automatically burnishes the flare face,reducing the need for deburring. The 507-FB maintains the original wall thickness at the base of the flare
  • The slip-on yoke permits it to be used in tight quarters,where there is little space between the nut and tube end
  • Large handle, gives better leverage, and precision threads on the feed screw make flaring effortless
  • Satin chrome and black finish.

INCLUDES:
1 x IMP-507FBC Flaring Tool and Limited Lifetime Warranty (Conditions apply).

SPECIFICATIONS:

  • Item Flaring and Reaming Kit
  • Flare Type: 37 Degrees
  • Capacity Tubing O.D. (In.): 3/16″, 1/4″, 5/16″, 3/8″, 1/2″ and 5/8″ O.D. tubing
  • Warranty: Limited Lifetime (Conditions apply)
  • Country of origin: USA.
