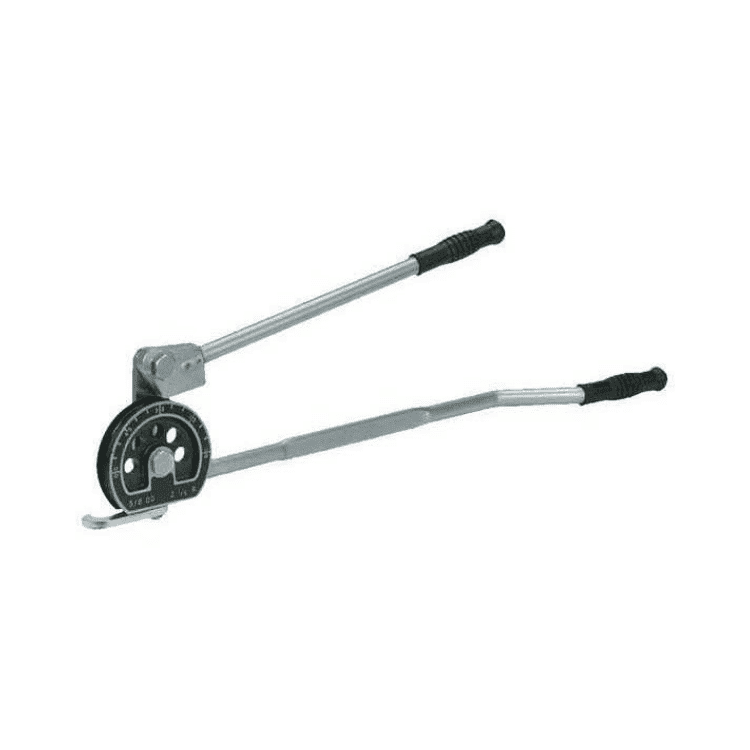

The 364-FHAM series has an Open-side that slips over the tube at any point. Makes smooth, tight radius bends up to 180° with minimum effort. No scoring or flattening of tubing. Calibrated to show the angle of bend.
FEATURES:
- Calibrated to show the angle of bend
- Each tool bends one size

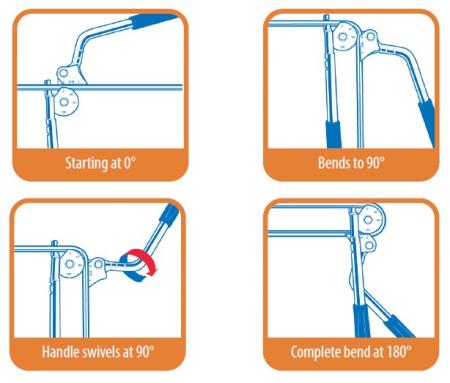

- Makes smooth tight radius bends up to 180° with minimum effort
- No scoring or flattening of tubing
- Open side type which slips over tube at any point
- Wide hook grips tubing securely
SPECIFICATIONS:
| PART NO.
| TUBE O.D (mm) | RADIUS TO CENTER OF TUBE (mm) (Inches) | WEIGHT EACH (Kg) (lbs.) | ||
| IMP-364FHAM6MM
| 6 | 14.2 | 9/16 | 0.45 | 1.0 |
| IMP-364FHAM8MM
| 8 | 17.5 | 11/16 | 0.45 | 1.0 |
| IMP-364FHAM10MM
| 10 | 24.0 | 15/16 | 0.79 | 1.75 |
|
| |||||
