UTi120P thermal camera is mini and portable in size, users can put it into pocket to go anywhere to identify and troubleshoot problems, it can automatically track the objective’s temperature from -20°C to 400°C, which can be widely used in many applications.
APPLICATIONS:
- PCBA inspection: The thermal camera can quickly locate the components where temperature is abnormally higher
- Power Distribution Cabinet Inspection: The thermal camera can quickly find the problems on switcher, contactor, transformer etc, which may be caused by oxidation, corrosion, poor contact
- Motor inspection: The thermal camera can detect imbalance loading, overloading, wiring error and parts malfunction etc. Heat insulation protection is the key action for avoid fire risk, users can also use the thermal camera check the protection situation regularly to ensure safety production.
FEATURES:
- Mini and portable

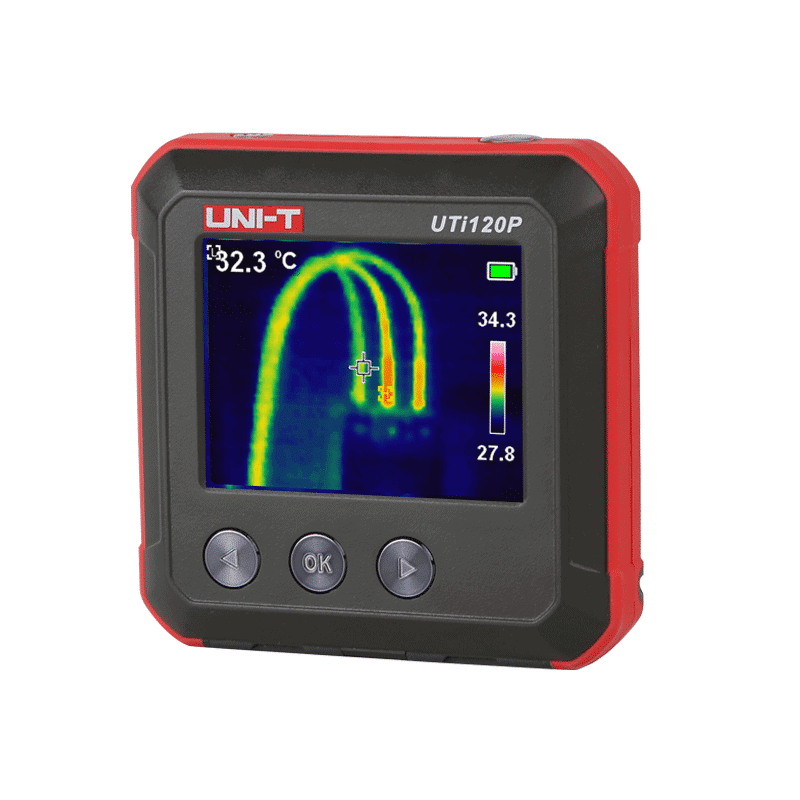

- 2.4” TFT display screen (320×240 Pixels)
- IR resolution: 120×90
- Temperature measurement range:-20℃ to 400℃ / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 3(Iron, Rainbow, Grey)
- PC software analysis
- Rechargeable Li-ion battery

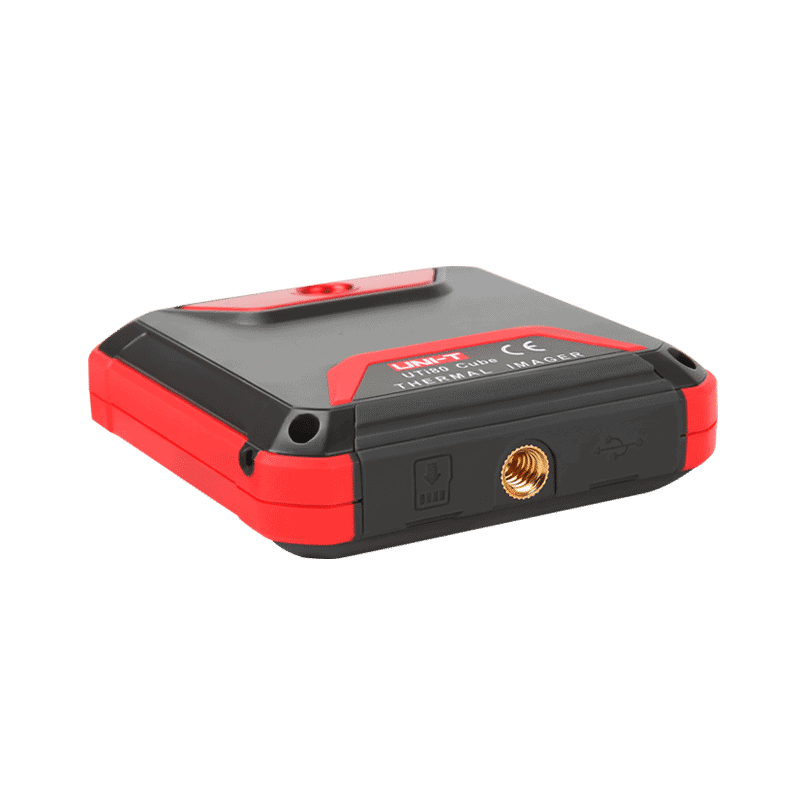

- 1/4” tripod mounting hole
- 1m drop proof.
INCLUDES:
1 x UTi120P, 1 x Hand strap, 1 x Carrying bag, Micro SD card, Micro USB cable, Documents download operation guide card, English manual and 12-month warranty.
SPECIFICATIONS:
| Functions | |
| ☑ Color palettes: 3 (Ironbow, Grey, Rainbow) ☑ Auto tracking and alarm for high/low temperature ☑ PC software analysis ☑ Auto power off: 5/10/30mins(default)/off | |
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Display | 2.4” TFT LCD (320×240) |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Spectral range | 8~14µm |
| Focus | Focus Free |
| Temperature measurement range | -20℃~400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| General Characteristics | |

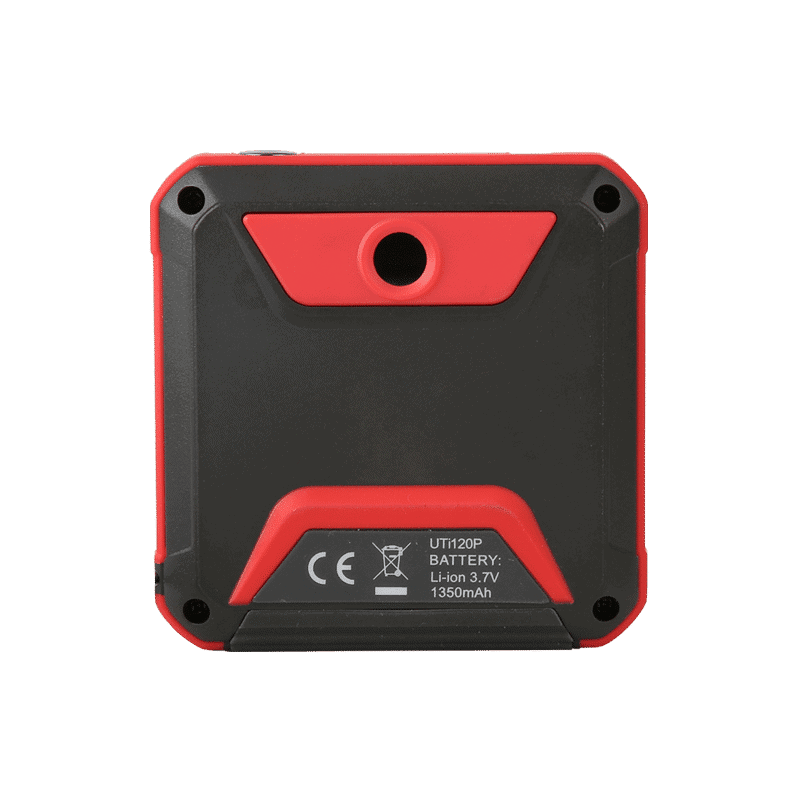

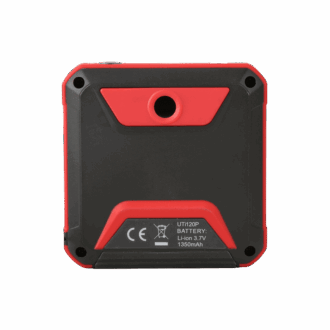

| Battery | Fixed Li-ion battery (3.7V 1350mAh) |
| Battery operation time | ≥3.5 hours |
| USB | Micro USB |
| Drop-proof | 1m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,RoHS |
| Product net weight | 125g |
| Product size | 76mm×76mm×24mm |
| Packing Details | |
| Standard accessories | Hand strap, Carrying bag, Micro SD card, Micro USB cable, English manual,Documents download operation guide card |
| Standard individual packing | Box |
