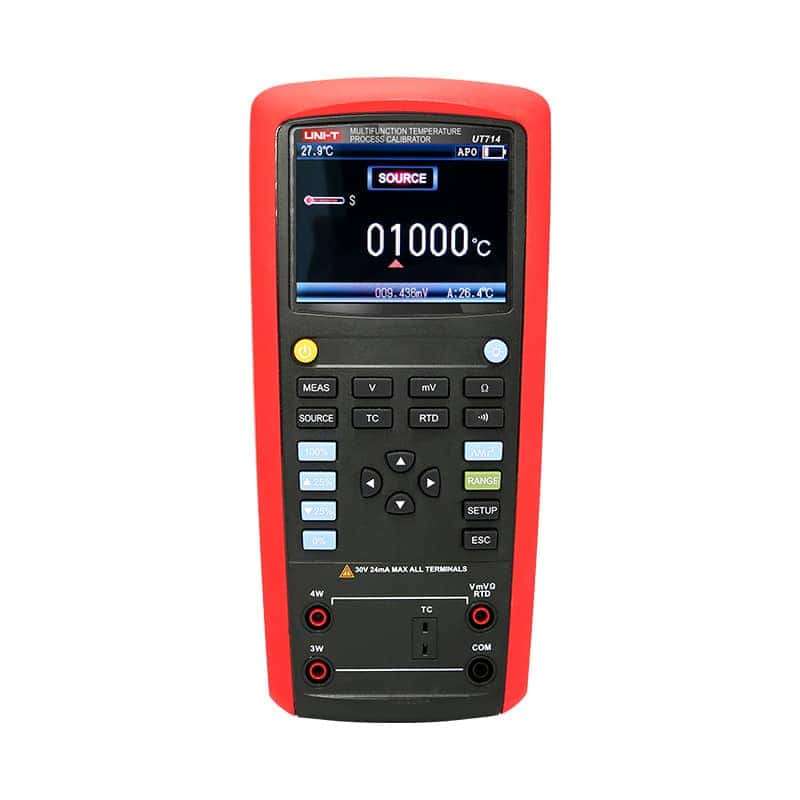

The UT714 is a powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate different types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.
FEATURES:
- Step/ramp functions
- Source and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups
- USB communication.
INCLUDES:
1 x UT714, Test lead, USB cable, power adapter, temperature probe, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT714 |
| Measurement | ||
| DC voltage (V) | 50mV/500mV/30V | ±(0.02%+2) |
| Resistance (Ω) | 500Ω/5000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 | |
| Continuity test | √ | |
| Source | ||
| DC voltage (V) | 100mV/1000mV/10V | ±(0.02%+10) |
| Resistance (Ω) | 400Ω/4000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 | |
| Display count | 20000 | |
| Operating temperature | -10°C~55°C | |
| General Characteristics | ||
| Power | 1.2V x 6 AA rechargeable battery | |
| Product net weight | 650g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessory | Test lead, USB cable, power adapter, temperature probe, English manual | |
