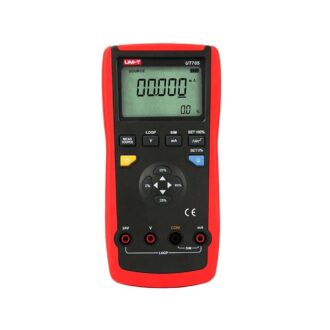

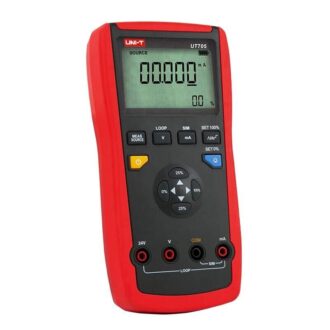

The UT705 is a high-performance device for process loop calibration and maintenance.
Designed with high-accuracy DC current and transmitter analogue current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps and ramp outputs to help users work more efficiently and accurately.
It features an LCD backlight display, auto power-off and is 1-metre drop-proof.
FEATURES:
- Measures: DC voltage, DC current, 4-20mA loop current
- Output functions: DC current, analogue transmitter, 24V loop
- Up to 0.02% output and measurement accuracy
- Compact and ergonomic design, easy to carry
- Solid and reliable, suitable for on-site use
- Auto stepping and ramping output for fast linearity detection
- Conduct mA measurement while providing loop power to the transmitter
- Save frequently-used settings for future use
- Adjustable backlight display brightness
- Convenient battery replacement.
INCLUDES:
1 x UT705, Test leads, battery and 12- Month warranty.
SPECIFICATIONS:
| Specifications | Range | Accuracy |
| Measure accuracy | ||
| DC voltage (V) | 30.000V | ±(0.02+2) |
| DC current (A) | 24.000mA | ±(0.02+2) |
| Loop current | 24.000mA | ±(0.02+2) |
| Source accuracy | ||
| DC current (source) | 24.000mA | ±(0.02+2) |
| DC current (simulate) | 24.000mA | ±(0.02+2) |
| Features | ||
| Loop power function | Voltage: 24V | |
| Accuracy: 10% | ||
| Ramp functions | Source functions: Voltage, resistance, temperature | |
| Ramps: Slow ramp, fast ramp, 25% step-ramp | ||
| Step functions | Source functions: Voltage, resistance, temperature | |
| Steps: 25% of range, 100% of range | ||
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 63mm x 40mm | |
| Product colour | Red and grey | |
| Product net weight | 410g | |
| Product size | 96mm x 193mm x 47mm | |
| Standard accessories | Test leads, battery | |
