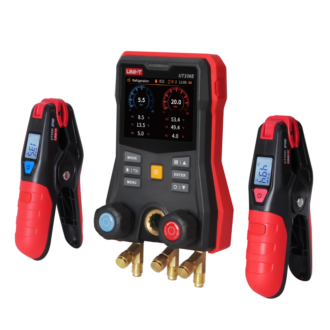

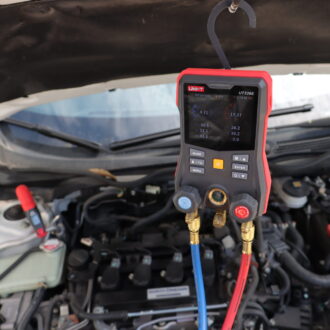

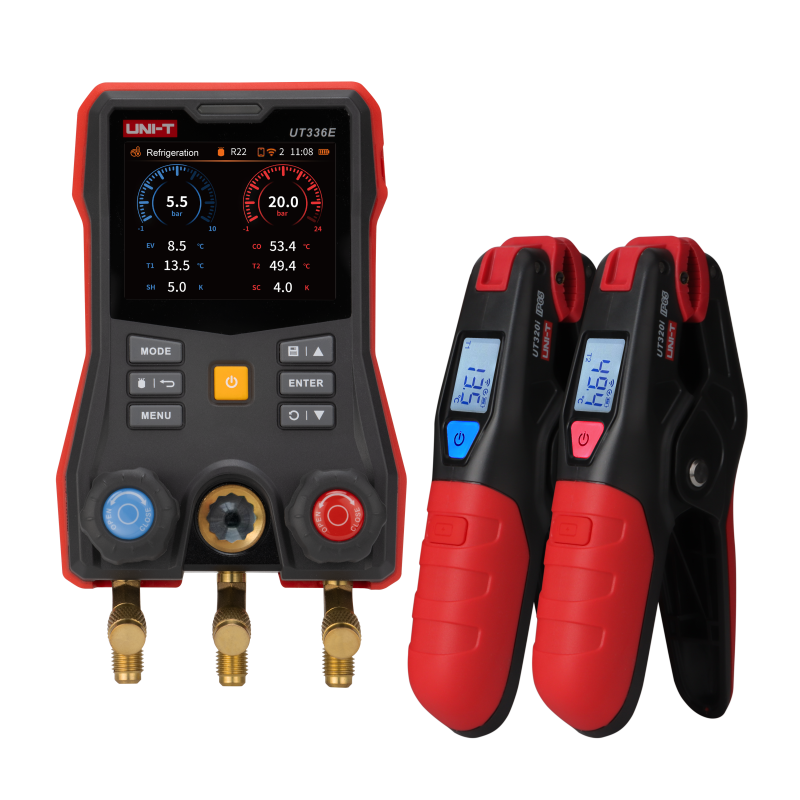

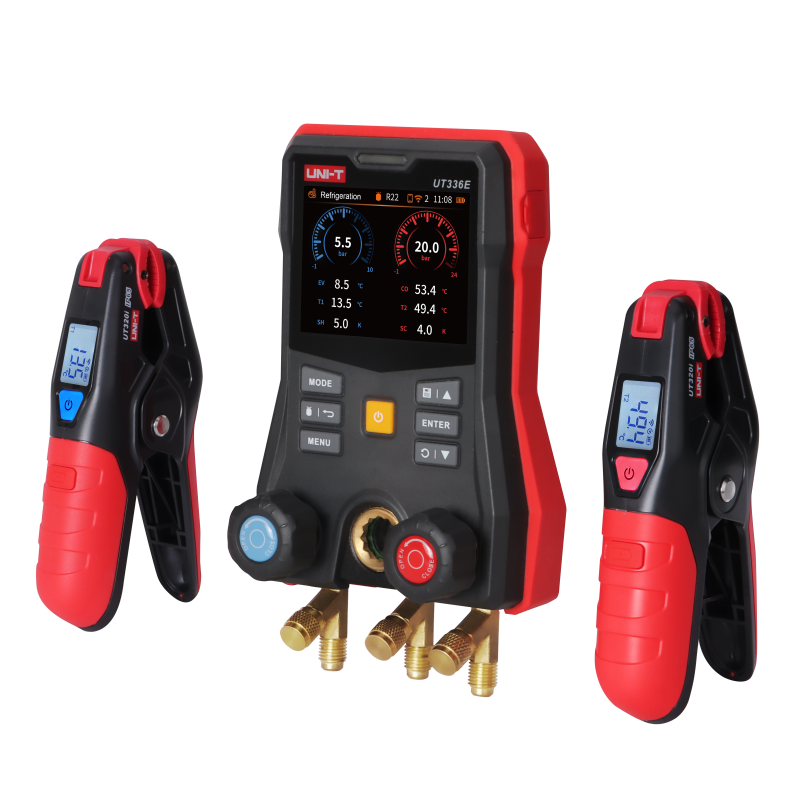

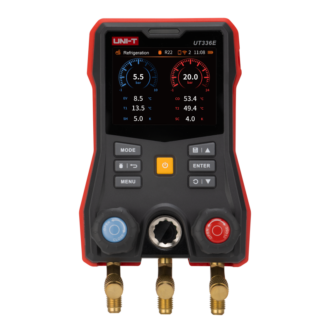

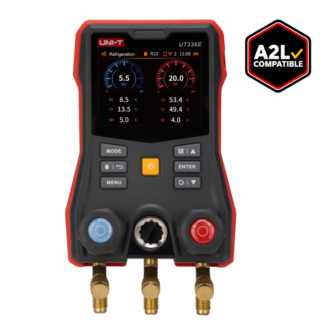

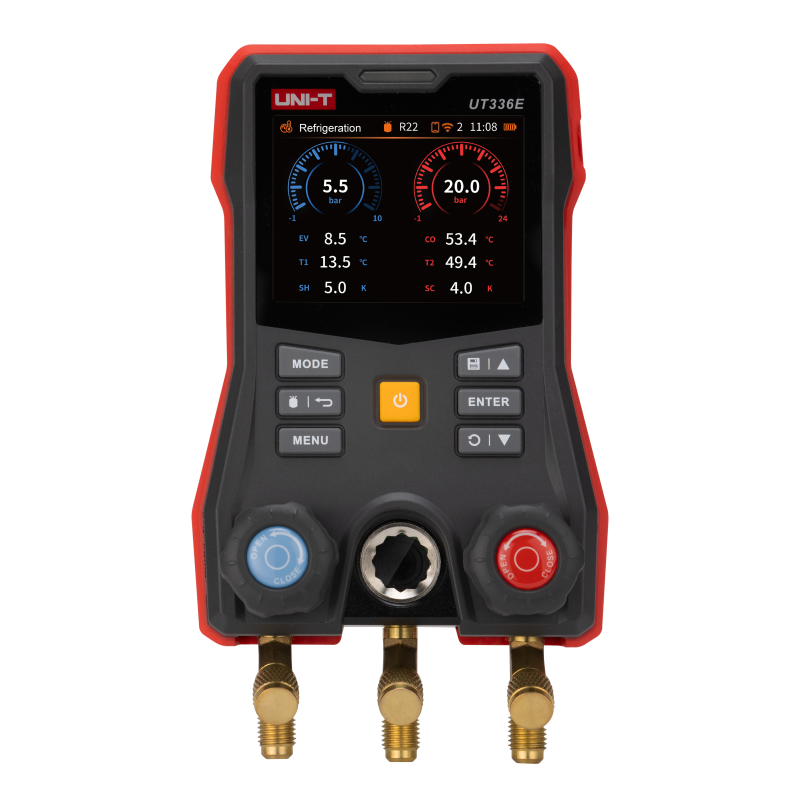

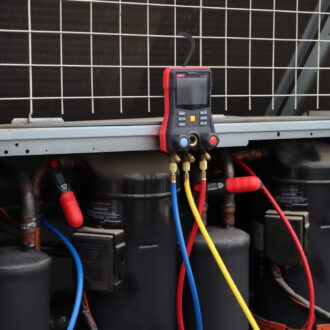

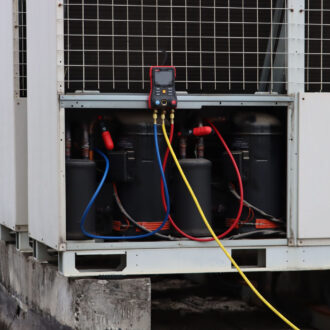

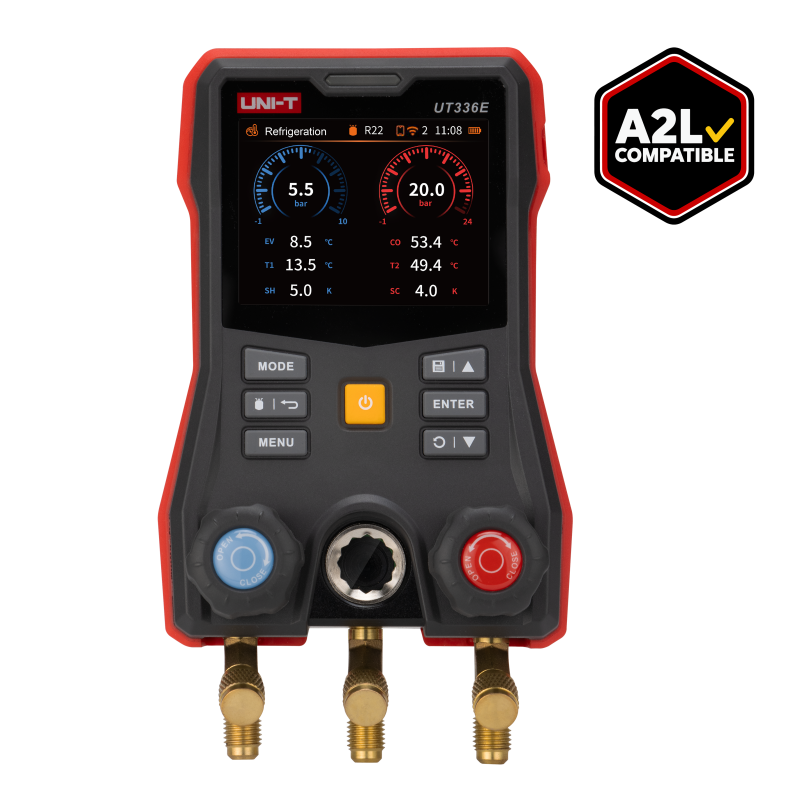

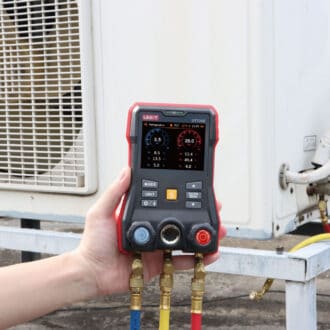

UT336E KIT is designed for the installation, debugging, and maintenance of refrigeration and heat pump systems, providing accurate measurement of high and low-side pressures. When used with wireless temperature clamps, it can measure the high/low-pressure refrigerant pipe temperatures and automatically calculate superheat and subcooling, helping optimize system performance. The device comes with built-in refrigerant parameters and supports wireless app connectivity for remote monitoring and data management. No matter if it’s for new installations, routine commissioning, or maintenance, UT336E KIT offers precise, intelligent support for refrigeration and heat pump systems, ensuring efficient and stable operation.
Features
- Certifications: CE, RoHS
- Language: EN, FR, DE, IT, ES, SV, PL, CZ
- 5”HD Color Screen
- 10000 Data Storage
- Tap-to-wake Backlight
- IP54 Rating
- 5200mAh Rechargeable Lithium Battery
- Built-in 160+ Database

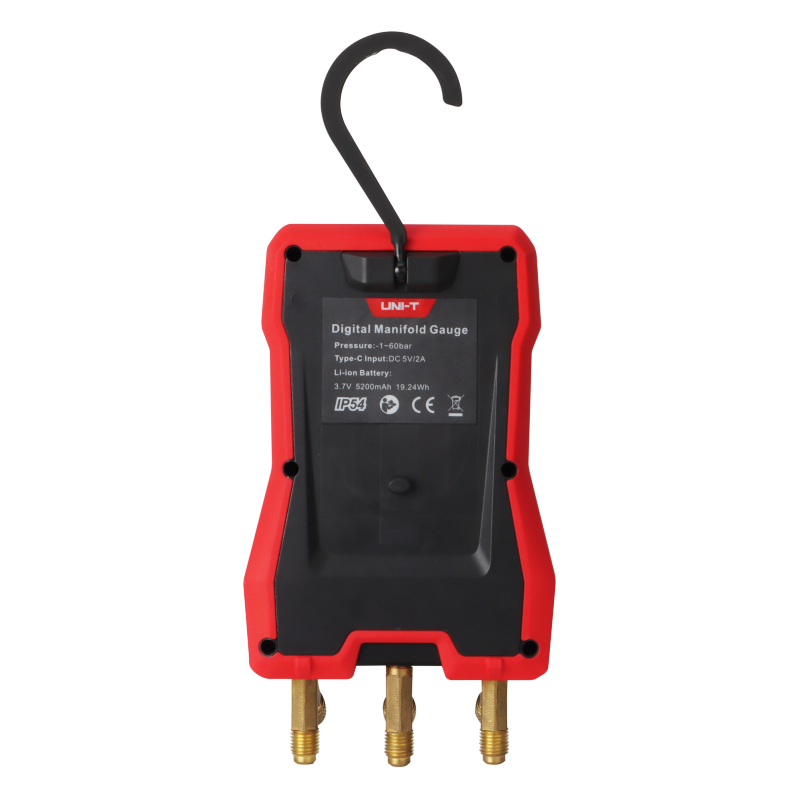

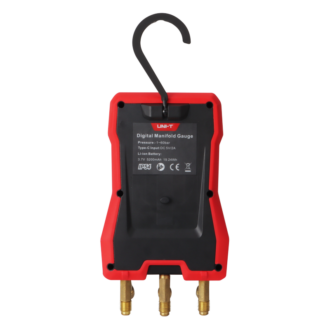

- Metal Hook Design
- Wireless Temperature Clamps and Vacuum Gauge Connection
- Mobile APP
- Automatic Superheat/Subcooling Calculation
Specifications
| ressure Range/Resolution | -1.00~+60.00 bar | 0.01 bar |
| -100~+6000 kPa | 1 kPa | |
| -0.100~+6.000 MPa | 0.001 MPa | |
| -14.5~+870.2 psi | 0.1 psi | |
| -1.02~+61.18 kgcm² | 0.01 kgcm² | |
| -75.0 to 4500 cmHg | 0.1 cmHg | |
| -29.5 to 1771 inHg | 0.1 inHg | |
| Temperature Range | -50~150℃ | 0.1℃ |
| -58 -302℉ | 0.1℉ | |
| Pressure Accuracy | ±0.5% FS | |
| Temperature Accuracy | ±0.5℃（-50~80℃）, ±1℃(other) | |
| Pressure Unit | bar, kPa, MPa, psi, kgcm2, cmHg, inHg | |
| Temperature Unit | ℃, ℉ | |
| Alarm | Yellow LED/Buzzer alarm | |
| Wireless Range | 100m | |
| IP Rating | UT336E:IP54 | |
| UT320i: IP65 | ||
| Refrigerant Type | 162+ | |
| Evaporation & Condensation Temperature | ✔ | |
| High/Low-Pressure Measurement | ✔ | |
| Superheat/Subcooling | ✔ | |
| Pressure Zeroing | ✔ | |
| Refrigeration/Heat Pump Mode | ✔(Auto detection) | |
| Evacuation Mode | ✔ | |
| Pressure Holding Mode | ✔ | |
| Data Record | 10000 | |
| Temperature Compensation | ✔ | |
| Mobile APP | ✔ | |
| OTA Upgrade | ✔ | |
| Language Setting | EN, FR, DE, IT, ES, SV, PL, CZ, CN | |
| Auto Screen Off | ✔ | |
| Auto Power Off | ✔ | |
| Interface | 3×1/4” SAE | |
| Working Temperature & Humidity | -20～50℃＜90%RH (non-condensing) | |
| Storage Temperature & Humidity | 20～60℃ ＜90%RH (non-condensing) | |
| General Characteristics | ||
| Battery | Built-in rechargeable lithium battery: 3.7V 5200mAh | |
| Battery Life | > 30h, (backlight 50%, wireless connection OFF) | |
| Size | UT336E: 203×117×70mm; UT320i: 156×79×40mm | |
| Weight | UT336E: About 836g; UT320i: About 156g | |

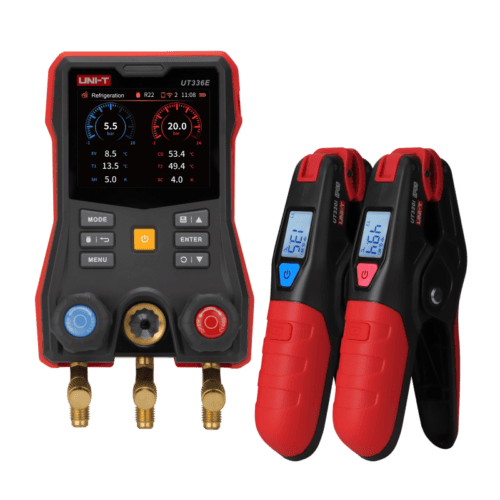

| Accessories | Digital Manifold Gauge*1, Wireless Temperature Clamp*2, User Manual*1, Safety Guide*1, Refrigerant Hose*3, USB-C Charging Cable*1, Tool Box*1 | |
| Standard Quantity Per Carton | 1pc | |
