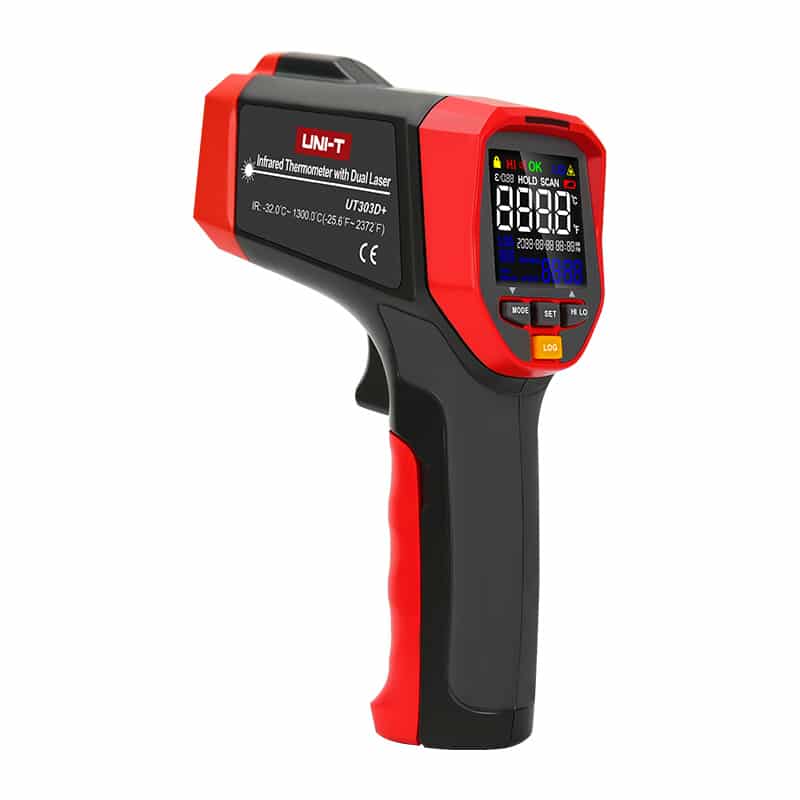

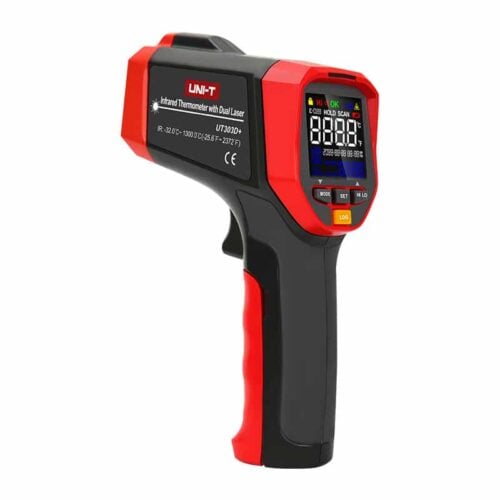

The UT303D infrared thermometers can precisely target objects within 250ms with single spot laser for fast troubleshooting. They feature 30:1 D:S ratio, adjustable emissivity, powered by battery or USB. UT303D can also be used for continuous monitoring through SCAN mode.
FEATURES:
- ±1.5℃ temperature measurement accuracy
- User defined visual and audio alarm
- High-contrast EBTN colour display
- MAX/MIN/AVG/DIFF/Hold modes
- Dual lasers
- Temperature recording up to 99 groups
- Date/time display
- Time scheduled measurement.
INCLUDES:
1 x UT303D, 1 x Battery, 1 x Carrying Bag, 1 x USB Cable (External Power), 1 x Blister, 1 x English Manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | UT302A+ | UT303A+ | UT303D+ |
| Temperature range | -32℃~700℃ | -32℃~800℃ | -32℃~1300℃ |
| -25.6℉~1292℉ | -25.6℉~1472℉ | -25.6℉~2372℉ | |
| Accuracy | ≥0℃: ±1.5℃ or ±1.5%; <0℃: ±(1.5℃+0.1℃/℃) | ||
| ≥32℉: ±3.0℉ or ±1.5%; <32℉: ±(3.0℉+0.1℉/℉) | |||
| Repeatability | 0.7℃ or 0.7% (1.5℉ or 0.7%) | ||
| D:S ratio | 20:1 | 30:1 | |
| Response time | 250ms | ||
| Emissivity | 0.1~1.0 (adjustable, stores 5 sets of preset values) | ||
| Spectral response | 8um~14um | ||
| Laser power | < 1mW | ||
| Features | |||
| Auto power off | √ | ||
| Low battery indication | √ | ||
| LCD display | Color EBTN | ||
| High/low LED alarm | √ | ||
| High/low audible alarm | √ | ||
| Data hold/Lock measurement | √ | ||
| ℃/℉ selection | √ | ||
| MAX/MIN/AVG/DIFF mode | √ | ||
| Data storage with date and time | 99 | ||
| Scheduled measurement | √ | ||
| Backlight | √ | ||
| Operating temperature | 0℃~50℃ (32℉~122℉) | ||
| Storage temperature | -20℃~60℃ (-4℉~140℉) | ||
| Operating humidity | <90%RH (non-condensing) | ||
| Drop test | 1m | ||
| Tripod mounting hole | √ | ||
| General Characteristics | |||
| Power | 9V battery | ||
| Display | 35mm x 35mm | ||
| Product colour | Red and grey | ||
| Product net weight | 310g | ||
| Product size | 172mm x 113.5mm x 53mm | ||
| Standard accessories | Battery, carrying bag | ||
| Standard individual packing | Box, blister, English manual | ||
