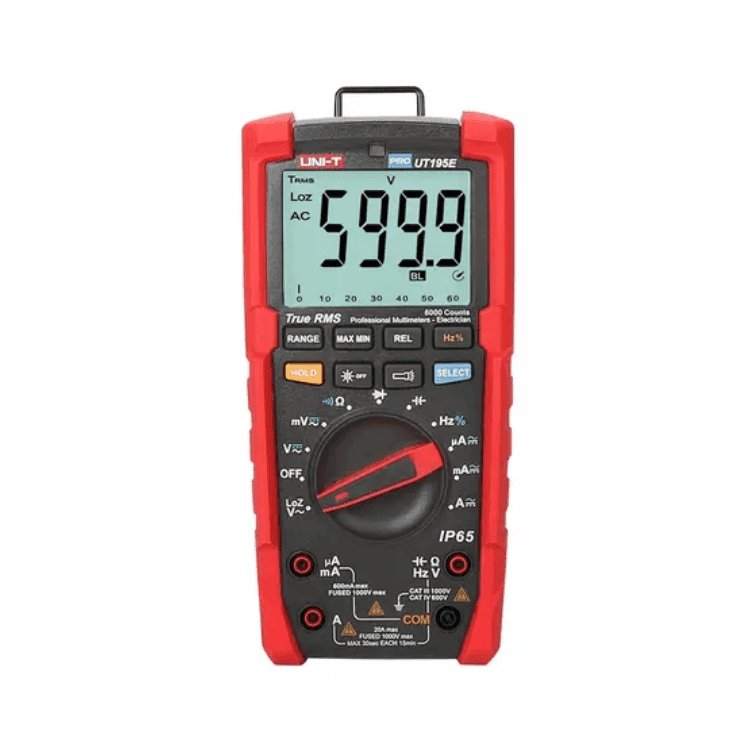

UT195E are handheld industrial digital multimeters with IP65 and 2m drop-proof. Compare with traditional multimeters, UT195’s troubleshooting capability, resolution, and precision are improved to find issues related to motor drive, factory equipment maintenance, electrical distribution, and repair etc. It is exquisitely designed and easy to operate.
Uni-T is one of the leading Test and Measurement solutions provider in the world and a prestige test meter brand throughout Asia. They are well known for high quality and affordable test and measurement products.
UT195E Professional Multimeter Features:
-
- CAT III 1000V / CAT IV 600V rating
- Large 6000-count LCD screen
- True RMS
- IP65 rating,
- Drop-proof up to 2 meters
- ACV 750V 5kHz bandwidth
- Flashlight
- Auto LCD backlight
- LoZ voltage test, for ghost voltage measurement
- 20A current measurement (max 30 seconds)
- 31 analog bar
- 12 Month Warranty.
UT195E Professional Multimeter Includes:
1 x UT195E, Test probes, battery, PC software CD carrying bag and a 12-month warranty.
UT195E Professional Multimeter Specifications:
| Specifications | Range | UT195E | UT195M | UT195DS |
| DC voltage (V) | 1000V | ±(0.5%+3) | ±(0.5%+3) | ±(0.5%+3) |
| AC+DC | 1000V | ±(1.0%+3) | ±(1.0%+3) | ±(1.0%+3) |
| AC voltage (V) | 600V | ±(1.5%+4) | ||
| LoZ ACV | 600V | ±(2%+3) | ±(2%+3) | ±(2%+3) |
| DC current (A) | 20A | ±(0.8%+3) | ±(0.8%+3) | ±(0.8%+3) |
| AC current (A) | 20A | ±(1%+3) | ±(1%+3) | ±(1%+3) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance | 60mF | ±(3%+5) | ±(3%+5) | ±(3%+5) |
| Frequency | 60Hz~10MHz | ±(0.1%+4) | ||
| 60Hz~40MHz | ±(0.1%+4) | ±(0.1%+4) | ||
| Duty cycle | 0.1%~99.9% | ±(2%+5) | N/A | ±(2%+5) |
| Temperature (°C) | -40°C~1000°C | ±(1.5%+4) | ||
| Temperature (°F) | -40°F~1832°F | ±(2%+5) | ||
| Features | ||||
| Display count | 6000 | 6000 | 6000 | |
| Display interface (LCD) | Single | Single | Dual | |
| Measurement sampling rate | times/s | 3 | 3 | 5 |
| Analog bar sampling rate | times/s | 10 | 20 | |
| Analog bar | 31 sections | √ | √ | |
| True RMS | √ | √ | √ | |
| AC voltage frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| AC current frequency response | 45~400Hz | 45~1kHz | 45~5kHz | |
| 3-phase motor sequence test | 600V | √ | √ | |
| Low pass filter | 1kHz 3dB attenuation | √ | ||
| Diode/Continuity test | 3.5V | 3V | 3V | |
| Peak hold | 250μs | √ | ||
| Auto/Manual range | √ | |||
| Continuity buzzer | √ | |||
| Low battery indication | √ | |||
| Data hold/Auto power off | √ | |||
| MAX/MIN | √ | |||
| Function selection | √ | |||
| Flashlight/Auto backlight | √ | |||
| General Characteristics | ||||
| Power | 9V battery | |||
| LCD size | 66mm x 51mm | |||
| Product color | Red and grey | |||
| Product net weight | 437g | |||
| Product size | 195mm x 95 mm x 58mm | |||
| Standard accessories | Test probes, battery, carrying bag, point contact temperature probe (UT195M) | |||
| Standard individual packing | Box, English manual (German, French, Spanish optional) | |||
