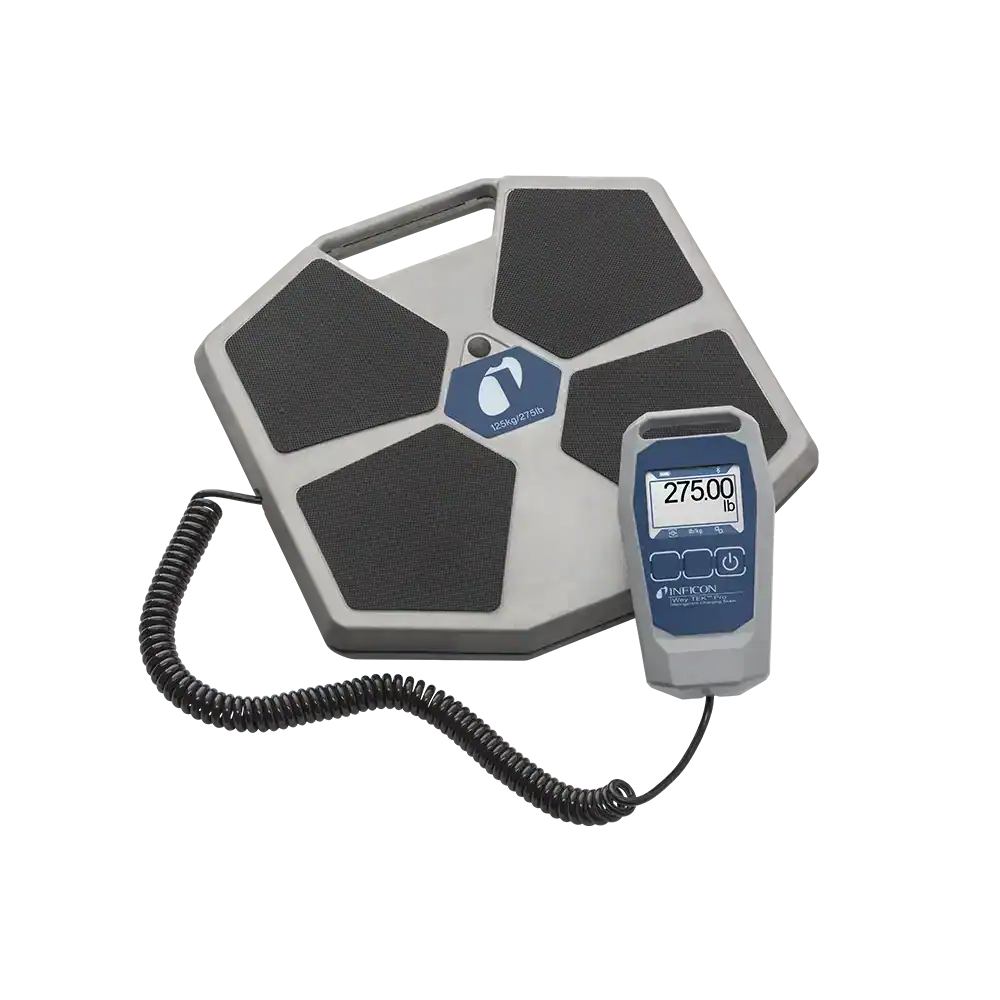

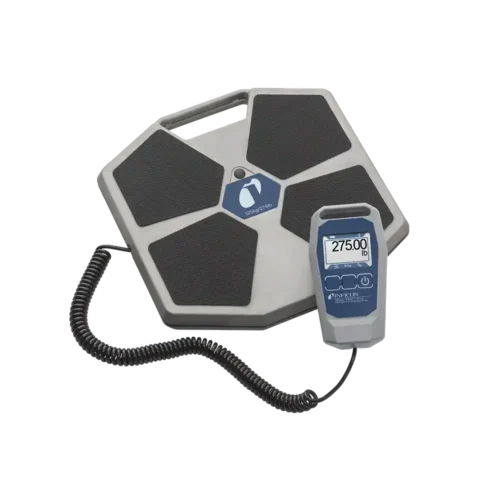

Inficon 501-202-G1 Wey-TEK® Pro Refrigerant Charging Scale

The INFICON 501-202-G1 Wey-TEK Pro is a professional refrigerant charging scale designed for both large refrigerant cylinders and small, critical charges. It combines a 125 kg weighing capacity with 3 g resolution and can be operated using its wired colour-display handpiece or wirelessly through the Wey-TEK Pro mobile app via Bluetooth. It is suitable for HVAC/R charging and recovery work, including applications involving A3 flammable refrigerants.

Features:

• 275 lb. (125 kg) capacity platform designed to fit all tank sizes and HVACR applications
• Wired handpiece with bright, backlit LCD display
• Bluetooth connectivity with free mobile app
• 0.1 oz (3 g)  resolution for critical charging of all refrigerants including A3 flammables
• Compatible with small charge adapter kit (PN 501-601-G1) for mounting A3 refrigerant bottles
• OTA remote upgradeable

FEATURES

• 125 kg (275 lb) maximum weighing capacity
• 3 g (0.1 oz) display resolution for precise refrigerant charging
• Accuracy of ±0.06% of reading or ±3 g, whichever is greater
• Wired handpiece with bright, backlit full-colour LCD
• Bluetooth connectivity for wireless operation through the Wey-TEK Pro mobile app
• Mobile app supports audible and visual alarms
• Allows job logs, photos, and customer information to be saved and shared through the app
• Supports over-the-air (OTA) software upgrades
• Compatible with the optional 501-601-G1 Small Charge Adapter Kit
• Suitable for critical charging of refrigerants, including A3 flammable refrigerants
• IP44 rated and A2L certified

INCLUDES

• 1 × INFICON Wey-TEK Pro Refrigerant Charging Scale
• 1 × Magnetic Handpiece Strap
• 3 × AA Batteries, installed
• 1 × Carrying Case

SPECIFICATIONS

• Product Type: Refrigerant Charging Scale
• Weighing Capacity: 125 kg (275 lb)
• Accuracy: ±0.06% of reading or ±3 g, whichever is greater
• Display Resolution: 3 g (0.1 oz)
• Display Type: Backlit Full-Colour LCD
• Display Units: kg, g, lb, oz, lb/oz
• Connectivity: Bluetooth
• Power Supply: 3 × AA Batteries
• Battery Life: Up to 150 Hours, depending on display dimming settings
• Product Weight: 2.88 kg, including batteries
• Platform Dimensions: 280 × 280 × 37 mm
• Platform Diagonal: 335 mm
• Protection Rating: IP44
• Certifications: A2L Certified, CE, UKCA
• Warranty: 2 Years
