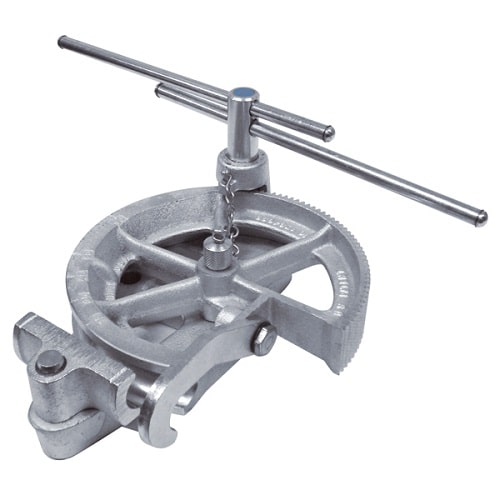

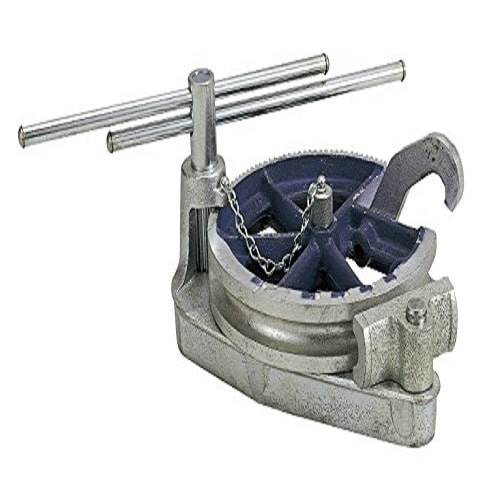

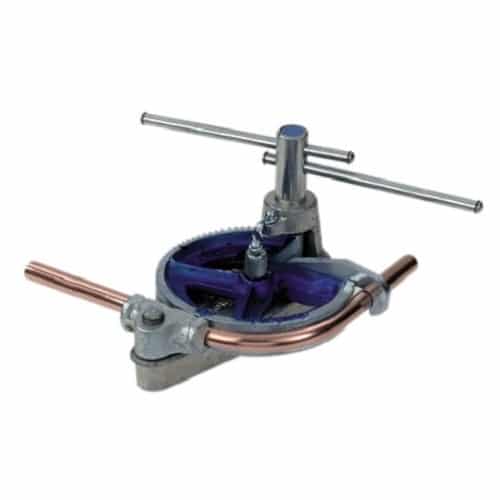

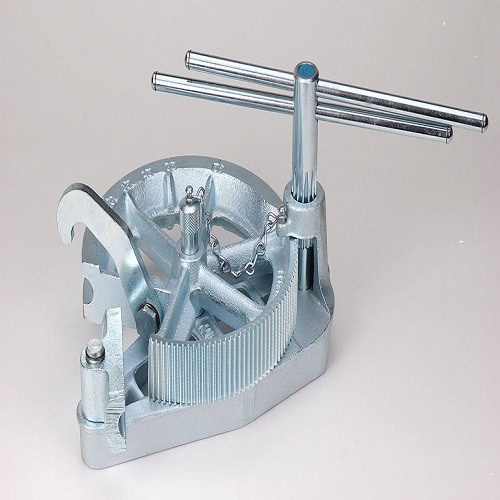

For all bending work. Spur-gear type with 10-to-1 ratio for easy bending of tempered tubing.
Floating shoe aligns the tube perfectly on a calibrated forming wheel. Pull-pin on wheel speeds repositioning for bends over 90°.

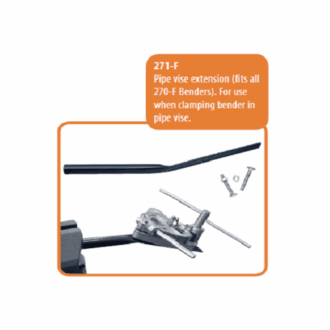

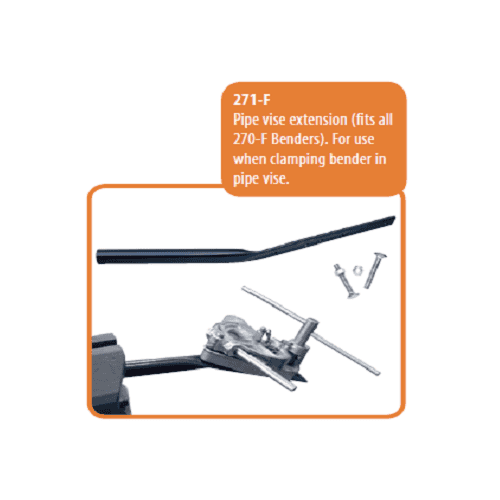

A Portable Bender which can be handheld, clamped in a vise, or bolted to bench. Adapts to pipe vise with handle 271-F.
* Not recommended for Type L Hard and Type M copper tubing with a wall thickness over .065”.
FEATURES:
- Easy to use for all bending work
- Perfect bend every time
- Heavy duty
- Vise mounted or handheld.
INCLUDES:
IMP-270F18 – 1, 1/8″ OD Tube
SPECIFICATIONS:
| PART NO. | TUBE O.D. (in.) | RADIUS TO CENTER OF TUBE (in.) | MIN. RETURN FROM CENTER TO CENTER OF TUBE (in.) | WEIGHT EACH (lbs.) | WALL THICKNESS (in.) |
| IMP-270F18 | 1-1/8 | 4 | 9-1/2 | 14.75 | .065 to .095* |
* Not recommended for Type L Hard and Type M copper tubing with a wall thickness over .065”.
