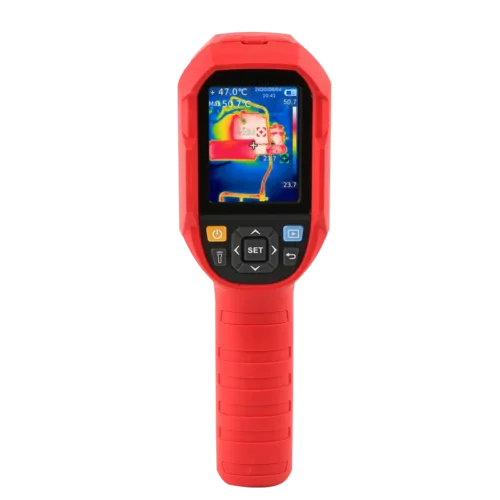

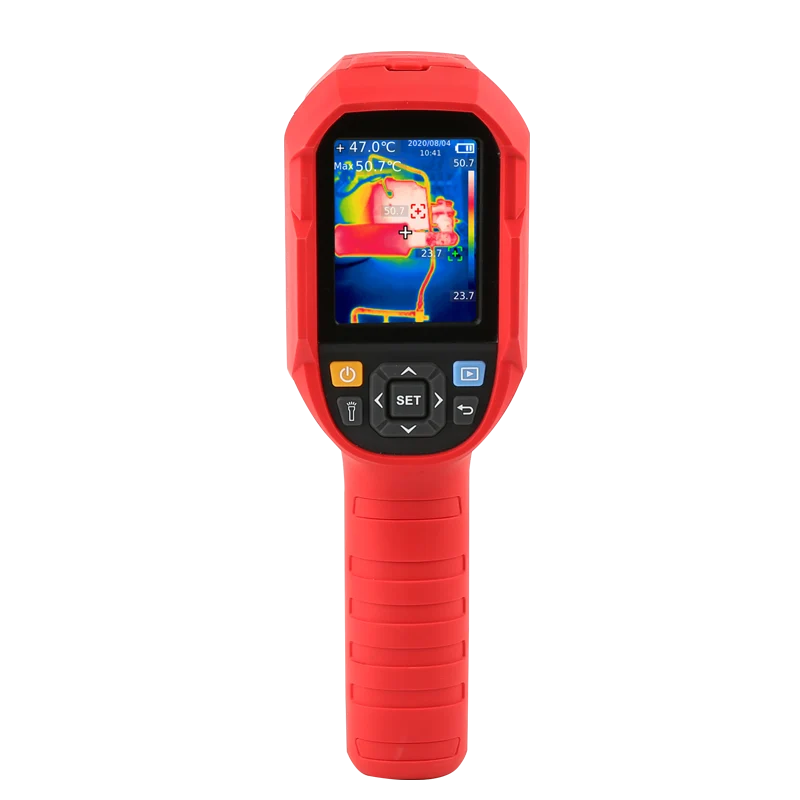

UNI-T UTi720A Heavy Duty Thermal Camera

The UNI-T UTi720A Heavy Duty Thermal Camera is a rugged professional thermal imager featuring 256 × 192 IR resolution, a -20°C to 400°C temperature range, and high thermal sensitivity for detecting temperature abnormalities in HVAC, electrical, mechanical, automotive, and industrial equipment.

FEATURES

• 256 × 192 infrared resolution for detailed thermal imaging
• Wide temperature measurement range from -20°C to 400°C
• Thermal sensitivity (NETD) ≤50 mK
• Fast frame rate up to 25 Hz
• 2.8″ TFT LCD display with 320 × 240 resolution
• Focus-free operation for quick inspections
• 7 selectable colour palettes
• 3-point on-screen temperature analysis
• High/low temperature alarm
• Built-in LED flashlight
• PC software for thermal image analysis
• IP65 dust and water protection
• 2 m drop-resistant construction
• Up to 32 GB Micro SD card storage
• Rechargeable 5000 mAh Li-ion battery with ≥7 hours of operating time
• USB Type-C connectivity

INCLUDES

• 1 × UNI-T UTi720A Heavy Duty Thermal Camera
• 1 × Micro SD Card
• 1 × USB Type-C Cable
• 1 × English User Manual
• 1 × Documents Download Operation Guide Card

SPECIFICATIONS

• Product Type: Heavy-Duty Thermal Camera
• IR Resolution: 256 × 192 pixels
• Display: 2.8″ TFT LCD, 320 × 240
• Temperature Range: -20°C to 400°C (-4°F to 752°F)
• Accuracy: ±2°C or ±2%, whichever is greater
• Thermal Sensitivity (NETD): ≤50 mK
• Field of View (FOV): 56° × 42.2°
• Spatial Resolution (IFOV): 3.8 mrad
• Frame Rate: ≤25 Hz
• Spectral Range: 8–14 µm
• Focus: Focus Free
• Emissivity: 0.01–1.00 adjustable; 0.95 default
• Colour Palettes: 7
• On-Screen Analysis: 3 points
• Battery: 3.6V 5000 mAh rechargeable Li-ion
• Battery Operating Time: ≥7 hours
• Connection: USB Type-C
• Storage: Up to 32 GB Micro SD card
• Protection Rating: IP65
• Drop Resistance: 2 m
• Certifications: CE, FCC, RoHS
• Dimensions: 236 × 75.5 × 86 mm
• Net Weight: 490 g
