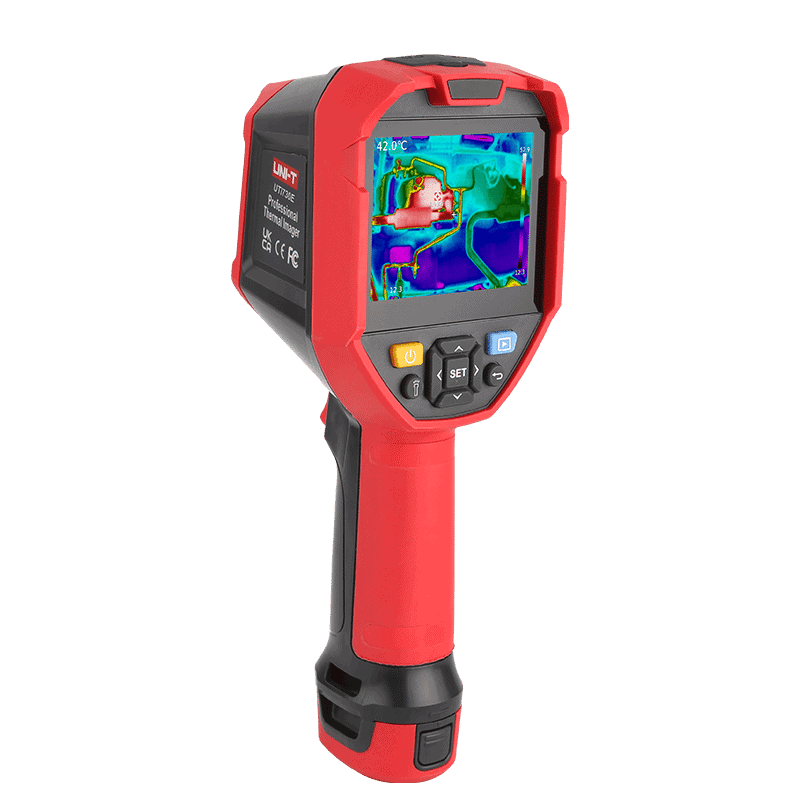

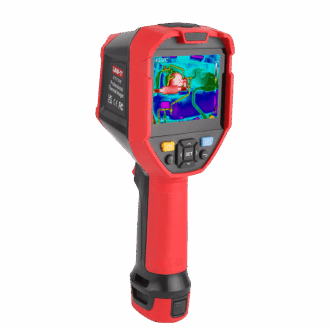

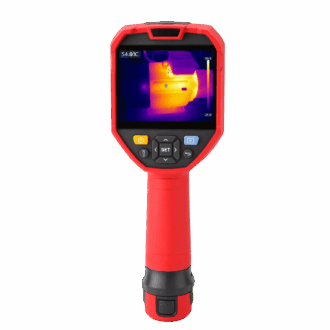

Uni-T UTi730E Enhanced Thermal Camera

UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s 5200mAh detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.

$1,983.99 ex. GST $1,785.59 ex. GST
$2,281.59 incl. GST $2,053.43 incl. GST

Please allow up to 14 days for item to be shipped

Everyday Low Trade Price
Free Delivery within New Zealand*
30 Day Hassle Free Returns

UTi730E is an advanced thermal camera with Wi-Fi capability. Its large 3.5” IPS display screen can clearly display 320×240 thermal resolution 2MP visual camera, or a blended image of both. UTi730E’s detachable battery pack is also convenient for easy and quick battery change, allowing continuously work for long periods of time.

Features :

  • 3.5” IPS display screen (640×480 Pixels)
  • IR resolution: 320×240
  • Temperature measurement range: -40℃ to 400℃ / -40℉ to 752 ℉
  • Auto alarm for high/low temperature
  • Auto tracking for hot spot/cold spot
  • On display screen analyzer : Point 5/Line 1/Rectangle 3/Circle 3
  • Image capture
  • Digital camera resolution: 2MP
  • Digital zoom: 2x, 4x
  • Image modes: Thermal,Visual image,Fusion,PIP
  • Color palettes: 7 (White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
  • Isotherm (Auto/Ratio/Below/Above/Section/Manual)
  • LED flashlight
  • Wi-Fi connection through Mobile APP
  • QR Code – photo management
  • PC software: analysis and real-time image projection
  • 5200mAh replaceable battery pack (Type C rechargeable)
  • 1/4”tripod mounting hole
  • IP54
  • 2m drop proof

Includes:

1 x UTi730E, 1  16 Micro SD card,1 x Type-C USB cable, 1 x English manual, 1 x Li-ion battery pack, 1 x 12 Month Warranty

Specifications:

Technical Data
IR resolution (Pixels) 320×240
Display 3.5‘’IPS (640*480)
Field of view(FOV) 56°×42°
Thermal sensitivity(NETD) ≤65mK @25℃
Spatial resolution(IFOV) 3mrad
Frame rate ≤9Hz
Focus Focus Free
Temperature measurement range  -40℃~400℃
Accuracy ±2℃ or ±2%
whichever is greater
Emissivity 0.01~1.00 adjustable
(0.95 default)
Functions
Color palettes 7
(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer Point 5/Line 1/Rectangle 3/Circle 3
Digital camera resolution 2MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon,LED flashlight
Isotherm 6
(Auto/Ratio/Below/Above/Section/Manual)
PC software analysis
Wi-Fi
General Characteristics
Battery Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time  ≥ 4 hours (without Wi-Fi)
USB Type-C
IP rating IP54
Drop proof 2m
Storage 16G Micro SD card
Image/Video storage format JPEG
Certificates CE,UKCA,FCC,RoHS
Product net weight 630g
Product size 260mm×97mm×99mm
Packing Details
Standard accessories Micro SD card,Type-C USB cable, English manual, Li-ion battery pack

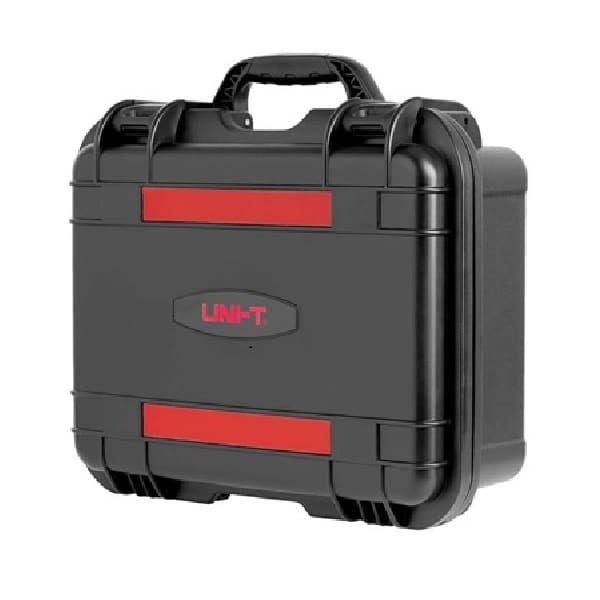

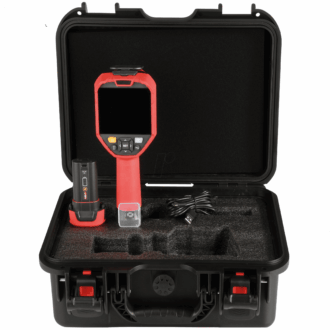

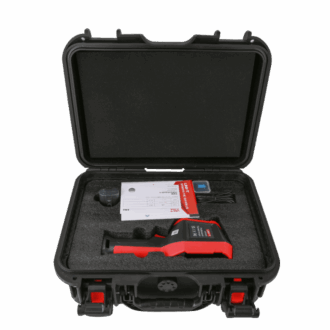

Standard individual packing Toolbox,Gift box
Standard Qty per carton 1
Standard carton size 400mm×185mm×345mm
Standard carton G.W. 3.6kg



Video

Technical Documents

UTi730EUTi720EUserManual-English
