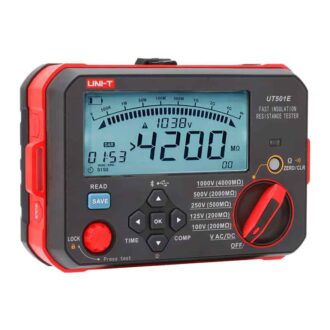

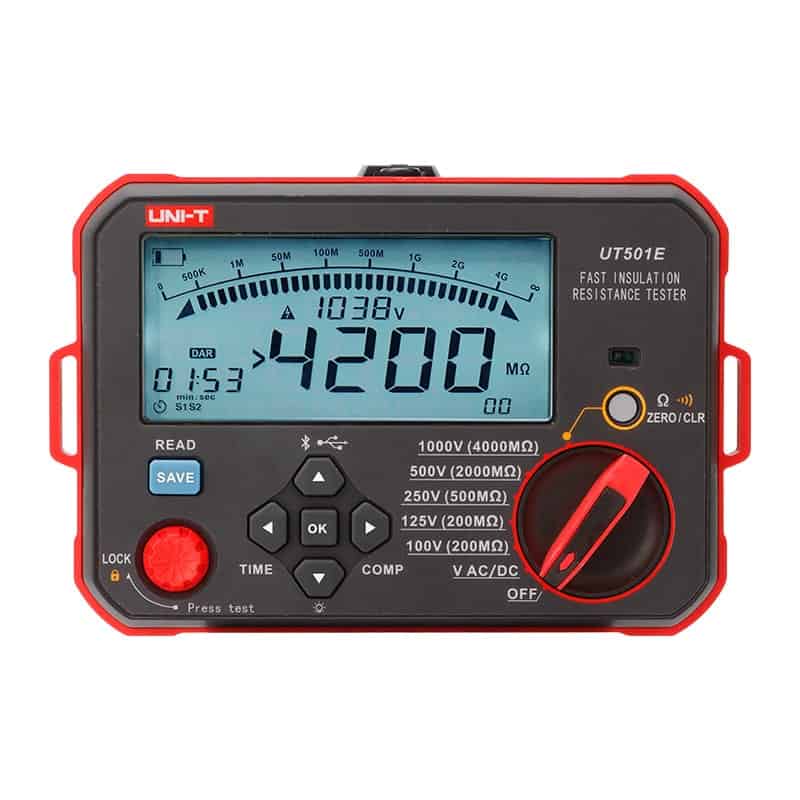

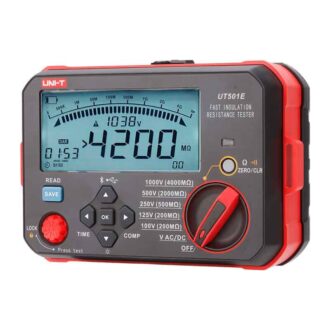

UT501E can verify the quality of the electrical equipment produced, confirm the change of the insulation of the electrical equipment over time, troubleshoot and determine the cause of the fault.
It features 2.5 times fast measurement, comparison test function and alarm function, and the βsafety lock functionβ prevent false and effectively improve the work efficiency of electrical engineers. It is a convenient and practical tool.
Features:
Certifications: ROW
β Output voltage:100V, 125V, 250V, 500V, 1000V
β Insulation resistance: 0~4G
β 2.5 times faster measurement
β Comparison test function
β PI & DAR function
β Auto discharge
β Alarm function (Audible & Visible alarm)
β Data storage: 99 groups
β PC software analysis (via USB cable)
β Remote control test lead
β Lock function: to prevent false triggering
β Rechargeable lithium battery (12V, 2600mAh)
β IP54
β Category rating: CAT III 600V
Specifications:Β
| Technical Specifications | |||
| Insulation resistance (0ο½4οΌ§Ξ©) | 100οΌΆ | 0.10~20.0M | Β±(2%+6) |
| 20.1~200M | Β Β±(5%+6) | ||
| 125οΌΆ | 0.10~20.0M | Β±(2%+6) | |
| 20.1~200M | Β Β±(5%+6) | ||
| 250οΌΆ | 0.20~40.0M | Β±(2%+6) | |
| 40.1~500M | Β Β±(5%+6) | ||
| 500οΌΆ | 0.5~200M | Β±(2%+6) | |
| 201~2000M | Β Β±(5%+6) | ||
| 1000οΌΆ | 1.00~1000M | Β±(2%+6) | |
| 1001~4000M | Β Β±(5%+6) | ||
| Low resistance measurement | 0.00Ξ©ο½400Ξ© | Β Β±(2%+8) | |
| AC voltage | 30V~600V; 50Hz/60Hz | Β Β±(2%+3) | |
| DC voltage | 30V~600V | Β±(2%+3) | |
| Rated current | 1.0mA | ||
| short circuit current | <2.0mA | ||
| Features | |||
| Fast measurement | β (2.5 times faster insulation measurement) | ||
| DAR | β | ||
| PI | β | ||
| Compare function | β | ||
| Auto discharge | β | ||
| High voltage alarm | β | ||
| Manual range(insulation) | β | ||
| Auto range(voltage) | β | ||
| data storage | 99 set | ||
| Overrange display | OL | ||
| Security lock | β | ||
| Remote testing | β | ||
| analog strip | β | ||
| IP rating | IP54 | ||
| CAT rating | γCAT III 600V | ||
| Other features | Backlight, Auto power off, Low battery indication | ||
| General Characteristics | |||

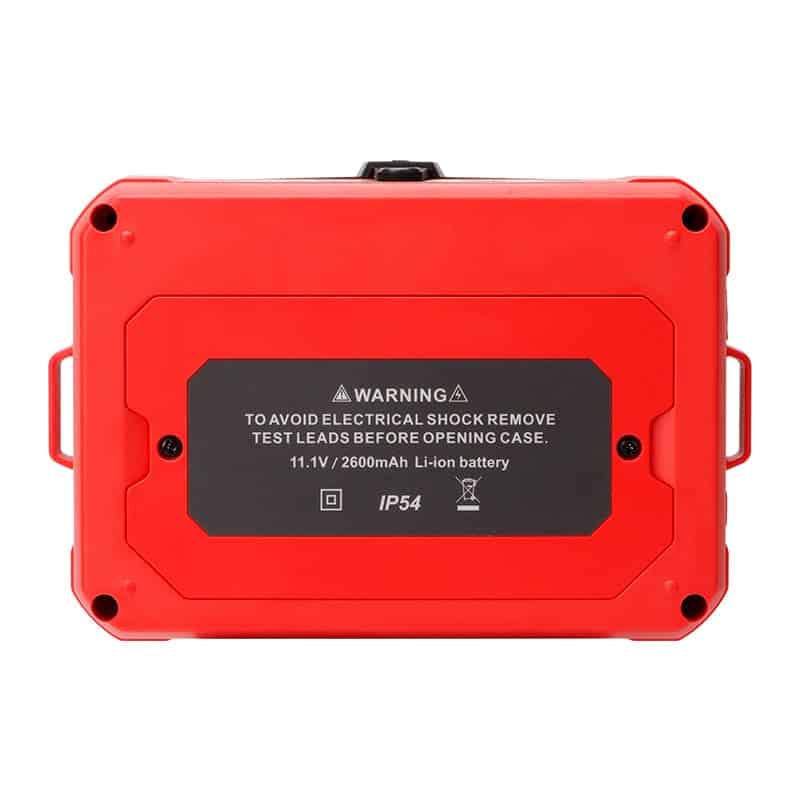

| Power supply | 11.1V/2600mAh lithium battery | ||
| Product Color | Black + Red | ||
| Product Dimension | 161 * 116 * 68mm | ||
