Tasco Digital Multi Meter

The TASCO Pocket Digital Multimeter is a compact and portable measuring instrument designed for electrical, electronic, and HVAC maintenance. It provides accurate AC/DC electrical measurements in a pocket-sized form factor, making it ideal for field technicians and service professionals. Depending on the model, it offers advanced features such as True RMS measurement or an integrated AC/DC clamp, delivering reliable performance for troubleshooting, inspection, and routine maintenance. Its easy-to-read display and energy-saving design ensure convenient operation in various working environments.

FEATURES:

• Display with 3400 count bar graph.
• Auto power save function (approx. 10 minutes).
• Heavy-duty design with pocket size and shock-absorbing holster.

OPTIONS:

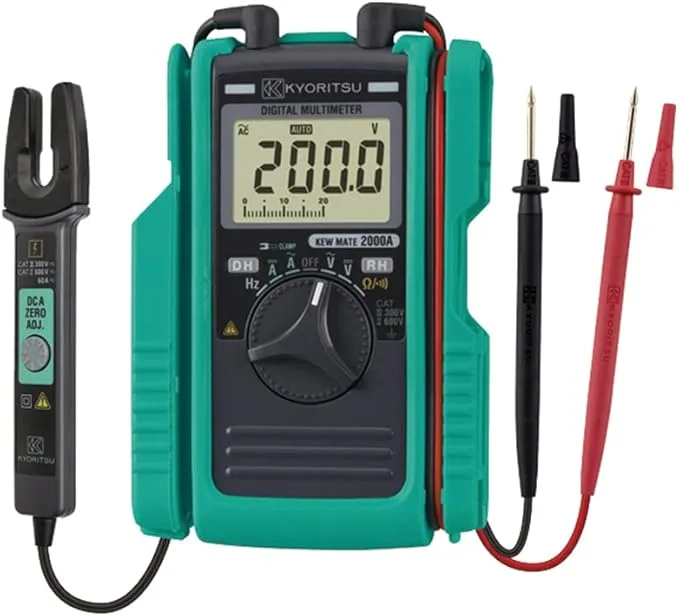

• TA452EJ – 1 X DIGITAL MULTI METER WITH AC/DC CLAMP

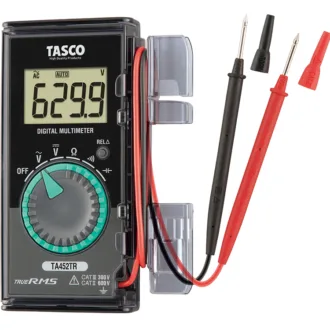

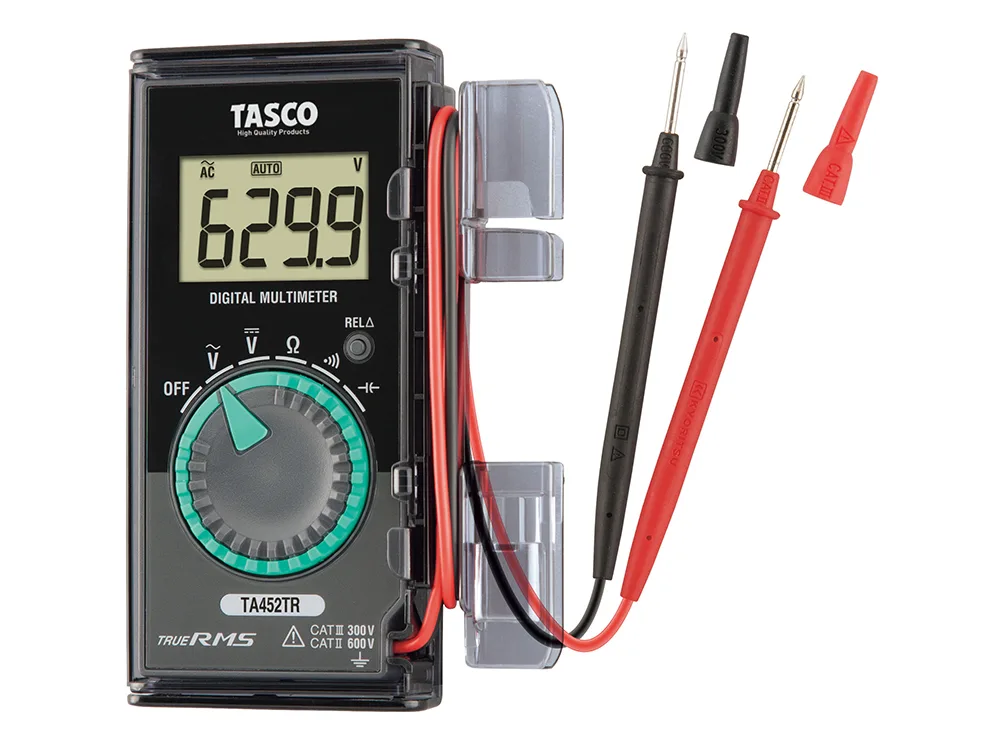

• TA452TR – 1 X DIGITAL MULTI METER (CELL. PACKED)

SPECIFICATIONS:

TA452EJ

• DC Voltage: 340 mV / 3.4 V / 34 V / 340 V / 600 V
• AC Voltage: 3.4 V / 34 V / 340 V / 600 V
• DC Current: 60 A
• AC Current: 60 A
• Resistance: 340 Ω / 3.4 kΩ / 34 kΩ / 340 kΩ / 3.4 MΩ / 34 MΩ
• Continuity: Buzzer (≤30 ± 10 Ω)
• Current Frequency: 3.4 kHz / 10 kHz
• Voltage Frequency: 3.4 kHz / 34 kHz / 300 kHz
• Frequency Input Sensitivity: Current 15 A, Voltage ≥30 V
• Maximum Clamp Diameter: Ø6 mm
• Power Supply: 2 × AAA R03 (1.5 V) Batteries
• Dimensions: 87 × 21 × 128 mm
• Weight: Approx. 210 g
• Included Accessories: 2 × AAA R03 Batteries, Instruction Manual

TA452TR

• DC Voltage: 600 mV / 6 V / 60 V / 600 V
• Power Supply: 1 × CR2032 3V Coin-Type Lithium Battery
• Dimensions: 85 × 18 × 126 mm
