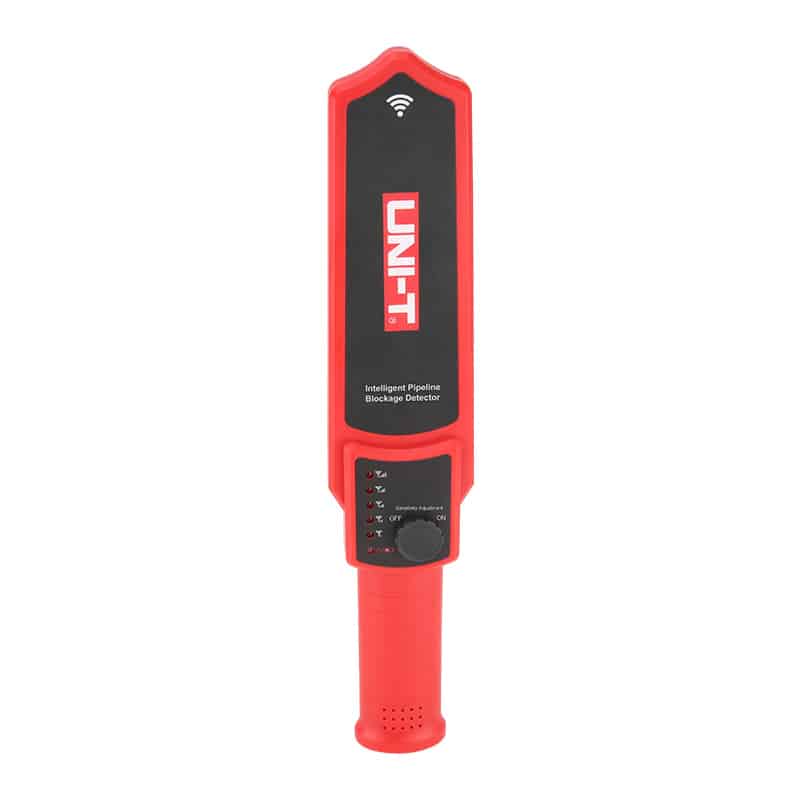

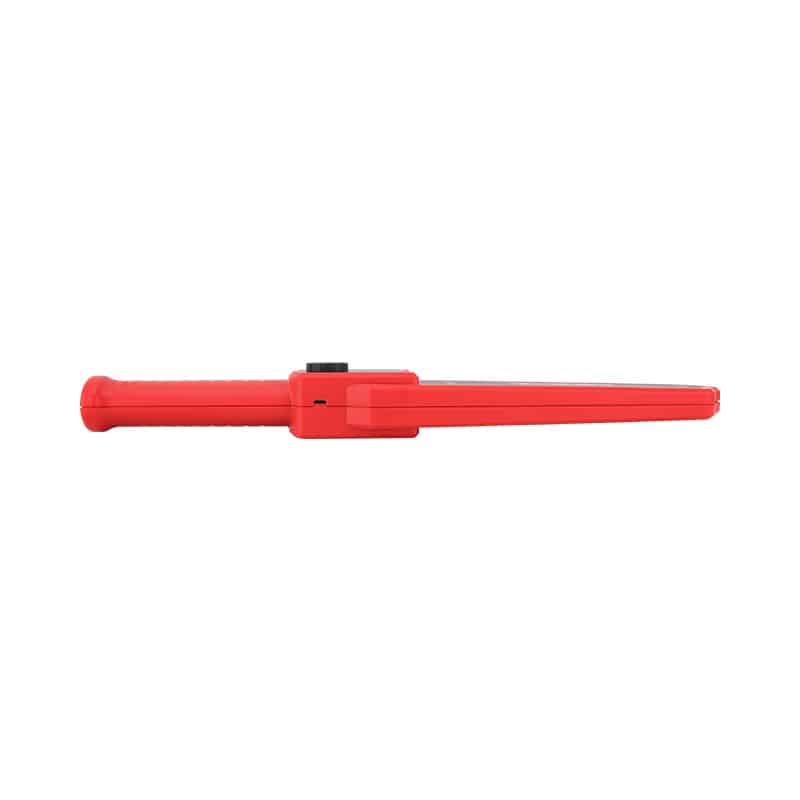

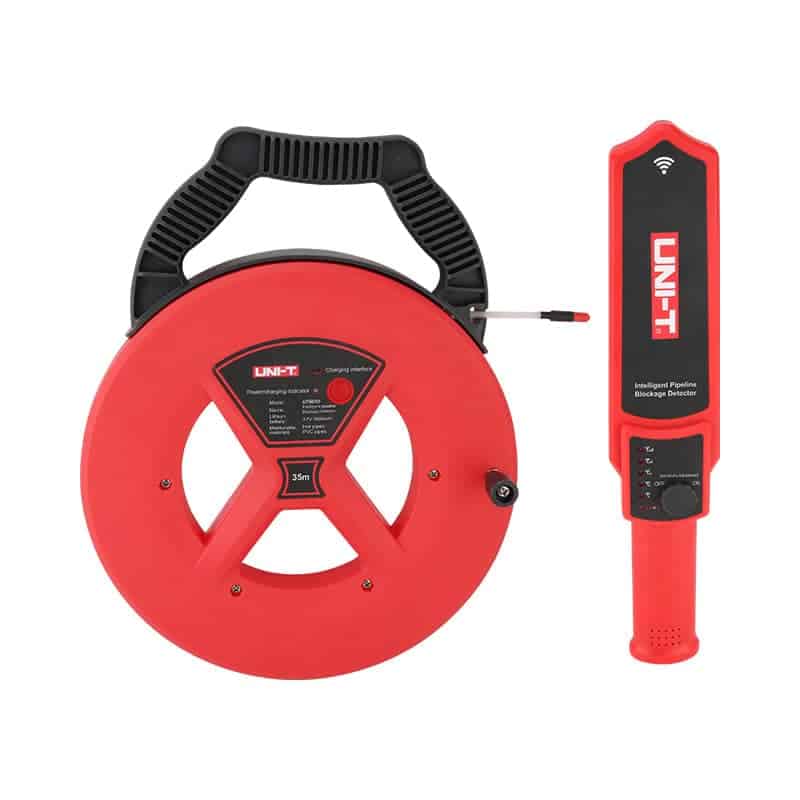

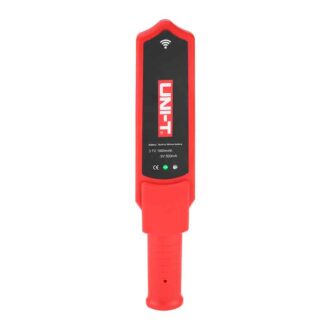

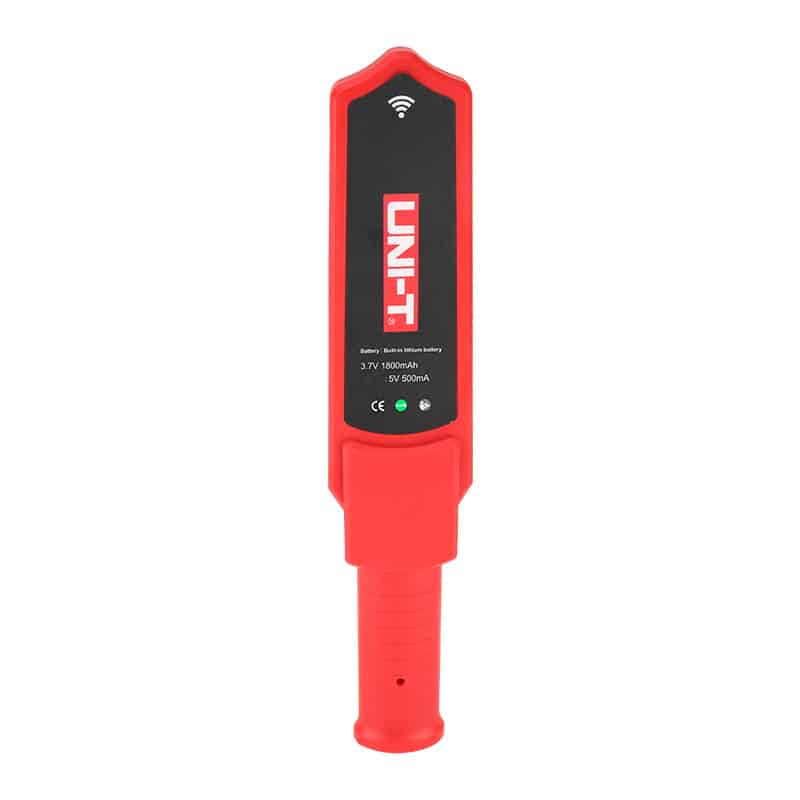

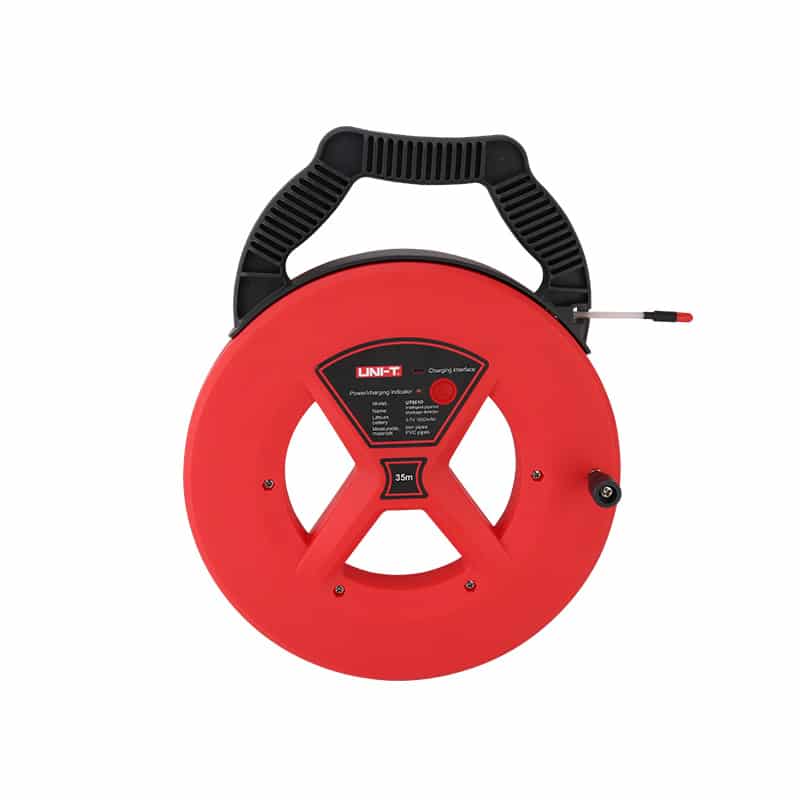

The UT661D pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 35m. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
FEATURES:
- The location of the blockage in the pipe can be detected
- Measurable pipe material: plastic pipes, metal pipes
- Maximum detection distance(depth): 50cm
- Buzzing prompt and Flash prompt.
INCLUDES:
1 x UT661D, Charging cable, Probe kit, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | UT661D |
| Transmitter | Yes |
| Signal wire | 35m |
| Receiver | Yes |
| Maximum detection distance（depth） | 50cm |
| Transmitter current | Shutdown current: <2uA, working current: 230~310mA |
| Receiver current | Shutdown current: <2uA, standby current: <40mA Maximum working current: 150~450mA (Distance 1cm) |
| Charging current | 450~550mA |
| Test the output sound at a distance of 1cm | >93dB |
| Test the output sound at a distance of 0.5m | >75dB |
| Battery duration | 10 hours |
| Operating temperature and humidity | -20°C~60°C, 10~80%RH |
| Measurable pipe material | Plastic pipes, metal pipes |
| Buzzing prompt | Yes |
| Flash prompt | Yes |
| Low battery indication | Yes |
| Waterproof grade | Probe waterproof IP67 |
| General Characteristics | |
| Transmitter battery | Built-in lithium battery (3.7V 1800mAh) |
| Receiver battery | Built-in lithium battery (3.7V 1800mAh) |
| Colour | Red and grey |
| Weight | Transmitter: 1.42KG Receiver: 0.26KG |
| External dimension | Tansmitter: 38x30x42mm Receiver: 40x38x80mm |
| Standard accessories | Charging cable, Probe kit |
| Standard individual packing | Box, English manual, Warranty card |
