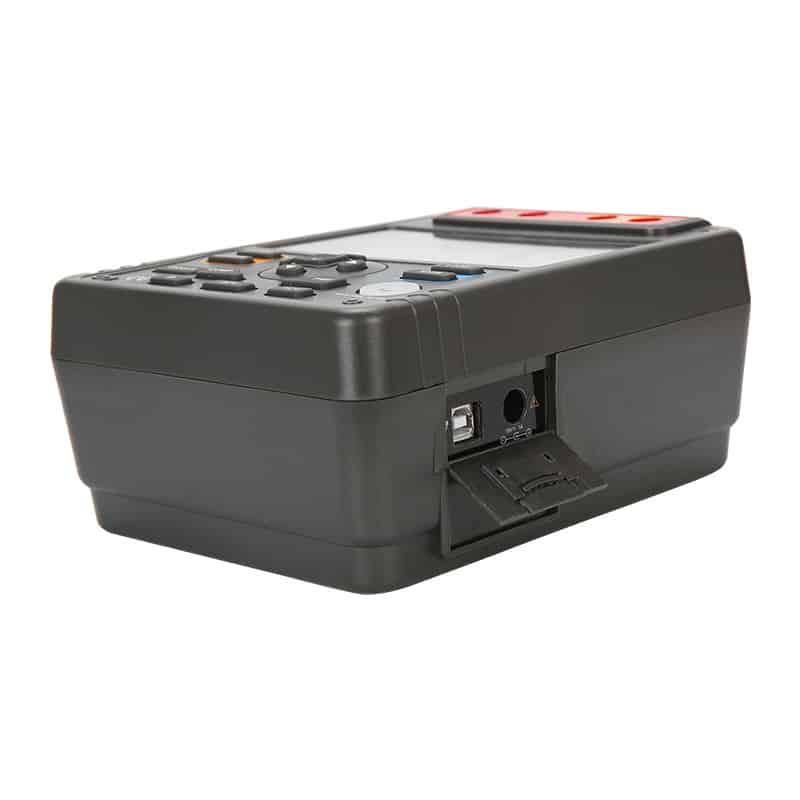

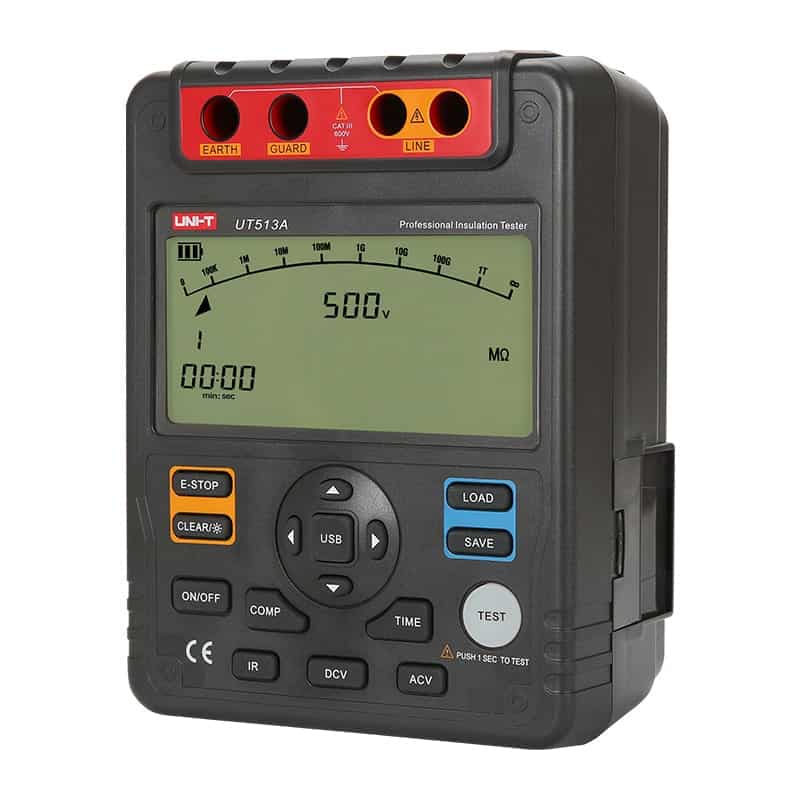

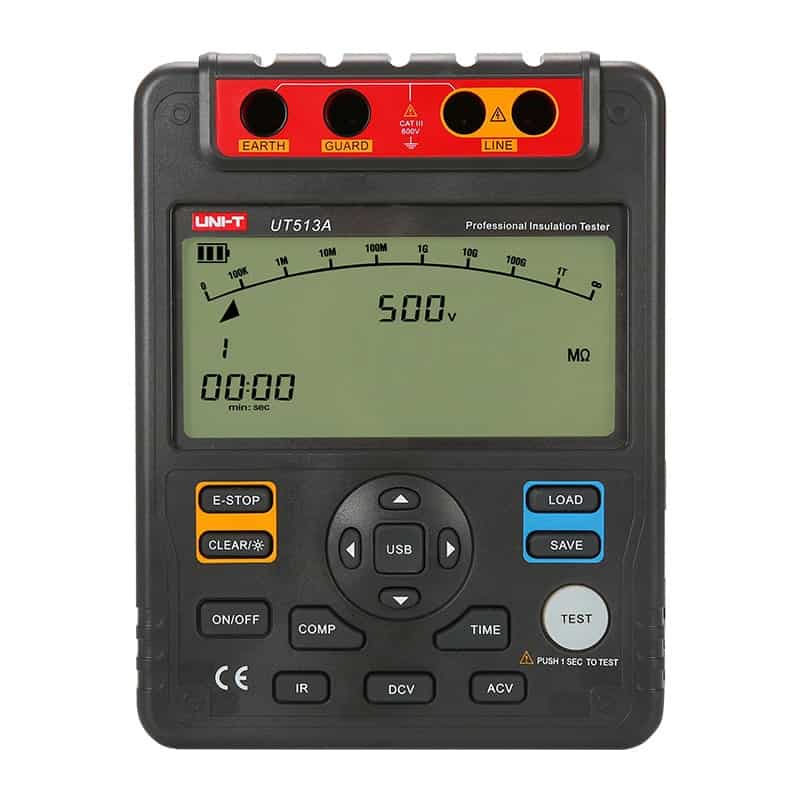

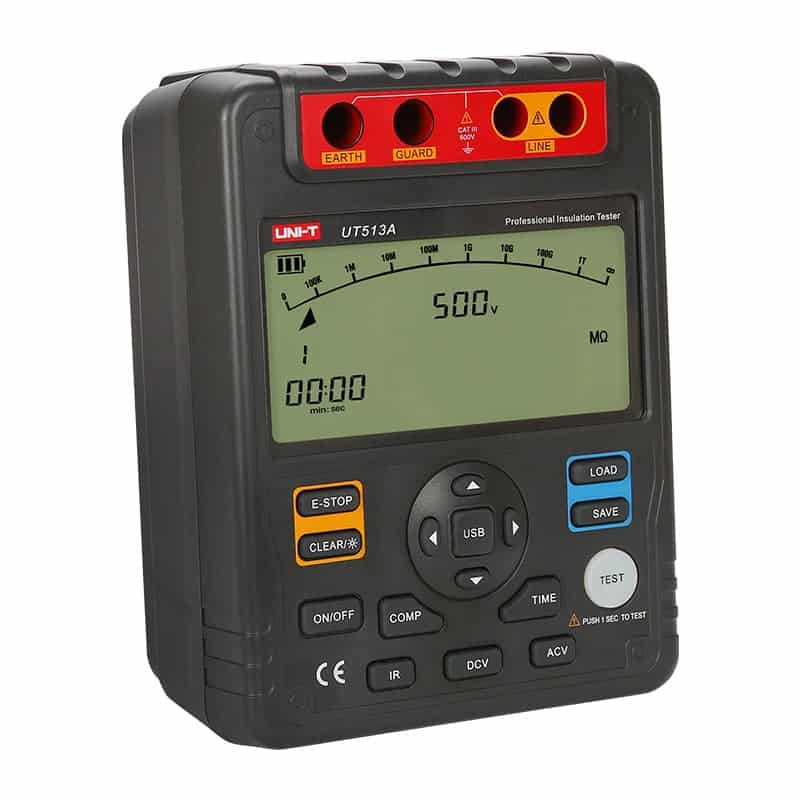

UT513AÂ tester can measure the insulation resistance of large transformers, generators, high-voltage motors and more. UT510 series can also measure PI, DAR and other important specifications. Measured data can then be analyzed through PC software. UT513A can produce a test voltage of up to 5kV.
FEATURES:
- Large 9999 display with 30-segment analog bar graph
- PI/DAR measurements
- Comparison, upper and lower limit functions
- Continuous measurement mode
- Auto power off
- 18-group data storage
- Backlight
- Auto current discharge and high-voltage output alarm
- Time measurement mode, auto measure within 15 minutes
- Low battery and over-range indications.
INCLUDES:
1 x UT513A, 1 x English manual and 12-month warranty
SPECIFICATIONS:
| Specifications | Range | UT511 | UT512 | UT513A | |
| Insulation resistance (Ω) | Test voltages | 100V~1000V | 0%~10% | ||
| 500V~2500V | 0%~20% | ||||
| 500V~5000V | 0%~20% | ||||
| 100V | 0.1MΩ~500MΩ | ±(3%+5) | |||
| 250V | 0.5MΩ~2GΩ | ±(3%+5) | |||
| 500V | 1MΩ~4GΩ | ±(3%+5) | |||
| 0.5MΩ~5GΩ | ±(3%+5) | ||||
| 0.5MΩ~20GΩ | ±(3%+5) | ||||
| 1000V | 2MΩ~10GΩ | ±(3%+5) | ±(3%+5) | ||
| 1MΩ~40GΩ | ±(3%+5) | ||||
| 1500V | 5MΩ~20GΩ | ±(3%+5) | |||
| 2500V | 2.5MΩ~100GΩ | ±(3%+5) | |||
| 10MΩ~100GΩ | ±(3%+5) | ||||
| 5000V | 5MΩ~1000GΩ | ±(3%+5) | |||
| DC voltage (V) | 1000V | ±(2%+3) | |||
| 600V | ±(2%+5) | ±(2%+3) | |||
| AC voltage (V) | 750V | ±(2%+3) | |||
| 600V | ±(2%+5) | ±(2%+3) | |||
| Short-circuit current | <2mA | <1.8mA | >3mA | ||
| Low resistance (Ω) | 0.1Ω~999.9Ω | ±(1%+3) | |||
| Features | |||||
| Auto range/Auto power off | √ | √ | √ | ||
| Test voltage secondary display | √ | ||||
| Low battery indication | √ | √ | √ | ||
| Data storage | 18 | 18 | 18 | ||
| Comparison measurement | √ | √ | √ | ||
| Polarization index (PI) | √ | √ | √ | ||
| Dielectric absorption ratio (DAR) | √ | √ | √ | ||
| USB interface | √ | √ | |||
| Analog bar graph | 30 | 30 | 30 | ||
| LCD backlight | √ | √ | √ | ||
| Over-range warning | √ | √ | √ | ||
| High voltage indication | √ | √ | √ | ||
| Timing measurement | Around 30 minutes | √ | |||
| Around 15 minutes | √ | √ | |||
| Meets IEC 61557 | UT513A: 61557-1:2007; 61557-2:2007 | ||||
| General Characteristics | |||||
| Power | 1.5V battery (LR14) x 8 | ||||
| Display | 123mm x 58mm | ||||
| Product colour | Red and grey | ||||
| Product net weight | UT511: 1.2kg; UT512: 1.8kg; UT513A: 2kg | ||||
| Product size | 202mm x 155mm x 94mm | ||||
| Standard accessories | 2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USBÂ cable (UT512/UT513A), PC software CD (UT512/UT513A), power adaptor (UT512/UT513A) | ||||
| Standard individual packing | Â Box, toolbox, English manual | ||||
