The UNI-T UT-T Series includes temperature probes and thermocouples designed for different measurement applications, including general temperature testing, liquid and gel measurement, gas temperature measurement, surface temperature measurement, and compatibility with selected UNI-T meters.
The supplied SKUs cover several probe designs and connection types. They should be grouped by the UT-T Series, with each model offered as a separate variation where the specifications and compatibility are confirmed. The manufacturer’s current series page lists several of these models, but UT-T19 is listed separately as a temperature clamp accessory, so it should be verified before combining it into the same variable product.
WHAT IS THIS PRODUCT USED FOR?
UNI-T UT-T Series Thermocouples and Temperature Probes are used to measure temperature in HVAC/R servicing, electrical testing, equipment maintenance, and other applications. The appropriate probe depends on the measurement surface or medium and the compatible meter.
FEATURES
- Temperature probes available for different measurement applications
- Multiple probe designs for general, liquid, gel, gas, and surface temperature measurement
- Selected models feature a 1,000 mm lead wire
- Selected models feature 180 mm or 200 mm probes
- Temperature ranges vary by model, from −40°C to 260°C for some probes to higher ranges for specialised probes
- Compatibility with selected UNI-T meters depends on the probe model
UT-T15 features a 35 mm jaw opening and a flat plug for K-type temperature meters
OPTIONS
UT-T Series – General and Specialised Temperature Probes

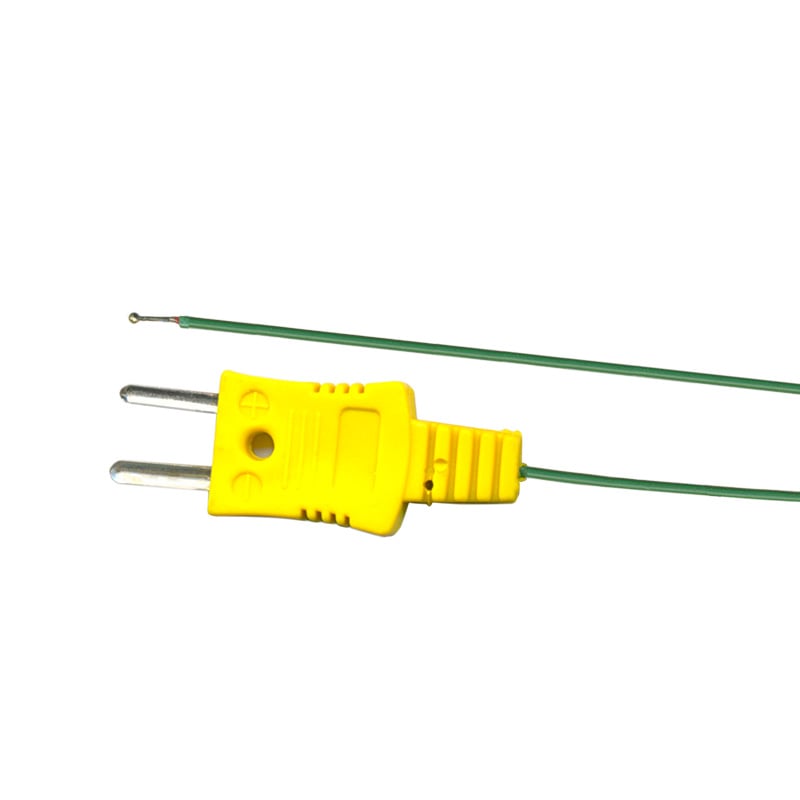

- UT-T01 – General-purpose thermocouple; Teflon-covered insulation; not for liquid measurement

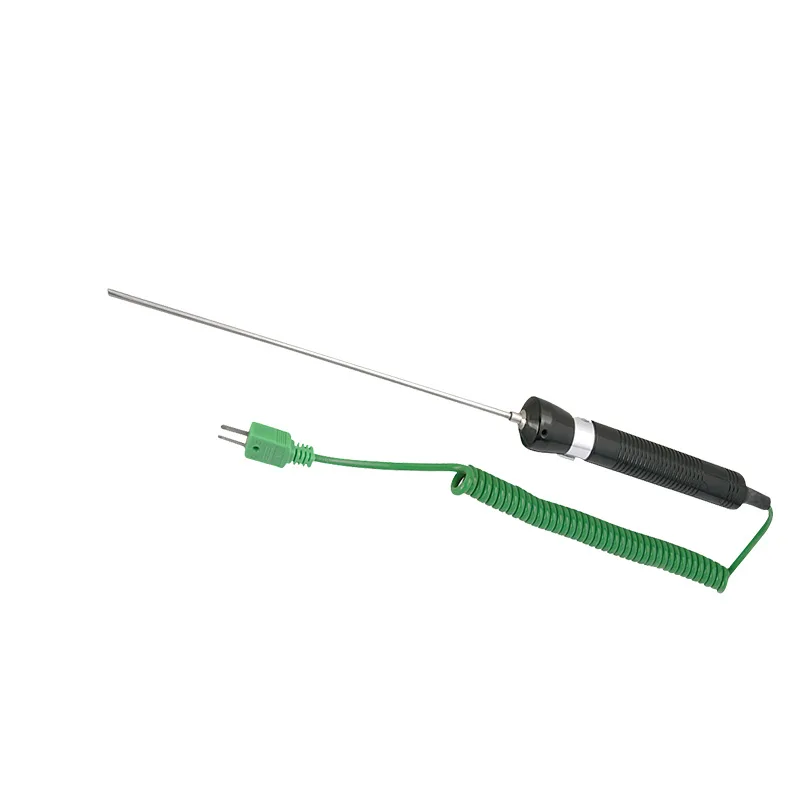

- UT-T03 – Submersible thermocouple for liquid and gel temperature measurement
- UT-T04 – Through-hole thermocouple for food and other liquid or gel temperature measurement
- UT-T05 – Gas thermocouple for air or gas temperature measurement; not for liquid measurement

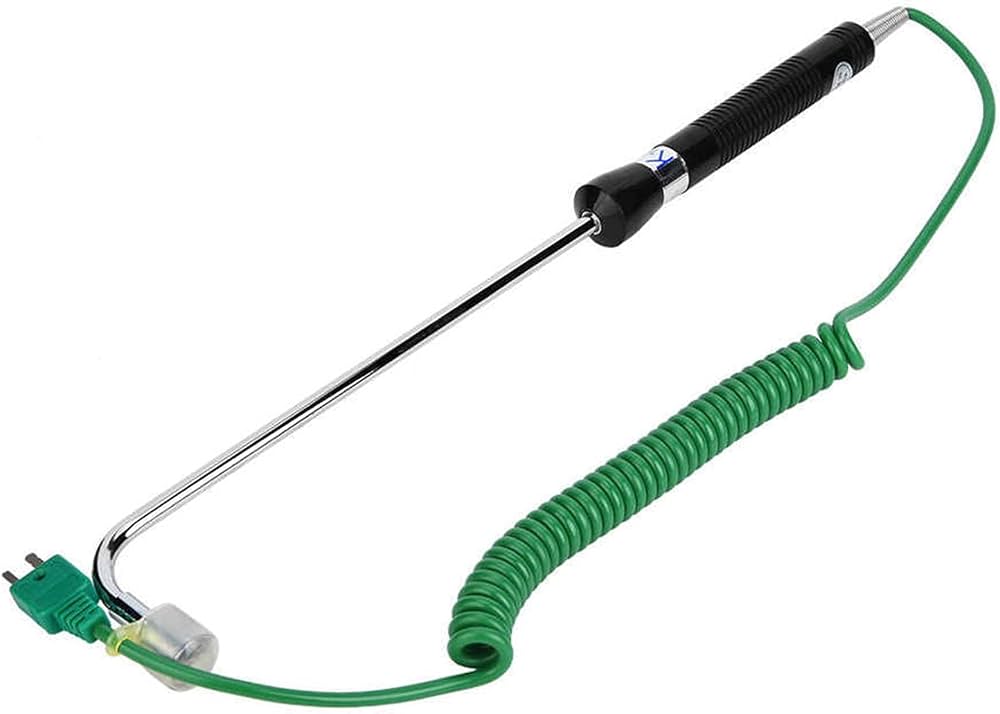

- UT-T07 – 90° bent surface temperature thermocouple for flat or slightly convex surfaces

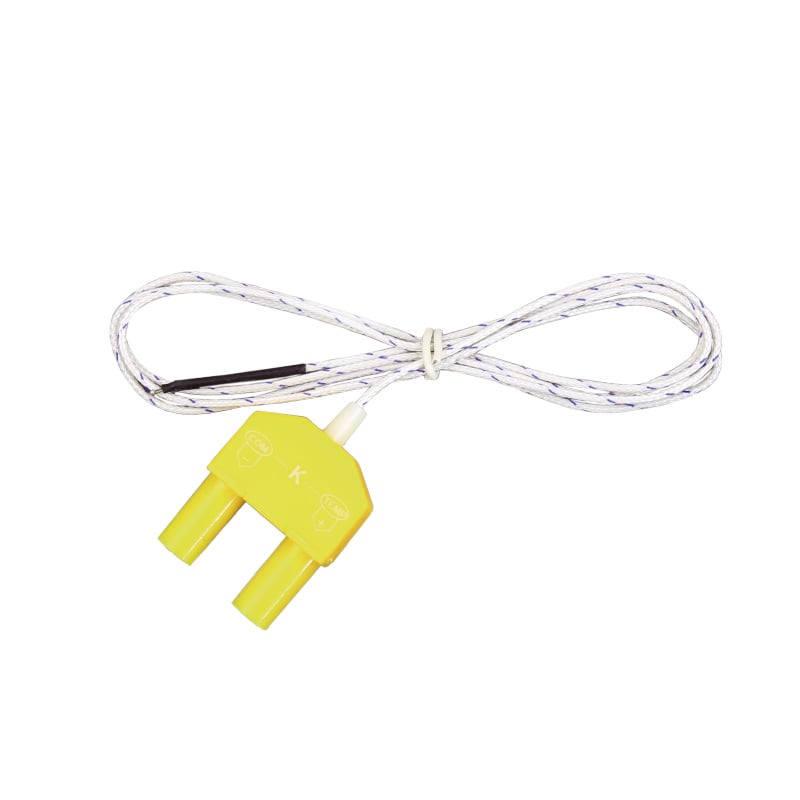

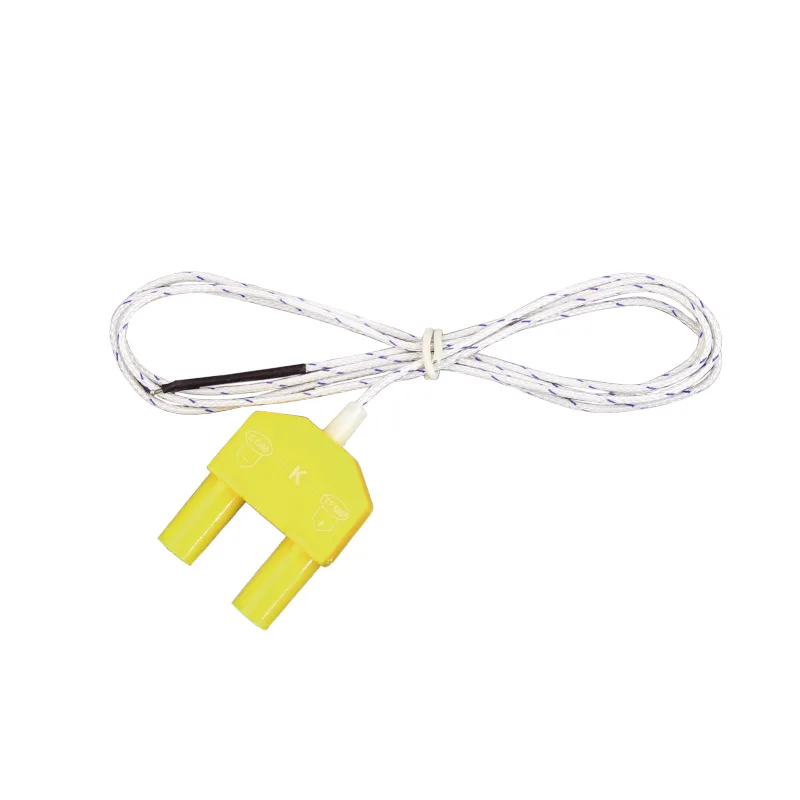

- UT-T09K – Temperature probe with crosshead socket input for selected UNI-T meters
- UT-T11 – Temperature probe with through-hole input for UT58 series and UT195M

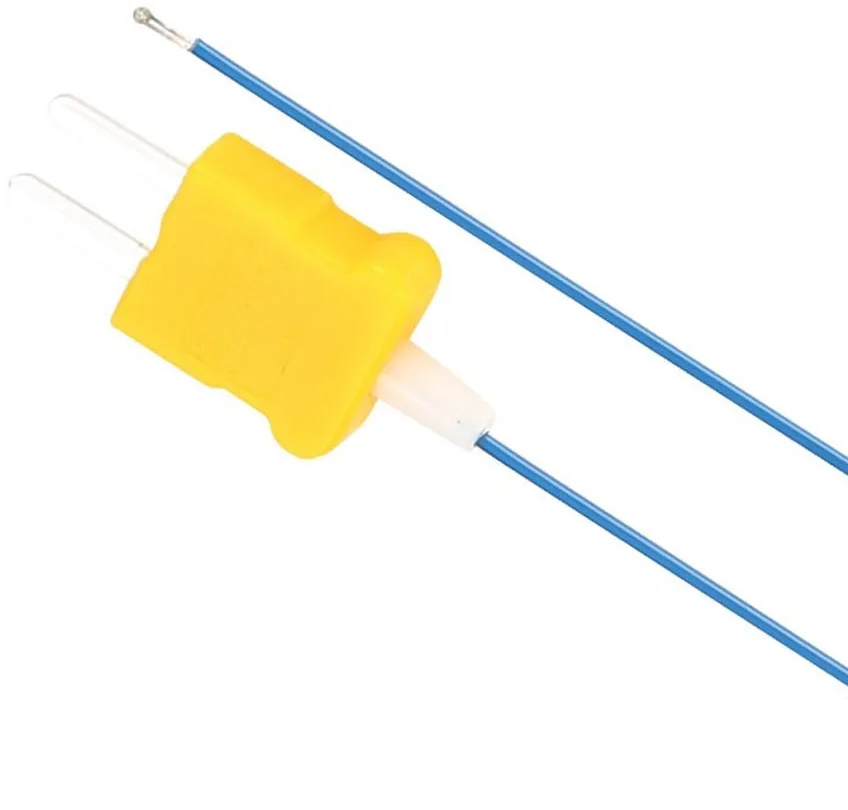

- UT-T12 – Temperature probe with through-hole input for UT321, UT322, UT325 and UT181A

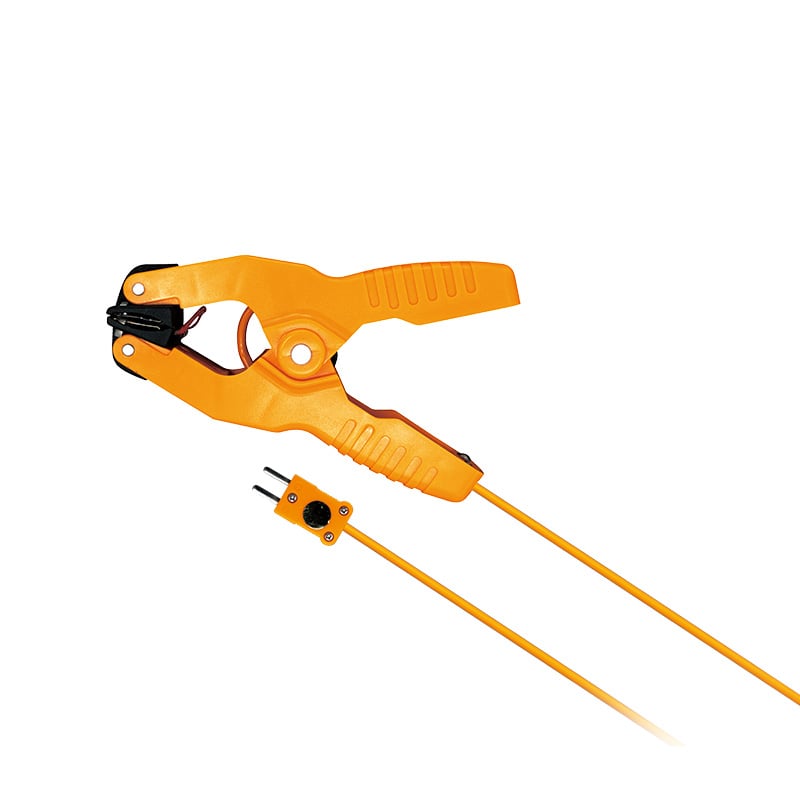

- UT-T15 – K-type temperature clamp with a 35 mm jaw opening

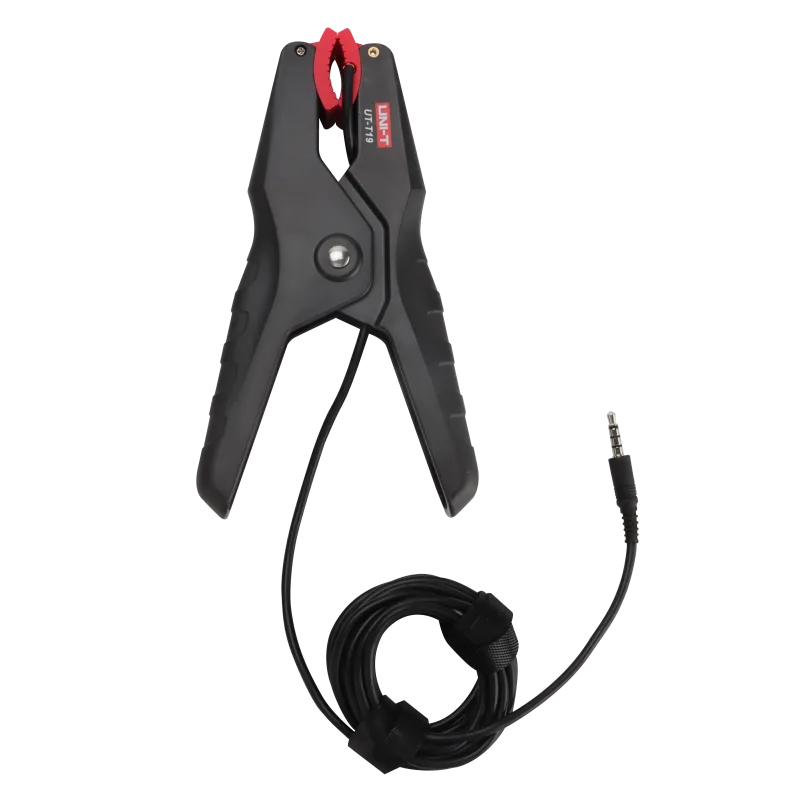

UT-T19 – Temperature clamp accessory; confirm its detailed specifications and compatibility separately
SPECIFICATIONS
| SKU | Probe / Sensor Type | Measuring Range | Probe Length / Jaw Opening | Lead Wire Length | Accuracy |
|---|---|---|---|---|---|
| UT-T01 | General-purpose thermocouple | −40°C to 260°C | Not specified | Not specified | ±0.75% |
| UT-T03 | Submersible thermocouple | −50°C to 600°C | 180 mm probe | 1000 mm | Not specified |
| UT-T04 | Through-hole thermocouple | −50°C to 600°C | 180 mm probe | 1000 mm | Not specified |
| UT-T05 | Gas thermocouple | −50°C to 900°C | 56 mm probe | 1000 mm | Not specified |

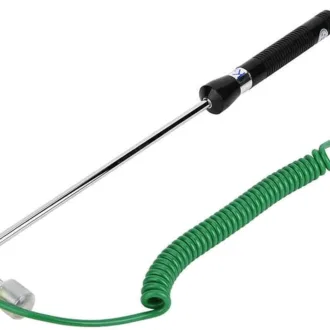

| UT-T07 | Surface temperature thermocouple, 90° bent | −50°C to 500°C | 200 mm probe | 1000 mm | Not specified |
| UT-T09K | Temperature probe, crosshead socket | −40°C to 260°C | Not specified | Not specified | ±0.75% |
| UT-T11 | Temperature probe, through-hole input | −40°C to 260°C | Not specified | Not specified | ±0.75% |

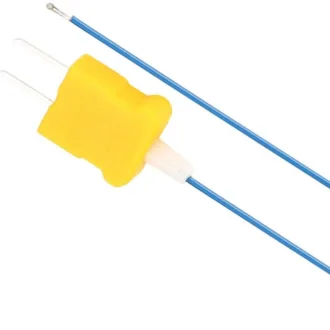

| UT-T12 | Temperature probe, through-hole input | 0°C to 800°C | Not specified | Not specified | ±0.4% of reading |
| UT-T15 | K-type temperature clamp | −40°C to 200°C | 35 mm jaw opening | Not specified | Not specified |

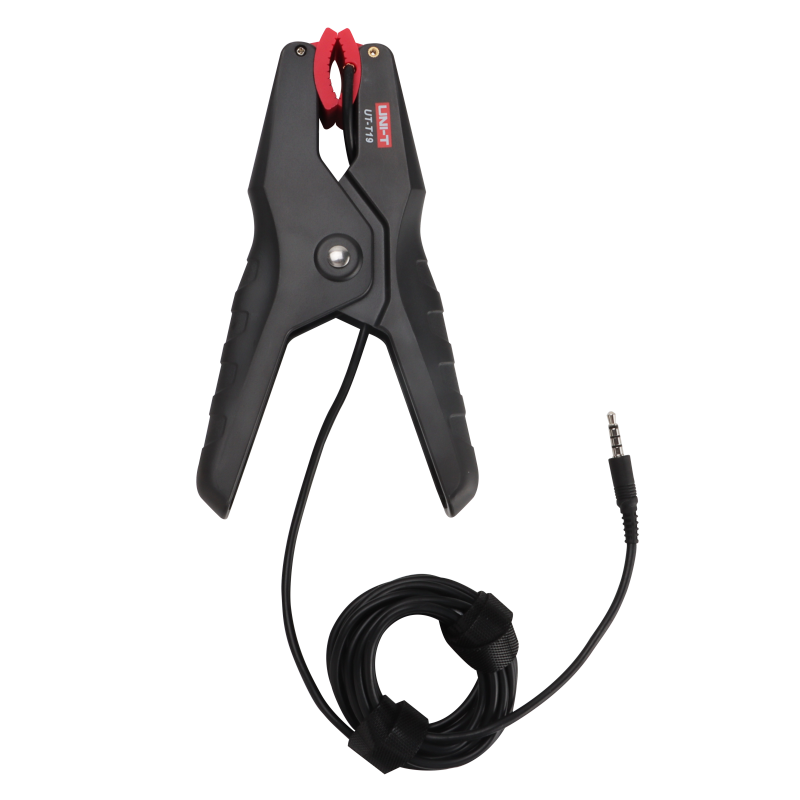

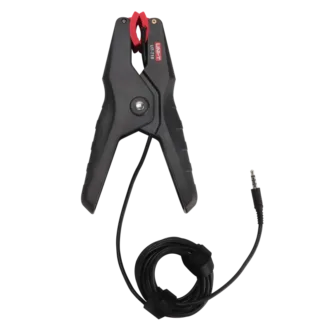

| UT-T19 | NTC temperature clamp | −50°C to +150°C | Fits pipes 6–42 mm diameter | 2 m | ±0.5°C (−50°C to 80°C); ±1°C outside this range |
GENERAL TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Product Series | UT-T Series thermocouples and temperature probes |
| Product Type | Temperature measurement accessories |
| Applications | General temperature measurement, liquid and gel measurement, gas measurement, surface measurement and HVAC/R pipe temperature monitoring |
| Sensor Types | Thermocouple and NTC, depending on model |
| Probe Compatibility | Model-specific; confirm compatibility with the intended meter |
| UT-T19 Compatibility | Designed to work with the UNI-T UT336P to monitor high- and low-pressure-side HVAC temperatures |
| UT-T19 Resolution | 0.1°C |
| UT-T19 Certification | RoHS |
