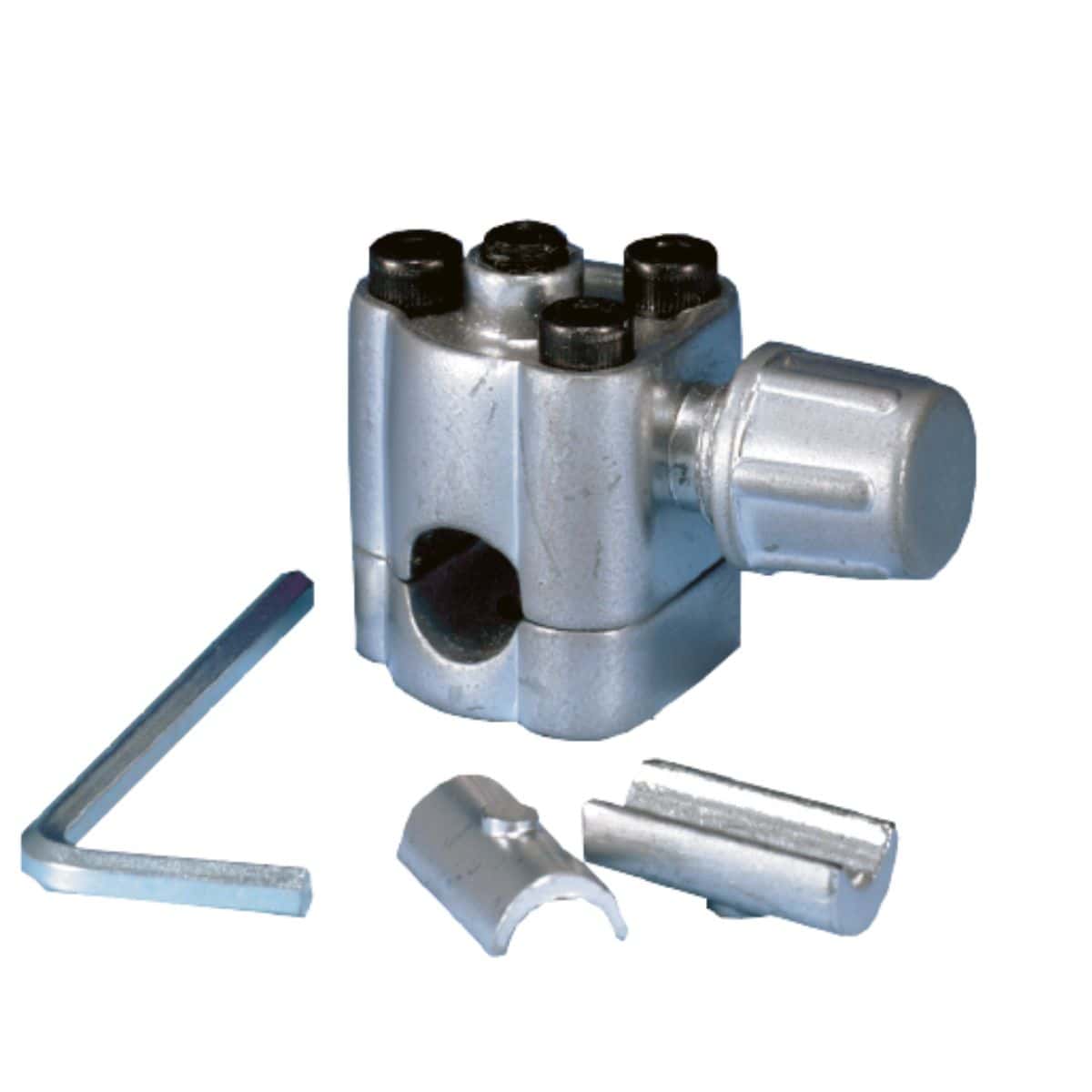

Supco Bullet Piercing Valve, The only valve with a permanent gasket to provide 50 times more sealing area then standard O-ring type valves. Safe for use on the LOW SIDE of R410 systems.
Features
- 500 PSI Maximum pressure
- Corrosion resistant
- Hex key wrench included
- Non-positional mounting, no adapter valve required
- Patented valve gasket provides 50 times more sealing area than competitive ‘O’ ring types
- Piercing needle is engineered for concentricity and hardness to insure perfect seating every time
- Requires only 2″ clearance for installation and operation
Specifications
SUP-BPV21
| Max. PSI: | 500PSI |
| OD size: | ½” and ⅝” |
| Package: | 8/box |
| Connection: | ¼” Male Flare (0.25″) |
| Material: | Zinc |
SUP-BPV31
| Max. PSI: | 500PSI |
| OD size: | ¼”, 5/16″, and ⅜” |
| Package: | 12/box |
| Connection: | ¼” Male Flare (0.25″) |
| Material: | Zinc |
Applications
- Install on round suction lines or uneven tubing
- Install on the low side as a permanent valve on site
