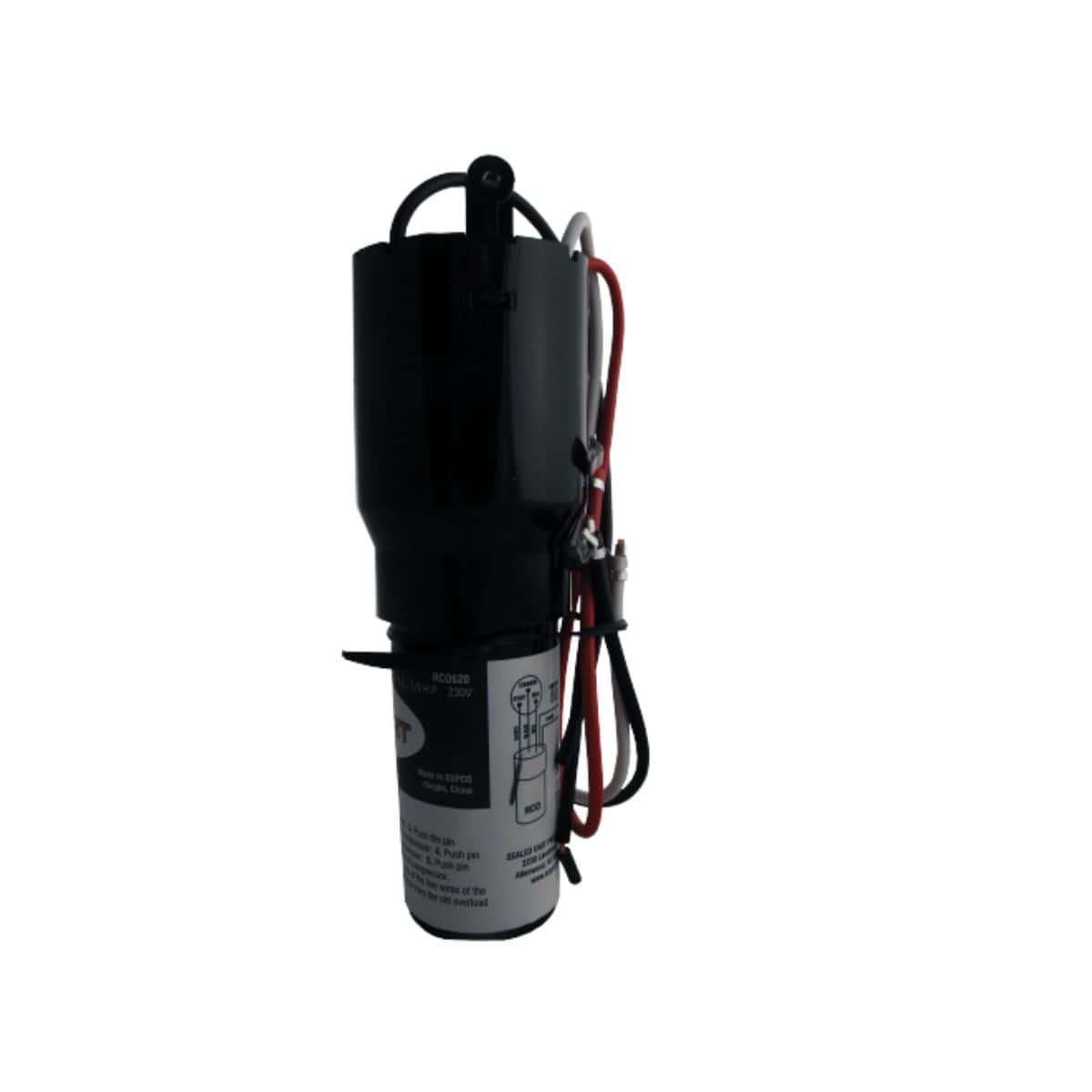

Supco Relay Capacitor Overload is a 220 to 240VAC Solid-state Hardstart Relay, includes relay, overload, and start capacitor. Used on refrigeration systems with or without run capacitors. Maximum RLA 1.66 Amps.
Features
- Prevents low voltage starting problems
- Replaces relay, overload and provides a boost for hard start and unbalanced systems
- UL® Recognized
- Wire Designations – White/Start, Black/Common, Red/Run
Specifications
SUP-RCO620
| Mounting: | Quick connect |
| HP rating: | 1/6 – 1/5 |
| Voltage: | 230V |
SUP-RCO820
| Mounting: | Quick connect |
| HP rating: | 1 / 12 – 1 / 8 |
| Voltage: | 230V |
| Maximum Continuous RLA: | 1.66A |
SUP-RCO420
| Mounting: | Quick connect |
| HP rating: | 1/4 – 1/3 |
| Voltage: | 230V |
| Maximum Continuous RLA: | 4.05A |
Applications
- For all capillary systems
- Select the right match to replace refrigerator compressor relay and overload units from 1/12 through 2/3 hp, 115-230 VAC
