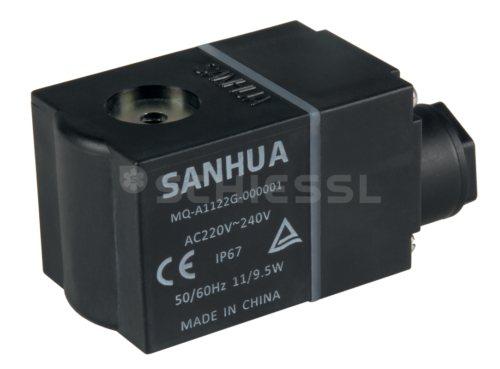

The Sanhua MQ Series Solenoid Valve Coils are designed to operate compatible Sanhua MDF Series solenoid valves in refrigeration, air conditioning and heat pump systems. When supplied with the correct electrical voltage, the coil generates a magnetic field that actuates the valve to control refrigerant flow.
Available in 220–240V AC and 24V DC configurations, these coils provide replacement options for different electrical control systems.
WHAT IS THIS PRODUCT USED FOR?
The Sanhua MQ Series Solenoid Valve Coils are used to electrically activate compatible solenoid valve bodies, allowing automatic refrigerant flow control in HVAC/R systems. They are suitable for replacing compatible coils or completing a solenoid valve assembly that requires a separately supplied coil.
FEATURES
- Designed for compatible Sanhua MDF-A03 and MDF-B03 solenoid valve bodies
- Available in AC and DC electrical configurations
- DIN electrical connection
- Class F electrical insulation
- IP65 protection rating when correctly fitted with the appropriate connector
- Suitable for refrigeration, air conditioning and heat pump applications
- Designed for reliable electrical actuation of refrigerant solenoid valves
OPTIONS
- SAN-MQ-A0322G-000001 – 220–240V AC, 50/60Hz, 12W at 50Hz / 10W at 60Hz
- SAN-MQ-D03024-000002 – 24V DC, 15W
SPECIFICATIONS
| Specification | SAN-MQ-A0322G-000001 | SAN-MQ-D03024-000002 |
|---|---|---|
| Brand | Sanhua | Sanhua |
| Series | MQ-A03 | MQ-D03 |
| Product Type | Solenoid Valve Coil | Solenoid Valve Coil |
| Rated Voltage | 220–240V | 24V |
| Current Type | AC | DC |
| Frequency | 50/60Hz | Not applicable |
| Power Consumption | 12W (50Hz), 10W (60Hz) | 15W |
| Electrical Connection | DIN Plug | DIN Plug |
| Insulation Class | F | F |
| Protection Rating | IP65 with appropriate plug | IP65 with appropriate plug |
| Compatible Valve Series | MDF-A03 / MDF-B03 | MDF-A03 / MDF-B03 |
| Manufacturer Part Number | 10820010002 | 10820001002 |
**Non-Returnable Item – Electrical & Electronic Components**
We cannot return electrical and electronic components for a refund or credit due to incorrect selection, ordering errors, or change of mind. Please confirm compatibility before purchasing.
Faulty or incorrectly supplied products remain covered by applicable manufacturer warranties and statutory rights.
