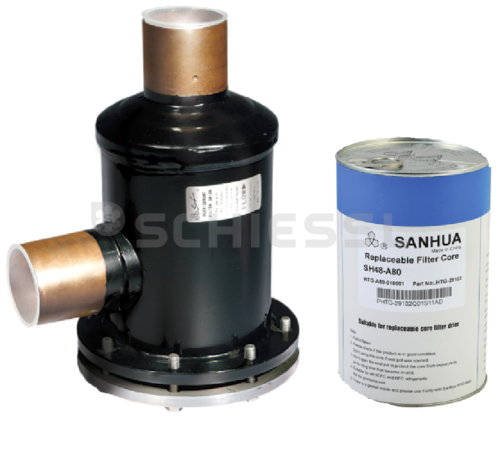

The Sanhua HTG Series Replaceable Core Filter Drier Housings are designed for commercial refrigeration, freezing, and air conditioning systems. They accommodate replaceable filter cores that help remove moisture, acids, and solid contaminants from refrigerant circuits, protecting system components and maintaining refrigerant cleanliness.
The series features a serviceable housing with a removable flanged cover, allowing filter cores to be replaced during system maintenance without replacing the entire housing. Available in single-core and dual-core configurations, the range offers multiple solder connection sizes to suit different HVAC/R installations.
WHAT IS THIS PRODUCT USED FOR?
The Sanhua HTG Series Filter Drier Housings are used to hold replaceable filter cores in refrigeration and air conditioning systems. Installed in suitable refrigerant lines, they provide a serviceable filtration point for removing moisture, acids, and debris. They are particularly useful in larger HVAC/R systems where periodic filter core replacement is required.
FEATURES
- Replaceable-core housing for commercial refrigeration and HVAC/R systems
- Removable flanged cover for filter core replacement and servicing
- Designed for moisture, acid, and contaminant removal when fitted with the appropriate core
- Available in single-core HTG-A48 and dual-core HTG-A96 configurations
- Compatible with appropriate Sanhua SH-48 series replacement cores
- Solder connections for installation into refrigerant pipework
- Multiple connection sizes from 7/8″ to 2-1/8″
- Serviceable design helps reduce the need to replace the entire housing during maintenance
- Suitable for liquid-line and compatible suction-line applications, depending on the installed core
OPTIONS
HTG-A48 – Single-Core Housings
- SAN-HTG-A48070-901 – 1 Core, 7/8″ (22 mm) Solder Connection
- SAN-HTG-A48090-901 – 1 Core, 1-1/8″ Solder Connection
- SAN-HTG-A48110-901 – 1 Core, 1-3/8″ (35 mm) Solder Connection
- SAN-HTG-A48130-901 – 1 Core, 1-5/8″ Solder Connection
- SAN-HTG-A48170-901 – 1 Core, 2-1/8″ (54 mm) Solder Connection
HTG-A96 – Dual-Core Housings
- SAN-HTG-A96090-901 – 2 Cores, 1-1/8″ Solder Connection
- SAN-HTG-A96110-901 – 2 Cores, 1-3/8″ (35 mm) Solder Connection
SAN-HTG-A96170-901 – 2 Cores, 2-1/8″ (54 mm) Solder Connection
SPECIFICATIONS
| SKU | Series | Core Quantity | Internal Volume | Solder Connection |
|---|---|---|---|---|
| SAN-HTG-A48070-901 | HTG-A48 | 1 | 48 in³ | 7/8″ (22 mm) |
| SAN-HTG-A48090-901 | HTG-A48 | 1 | 48 in³ | 1-1/8″ |
| SAN-HTG-A48110-901 | HTG-A48 | 1 | 48 in³ | 1-3/8″ (35 mm) |
| SAN-HTG-A48130-901 | HTG-A48 | 1 | 48 in³ | 1-5/8″ |
| SAN-HTG-A48170-901 | HTG-A48 | 1 | 48 in³ | 2-1/8″ (54 mm) |
| SAN-HTG-A96090-901 | HTG-A96 | 2 | 96 in³ | 1-1/8″ |
| SAN-HTG-A96110-901 | HTG-A96 | 2 | 96 in³ | 1-3/8″ (35 mm) |
| SAN-HTG-A96170-901 | HTG-A96 | 2 | 96 in³ | 2-1/8″ (54 mm) |
GENERAL TECHNICAL SPECIFICATIONS
| Specification | Details |
|---|---|
| Brand | Sanhua |
| Series | HTG-A48 / HTG-A96 |
| Product Type | Replaceable Core Filter Drier Housing |
| Number of Cores | 1 or 2, depending on model |
| Compatible Core Family | Sanhua SH-48 series |
| Connection Type | Solder |
| Housing Volume | 48 in³ / 96 in³ |
| Applications | Refrigeration and air conditioning liquid or suction lines |
| Housing Design | Removable flanged cover |
| Catalogue Design Pressure | 4.5 MPa (45 bar) |
| Refrigerant Medium Temperature | −50°C to +120°C |
| Ambient Temperature | −50°C to +80°C |
**Non-Returnable Item – Electrical & Electronic Components**
We cannot return electrical and electronic components for a refund or credit due to incorrect selection, ordering errors, or change of mind. Please confirm compatibility before purchasing.
Faulty or incorrectly supplied products remain covered by applicable manufacturer warranties and statutory rights.
