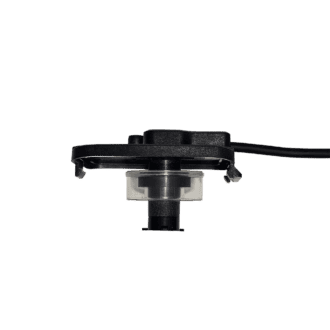

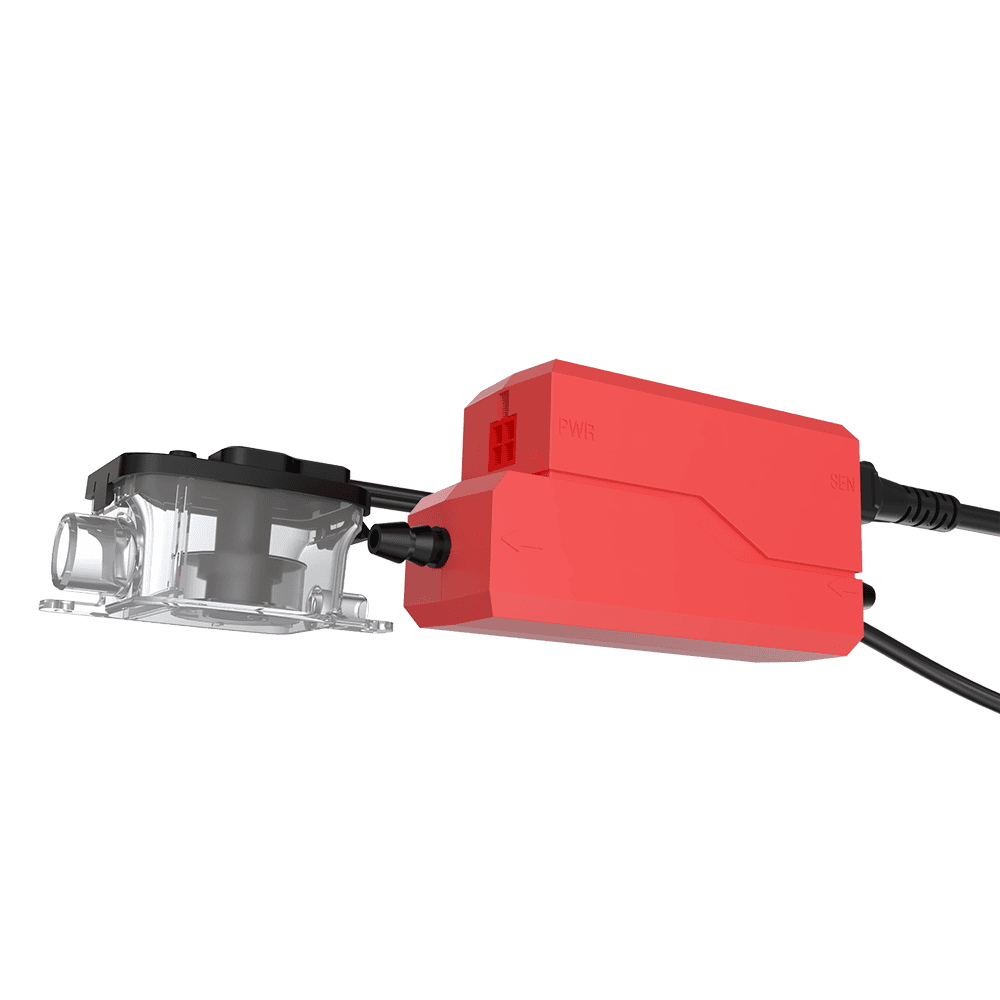

Diversitech Redbox Mini Compact Condensate Pump

A mini condensate pump in the REDBOX series of pumps.
Designed to automatically remove the drainage liquid produced by air conditioners of a maximum 7kW cooling capacity.

Key Features

• Use with Air conditioner (Max. 7kW)
• Power supply 100-240V, 50-60Hz
• Electrical output 3W
• Safety switch contacts Max. 3A
• Max. suction head 3m
• Max. discharge head 15m
• Max. flow rate at zero head 20 LPH
• Fluid Fresh water of 1~40°C
• Non-continuously rated operating time 3 minutes
• Decibel rating 21 DB(A)
• Working without fluid coming through the pump less than 1 minute only
• Pump size (LxWxH) 119 x 31.5 x 50mm
• Reservoir size (LxWxH) 75 x 43.2 x 40.3mm
• Drink cycle 12ml

Part No. Content

• Part Name: REDBOX-COMPACT
• Description: REDBOX MINI COMPACT CONDENSATE PUMP
• Suitable for use on: AC MAX 7kW
• Quantity: 1
• Brand: REDBOX
• Max flow: at 0 head – 20LPH
• dB A: 21
• HZ: 50-60
• External dimensions height: 50mm
• External dimensions width: 31.5mm
• External dimensions depth: 119mm
