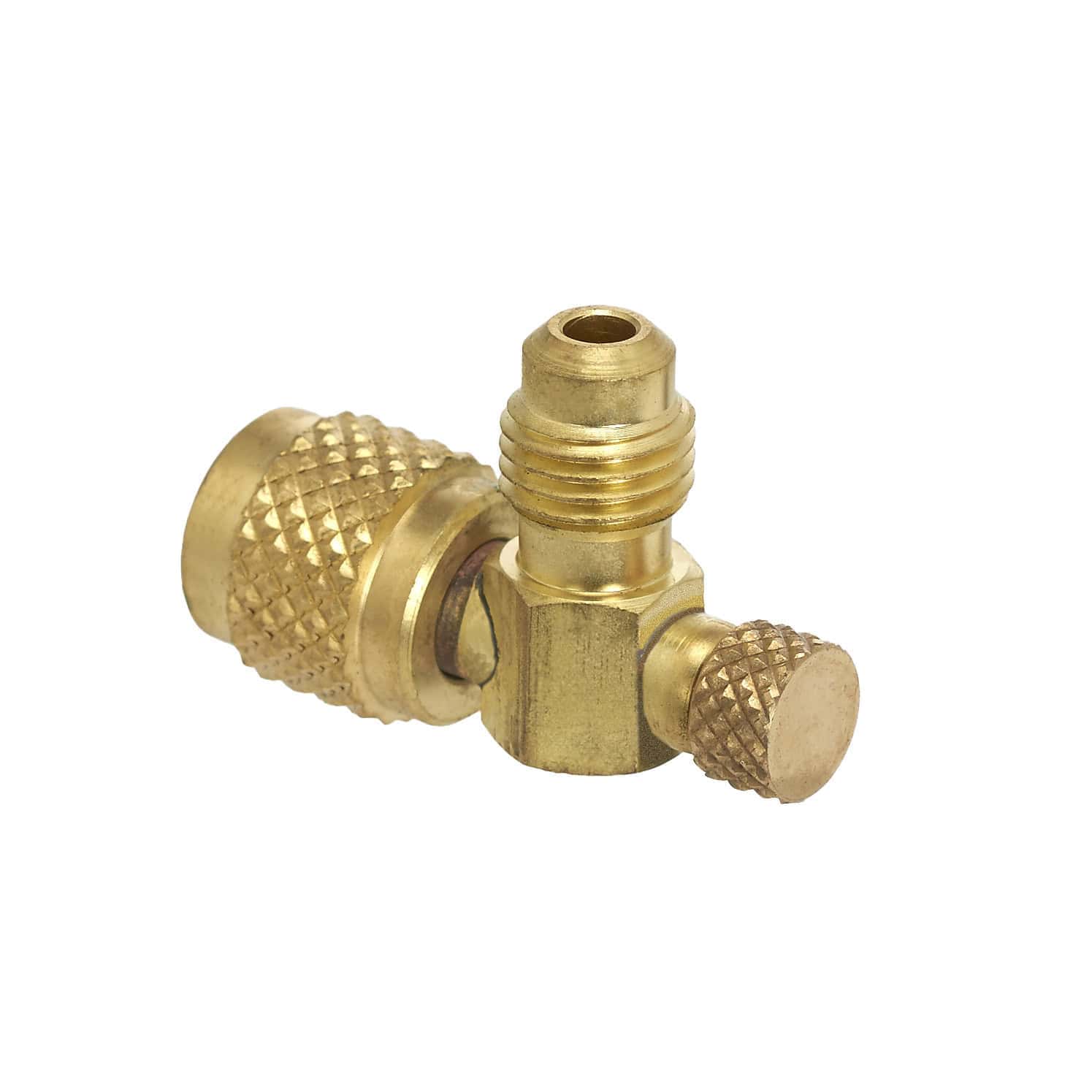

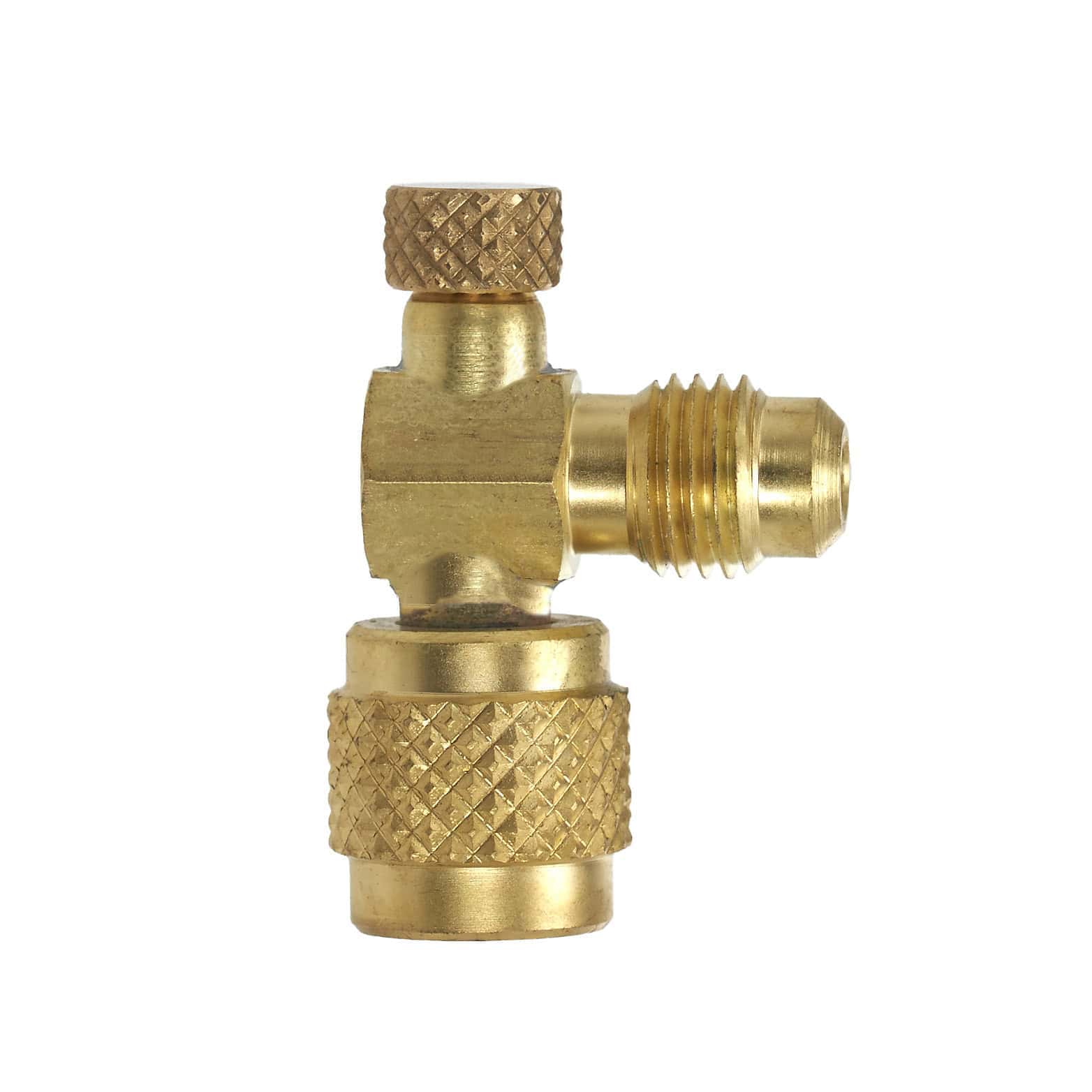

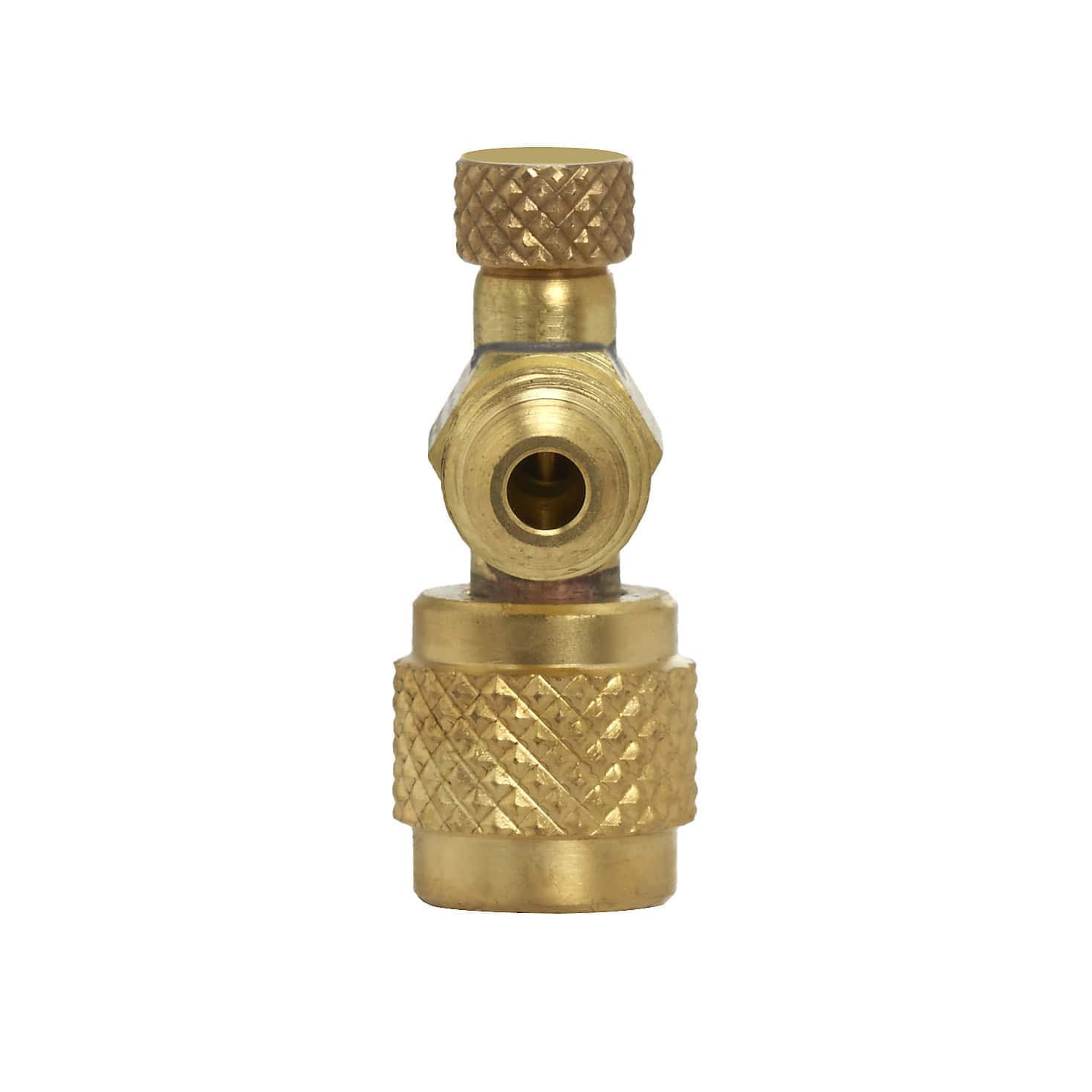

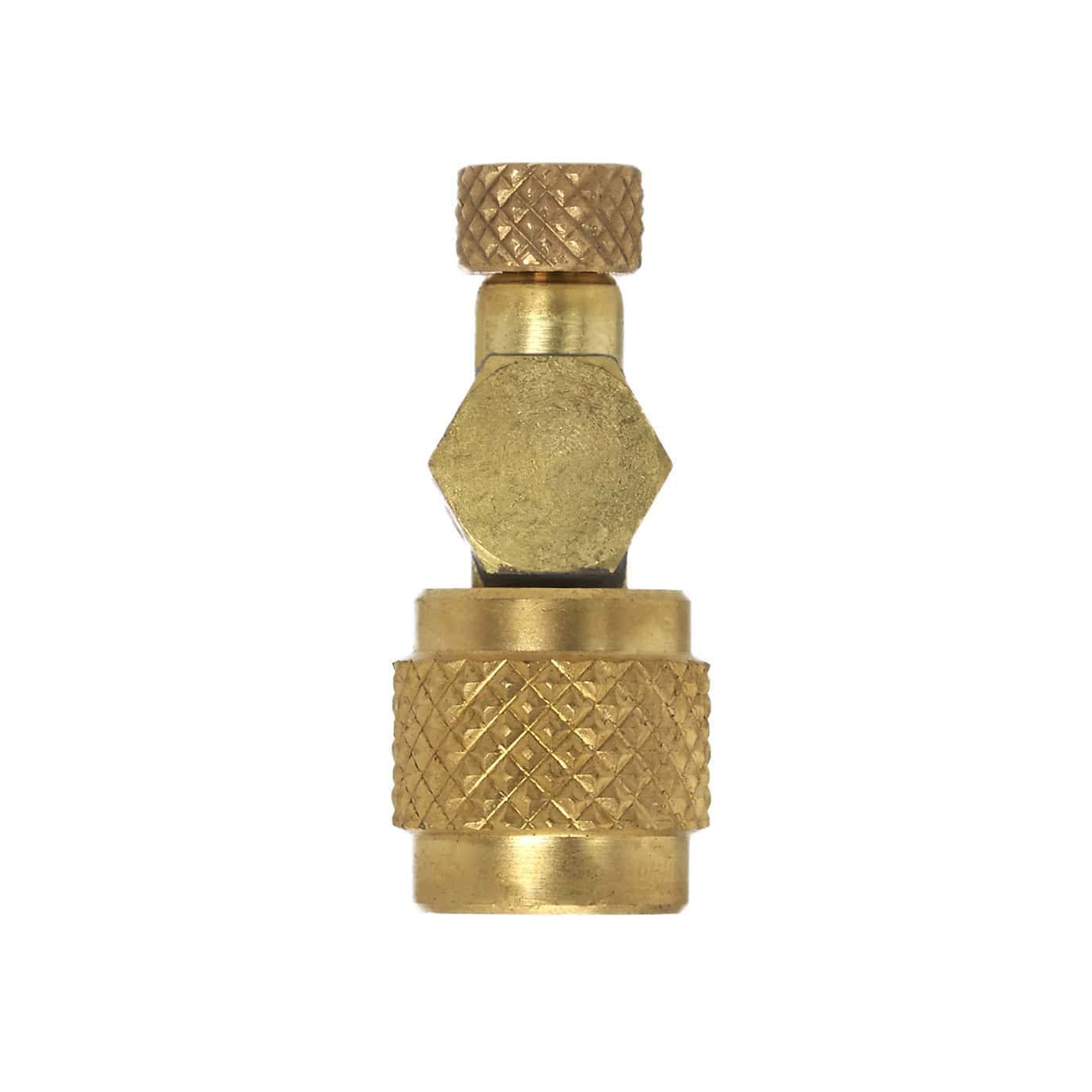

The Bradley Mini Core Depressors are compact HVAC/R service tools designed to fully open or close Schrader valves while systems are under pressure or vacuum. Their low-profile 35 mm design makes them suitable for tight spaces, allowing technicians to connect hoses or service tools while helping minimise refrigerant or vacuum loss.
FEATURES
- Very low 35 mm height
- Vacuum rated and pressure tested
- Designed to fully open Schrader valves for improved flow and access
- Permanent chemical-resistant Teflon gasket that cannot be removed or fall out
- Suitable for HVAC/R pressure and vacuum applications
- 24-month warranty
OPTIONS
- BRA-MCD14 – 1/4″ SAE Female to 1/4″ SAE Male
- BRA-MCD56 – 5/16″ SAE Female to 1/4″ SAE Male
| Specification | BRA-MCD14 | BRA-MCD56 |
|---|---|---|
| Product Type | Mini Core Depressor | Mini Core Depressor |
| Female Connection | 1/4″ SAE | 5/16″ SAE |
| Male Connection | 1/4″ SAE | 1/4″ SAE |
| Application | HVAC/R, Vacuum, Pressure | HVAC/R, Vacuum, Pressure |
| Material | Brass / Alloy | Brass / Alloy |
| Pressure Rating | 800 PSI | 800 PSI |
| Vacuum Rating | 50 Micron (2 Pa) | 50 Micron (2 Pa) |
| Height | 35 mm | 35 mm |
| Weight | 50 g | 50 g |
| Brand | Bradley | Bradley |
| Country of Origin | China | China |
| Warranty | 24 Months | 24 Months |
