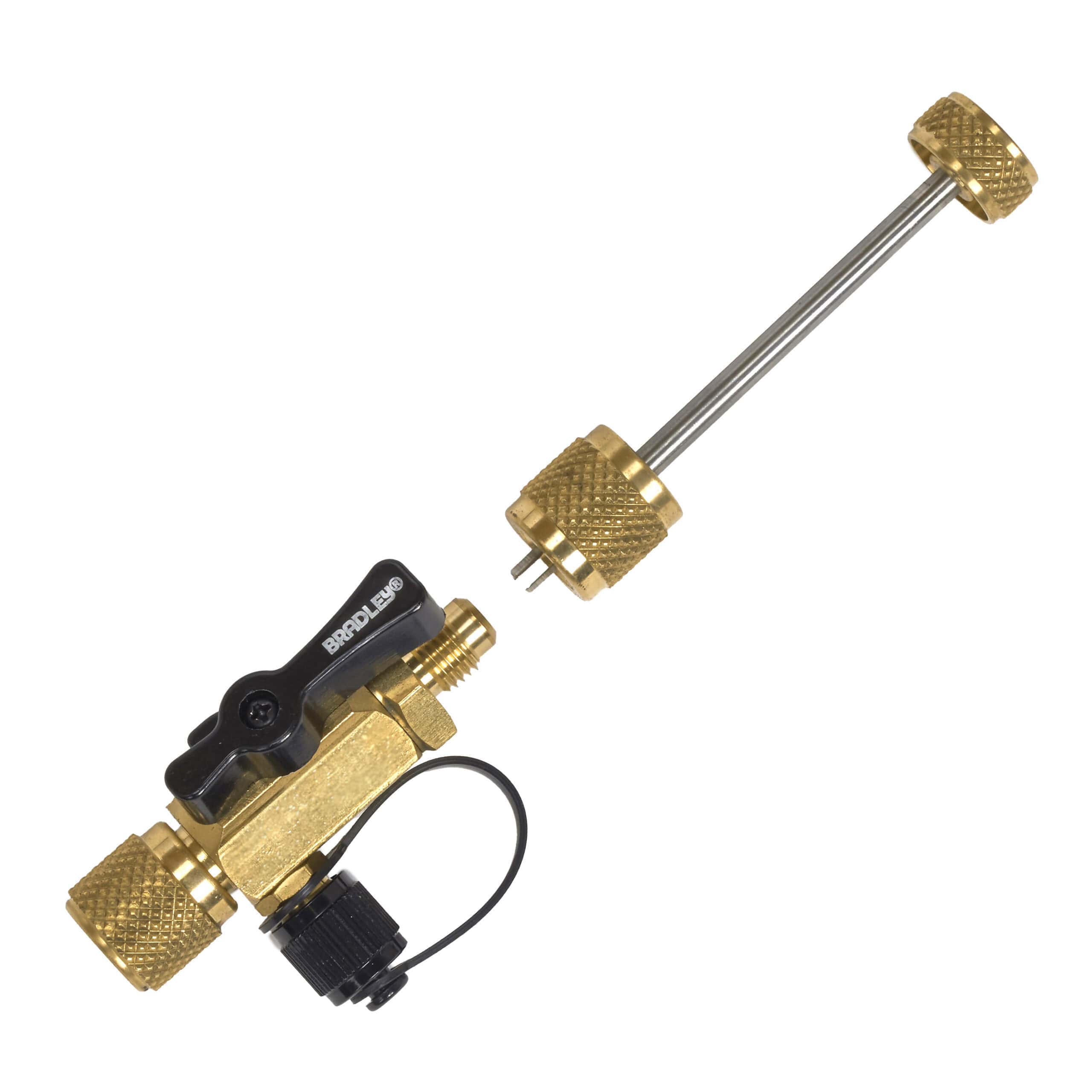

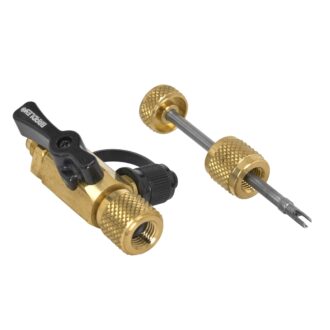

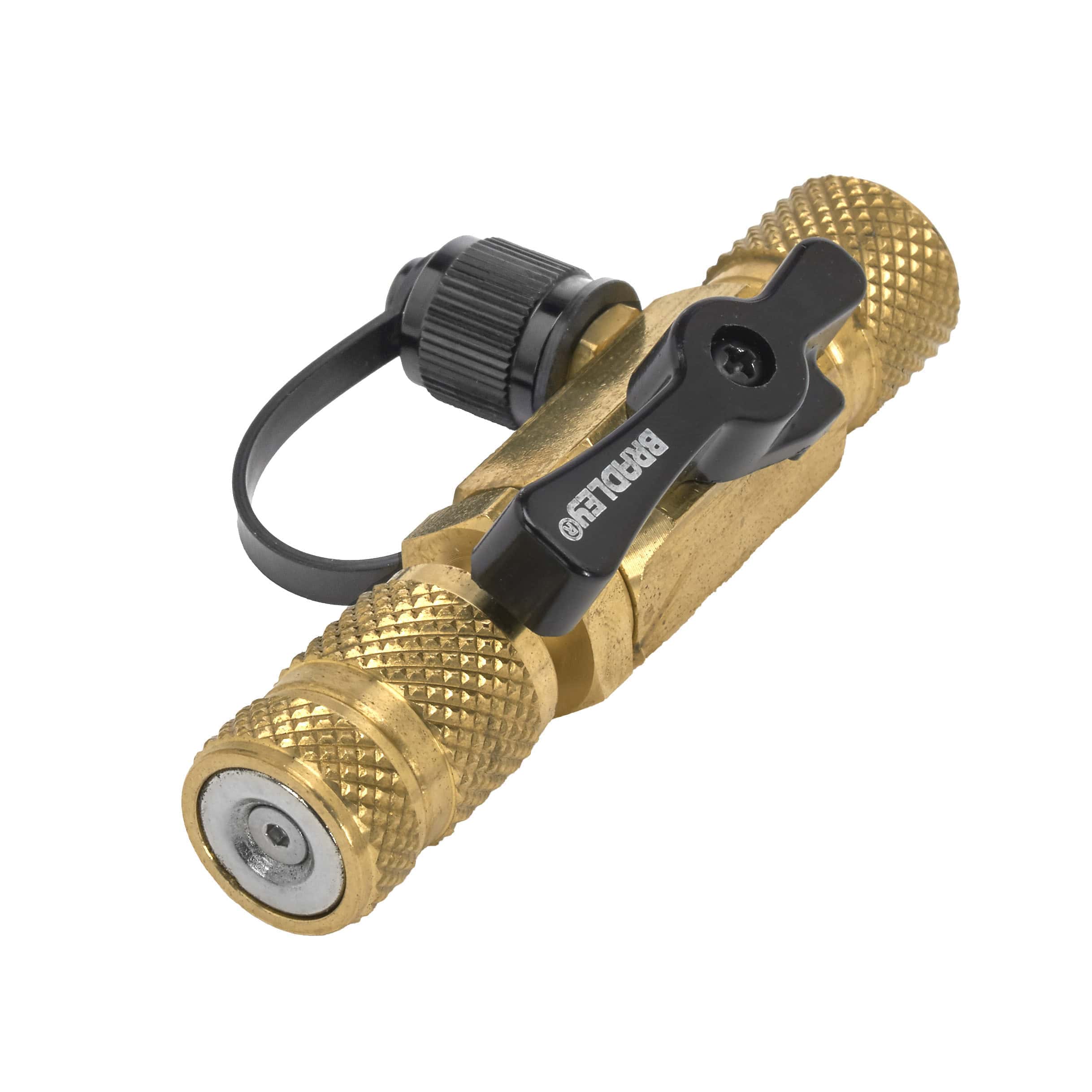

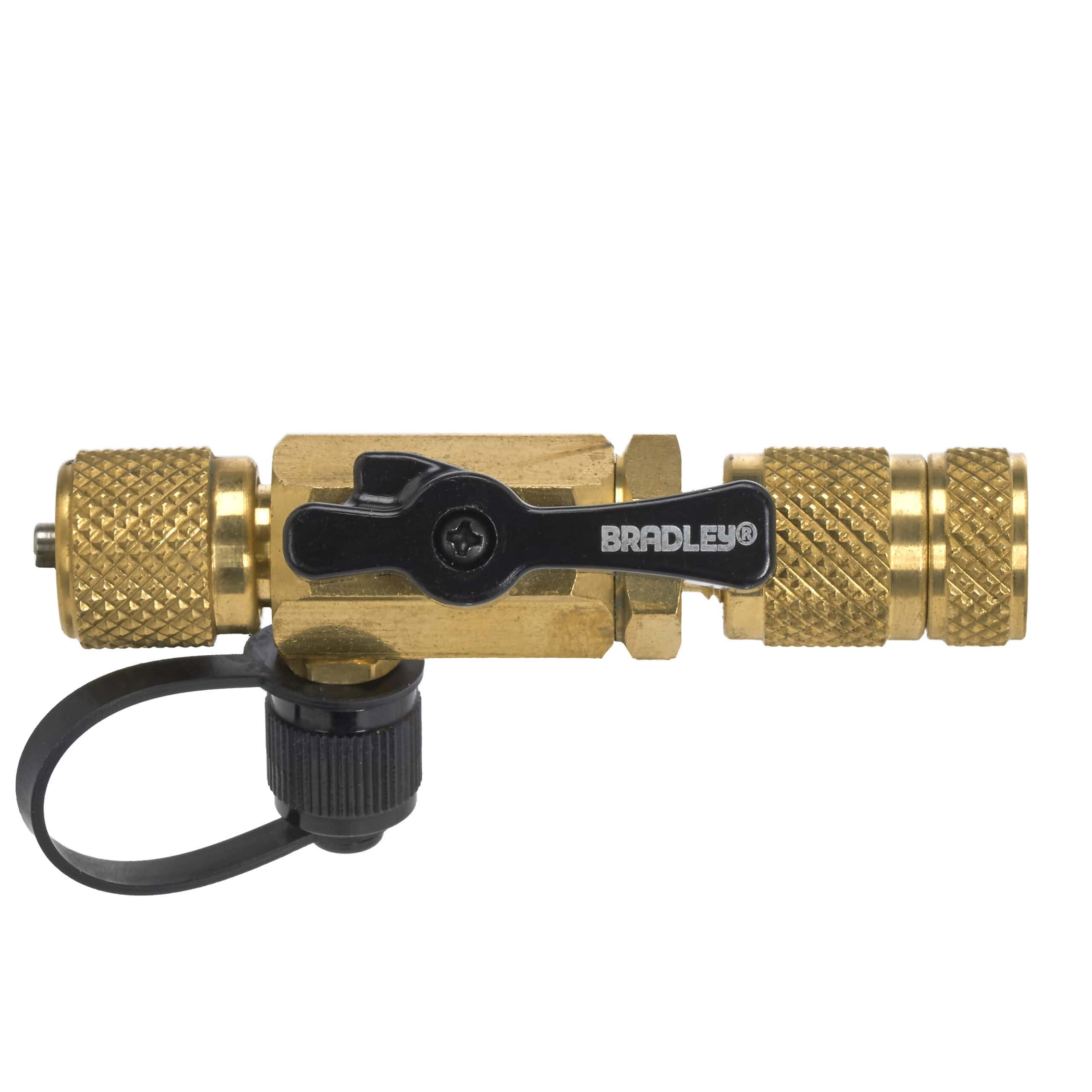

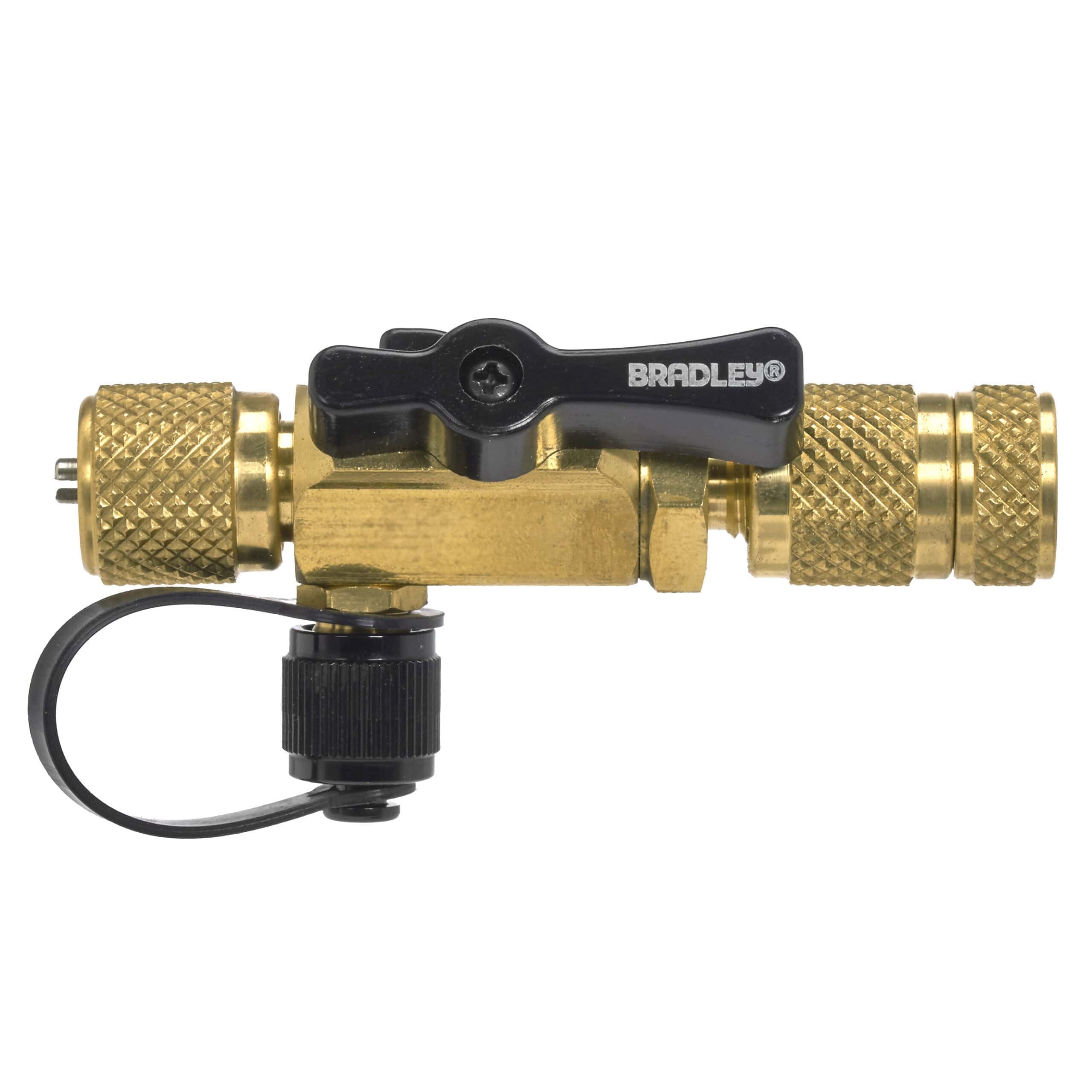

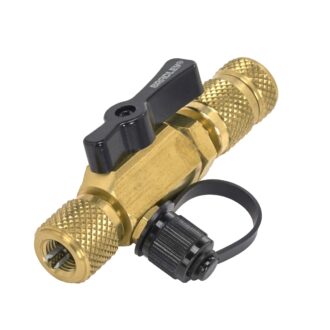

The Bradley Core Removal Tools are designed for HVAC/R technicians to remove and reinstall Schrader valve cores during system evacuation and refrigerant recovery. Their vacuum- and pressure-rated construction helps reduce flow restrictions for faster servicing, while the ball valve isolation and adjustable stem provide convenient control during use.
FEATURES
- Adjustable stem tip

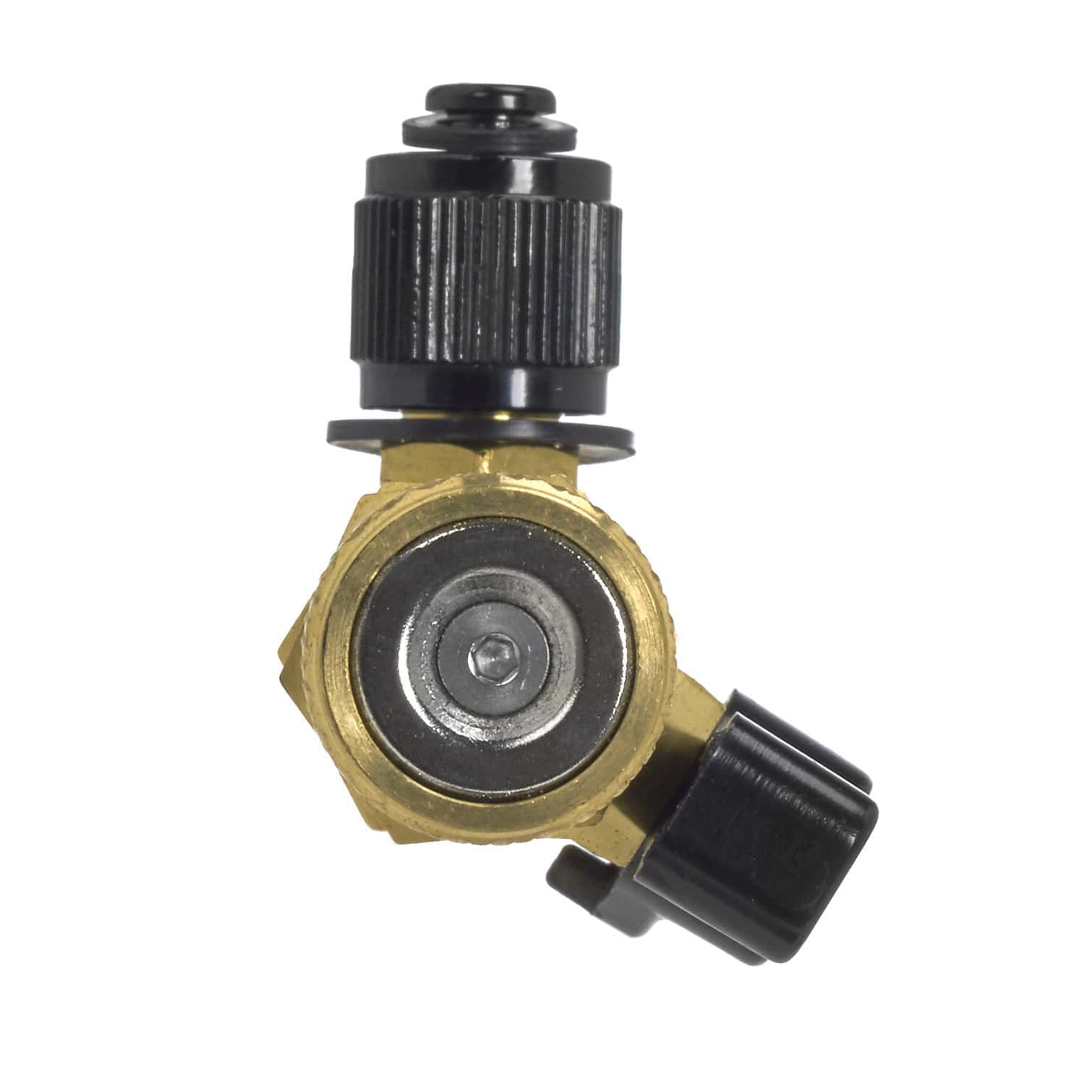

- Magnetic base
- Ball valve isolation
- Swivel base with replaceable O-ring
- 1/4″ male side port with Schrader valve
- Vacuum rated and pressure tested
- Designed and tested for HVAC/R applications
- 24-month warranty
OPTIONS
- BRA-CRT14 – Core Removal Tool with 1/4″ SAE Female connection
- BRA-CRT56 – Core Removal Tool with 5/16″ SAE Female connection
- BRA-CRT14-O – Replacement 1/4″ O-Rings, Pack of 6
- BRA-CRT56-O – Replacement 5/16″ O-Rings, Pack of 6
| Specification | BRA-CRT14 | BRA-CRT56 | BRA-CRT14-O | BRA-CRT56-O |
|---|---|---|---|---|
| Product Type | Core Removal Tool | Core Removal Tool | Replacement O-Rings | Replacement O-Rings |
| Connection / Size | 1/4″ SAE Female | 5/16″ SAE Female | 1/4″ | 5/16″ |
| Pack Quantity | 1 | 1 | 6 | 6 |
| Application | HVAC/R, Vacuum | HVAC/R, Vacuum | Replacement for BRA-CRT14 | Replacement for BRA-CRT56 |
| Material | Brass / Alloy | Brass / Alloy | — | — |
| Pressure Rating | 800 PSI | 800 PSI | — | — |
| Vacuum Rating | 20 Micron (2 Pa) | 20 Micron (2 Pa) | — | — |
| Weight | 225 g | 225 g | — | — |
| Country of Origin | China | China | — | — |
| Warranty | 24 Months | 24 Months | — | — |
