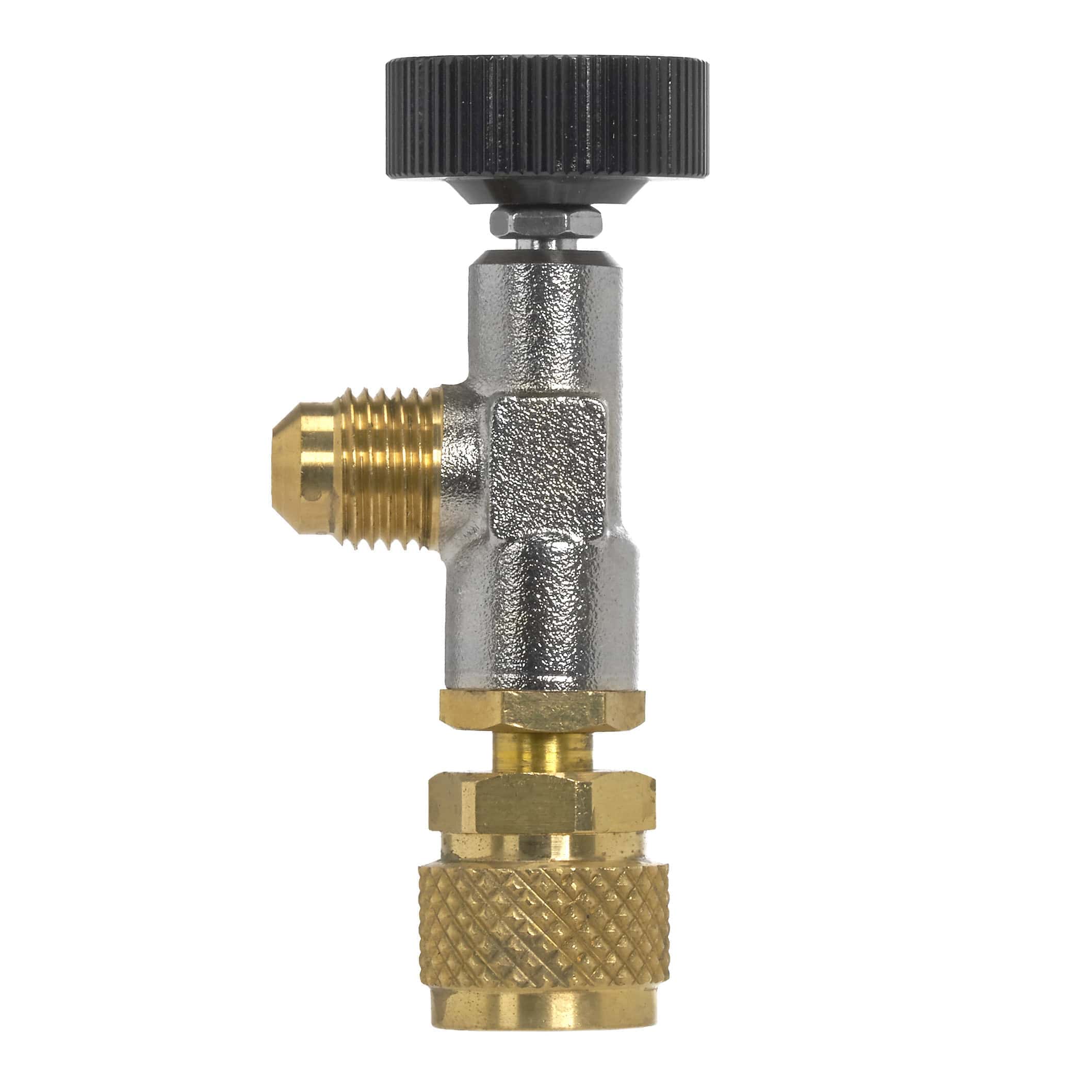

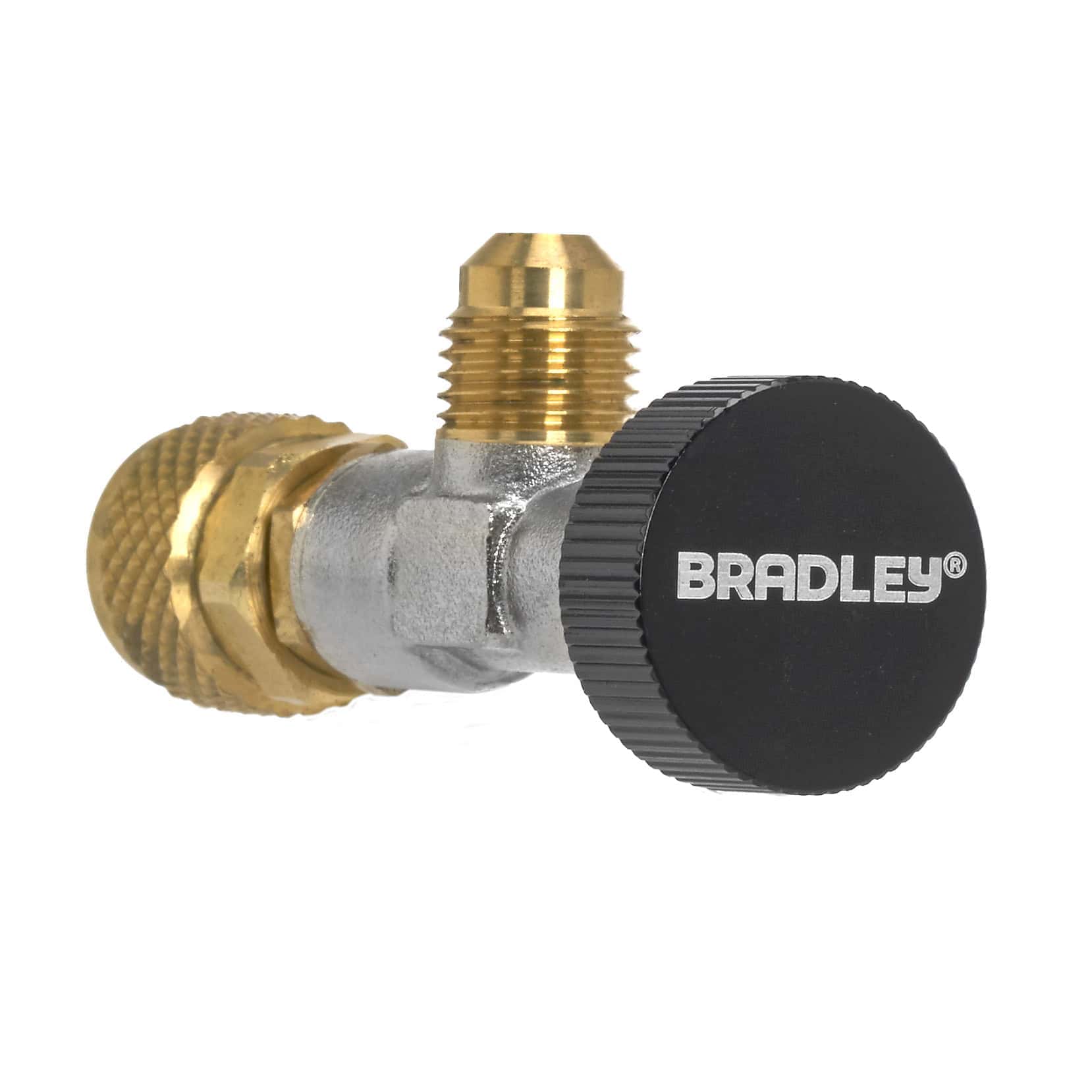

The Bradley Core Depressors are designed for HVAC/R technicians to fully open or close system service valves while under pressure or vacuum. They allow hoses and service tools to be connected without prematurely losing refrigerant or vacuum, while fully depressing the Schrader core for improved flow and system access.
FEATURES
- Large easy-grip handle
- 75 mm height
- Fully sealed when back seated
- Opens the Schrader valve as the handle is depressed
- Vacuum-rated and pressure-tested
- Designed to fully open Schrader valves for improved flow and access
- Permanent chemical-resistant Teflon gasket
- 24-month warranty
OPTIONS
- BRA-CD1414 – 1/4″ SAE Female to 1/4″ SAE Male
- BRA-CD1456 – 1/4″ SAE Female to 5/16″ SAE Male
- BRA-CD5656 – 5/16″ SAE Female to 5/16″ SAE Male
- BRA-CD5614 – 5/16″ SAE Female to 1/4″ SAE Male
| Specification | BRA-CD1414 | BRA-CD1456 | BRA-CD5656 | BRA-CD5614 |
|---|---|---|---|---|
| Female Connection | 1/4″ SAE | 1/4″ SAE | 5/16″ SAE | 5/16″ SAE |
| Male Connection | 1/4″ SAE | 5/16″ SAE | 5/16″ SAE | 1/4″ SAE |
| Application | HVAC/R, Vacuum, Pressure | HVAC/R, Vacuum, Pressure | HVAC/R, Vacuum, Pressure | HVAC/R, Vacuum, Pressure |
| Material | Brass / Alloy | Brass / Alloy | Brass / Alloy | Brass / Alloy |
| Pressure Rating | 800 PSI | 800 PSI | 800 PSI | 800 PSI |
| Vacuum Rating | 50 Micron (2 Pa) | 50 Micron (2 Pa) | 50 Micron (2 Pa) | 50 Micron (2 Pa) |
| Height | 75 mm | 75 mm | 75 mm | 75 mm |
| Weight | 100 g | 100 g | 100 g | 100 g |
| Country of Origin | China | China | China | China |
| Warranty | 24 Months | 24 Months | 24 Months | 24 Months |
