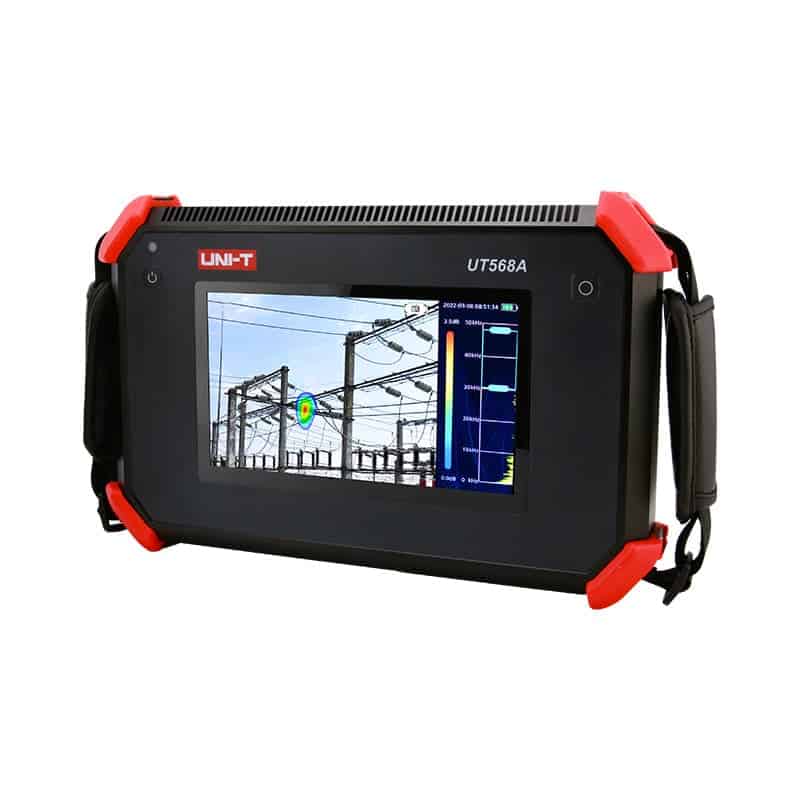

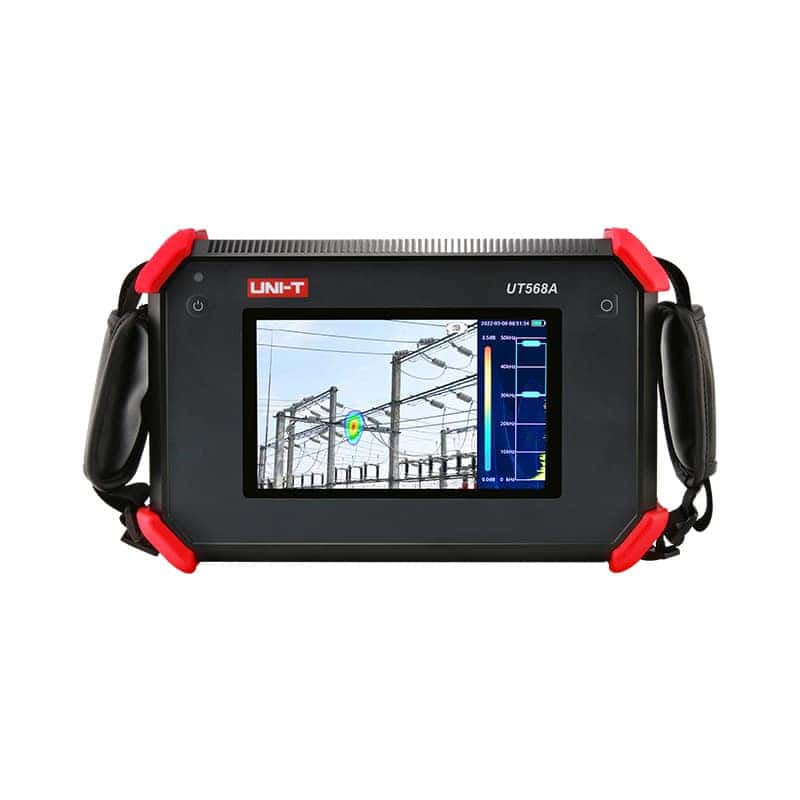

UT568A Acoustic Imager

The UT568A Acoustic Imager is designed to operate within the ultrasonic frequency range. By integrating both the audio source and video imagery, it dynamically displays changing data related to the distribution of sound sources on the screen. This feature facilitates the swift identification of partial discharge phenomena, enhancing overall work efficiency.

Features of UT568A Acoustic Imager

Certificates: ROW

● Large LCD, global scanning multi-point acoustic imaging

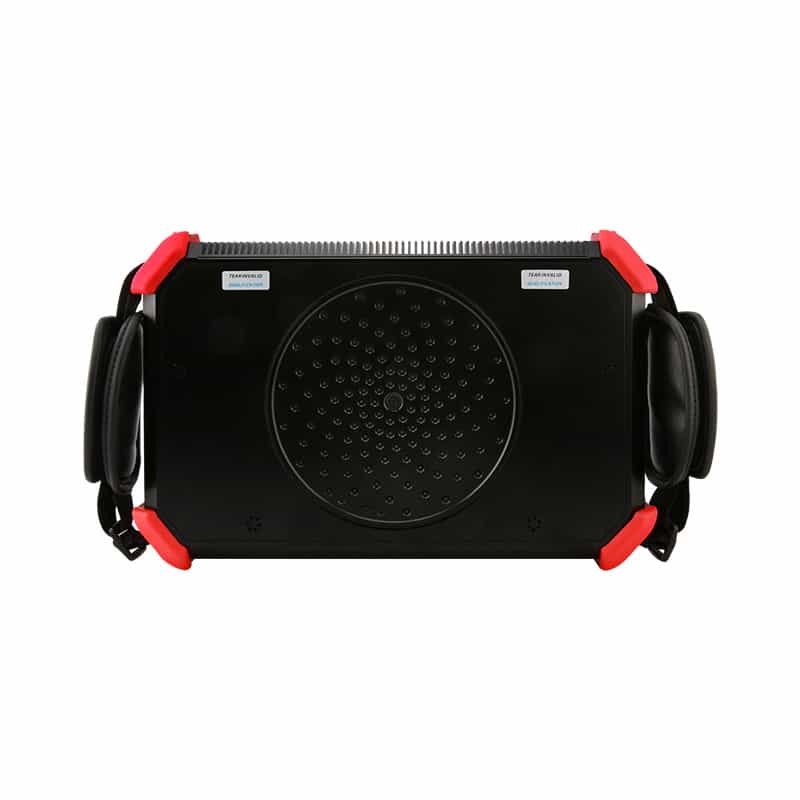

● 128-channel MEMS digital microphone
● Wide FOV of sound image (62°), 25FPS refresh rate, instant imaging
● 2kHz – 48kHz frequency adjustable, plus focus aperture, eliminate interference
● PRPD spectrum to identify the type of partial discharge
● Simple operation and convenient recording (photographing, video, TF card storage)
● IP54 protection level

$38,058.99 ex. GST $34,253.09 ex. GST
$43,767.84 incl. GST $39,391.05 incl. GST

Out of stock

Want to be notified when this product is back in stock?

UT568A Acoustic lmager supports the ultrasonic frequency band. Through the combination of the sound source and video image, the constantly changing sound source distribution data is dynamically presented on the display screen, which is convenient for quickly identifying partial discharge phenomena and improving work efficiency.



Features:

Certificates: ROW

  • Large LCD, global scanning multi-point acoustic imaging
  • 128-channel MEMS digital microphone
  • Wide FOV of sound image (62°), 25FPS refresh rate, instant imaging
  • 2kHz – 48kHz frequency adjustable, plus focus aperture, eliminate interference
  • RPD spectrum to identify the type of partial discharge
  • Simple operation and convenient recording (photographing, video, TF card storage)
  • IP54 protection level

Specifications:

Technical Specifications
Sensors
Microphones 128-channel MEMS digital microphone
Frequency band 2kHz ~ 48kHz
Field of view (Acoustic) 62°
Frame rate(Acoustic) >25FPS
Sound pressure sensitivity 30dB-120dB
Display
Resolution 1024*600
LCD size 7 inch
Touch screen Capacitive touch screen
Backlight Adjustable (under-sunlight readable)
Digital camera
Field of view (image) 62°
Focus 3.04mm (Fixed)
Camera resolution 8 mega pixels
Power
Battery capacity 6600mAh@7.2V
Battery life Around 4 hours
Charging  interface USB Type-C; USB PD protocol
Battery charging power Charging power of protecting the battery: around 29W
The single battery charging power: around 16W
Storage
Extenal storage TF card supported (up to 64GB)
Internal capacity Around 8G
Image & video format .JPG & .MP4
Working environment
Working conditions (-10℃- +50℃),  (10%-95%; No-condensing)
Storage temperature (-20℃ ~ 40℃)
Charging temperature 10℃ ~ 45℃
Communication interface
Digital export Type-C(USB 3.0)
Audio interface 3.5mm jack
Dimension and weight
Dimensionn 272mm x 174mm x 42mm (L*W*H)
Weight Around 1.7kg (Hand strap, shoulder strap not included)
