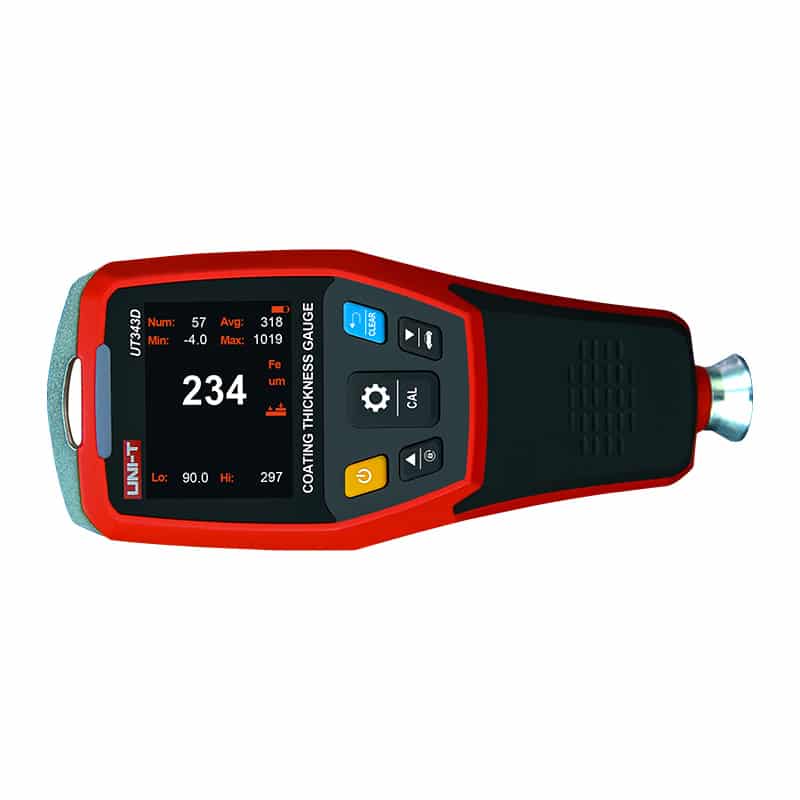

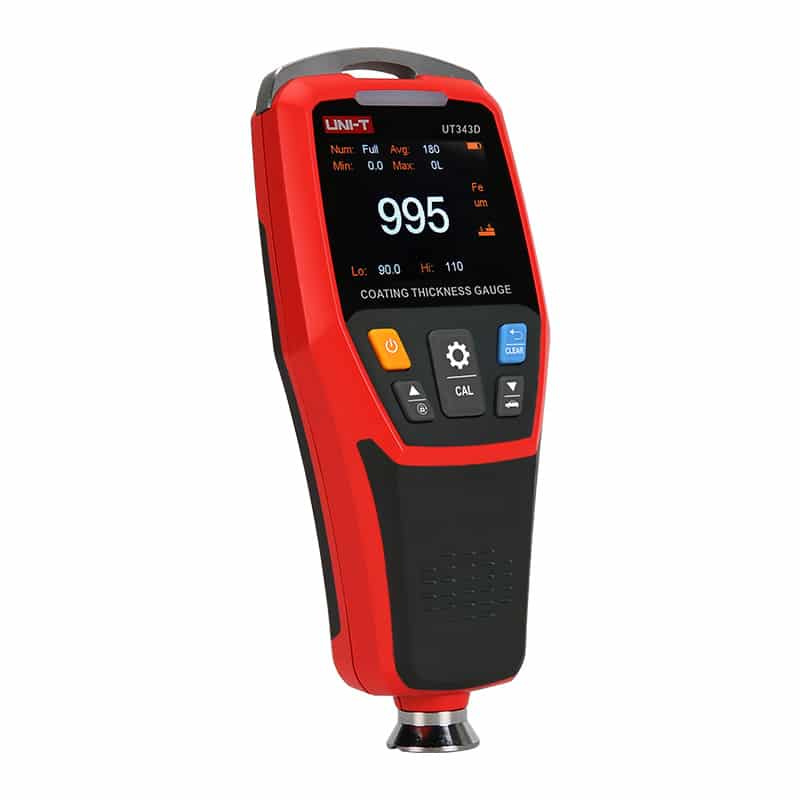

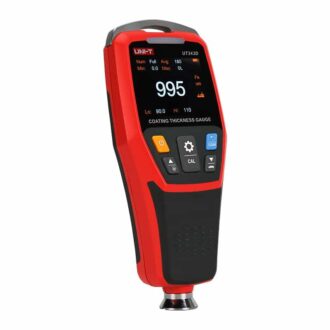

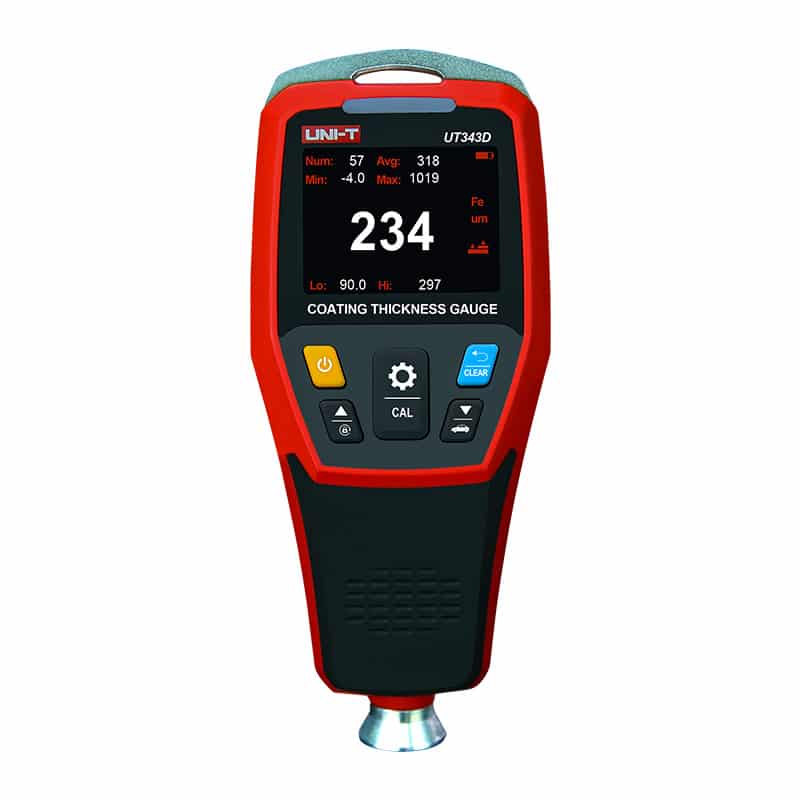

Uni-T UT343D Coating Thickness Gauge

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials.

$257.99 ex. GST
$296.69 incl. GST

Availability: In stock

Everyday Low Trade Price
Free Delivery within New Zealand*
30 Day Hassle Free Returns
SKU: UT343D Categories: ,

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and use a 3-colour LED and audio alarm to quickly determine if the coating being tested falls within the preset range, greatly increasing work efficiency.

UT343 display is auto rotatable. This CE-certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

FEATURES:

  • LCD brightness control
  • Auto rotatable screen
  • Unit conversion
  • Audio alarm
  • LED alarm
  • PC analysis software
  • USB communication
  • Quick test mode
  • Auto power off
  • Low battery indication.

INCLUDES:

1 x UT343D and 12-month warranty.

SPECIFICATIONS:

Specifications Range
Measuring range 0~1250um
Accuracy ±(3%H+1)um
Resolution 0.1um (0~99.9um); 1um (100~1250um)
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/ non-ferrous
Features
Display type 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control
Auto rotatable screen
Unit conversion
Audio alarm
LED alarm
PC analysis software
USB communication
Quick test mode
Data storage 500 groups
Auto power off
Low battery indication
General Characteristics
Power 3V battery (R03) x 2
Display 48mm x 36mm
Product colour Red and grey
Product net weight 175g
Product size 153.5mm x 64.5mm x 41mm
Standard accessories Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing Box, English manual



Video

Documents

Uni-T 343D Coating Thickness Gauge English Manual

Uni-T 343D Coating Thickness Gauge Flyer

Uni-T 343D Coating Thickness Gauge Software Instruction
