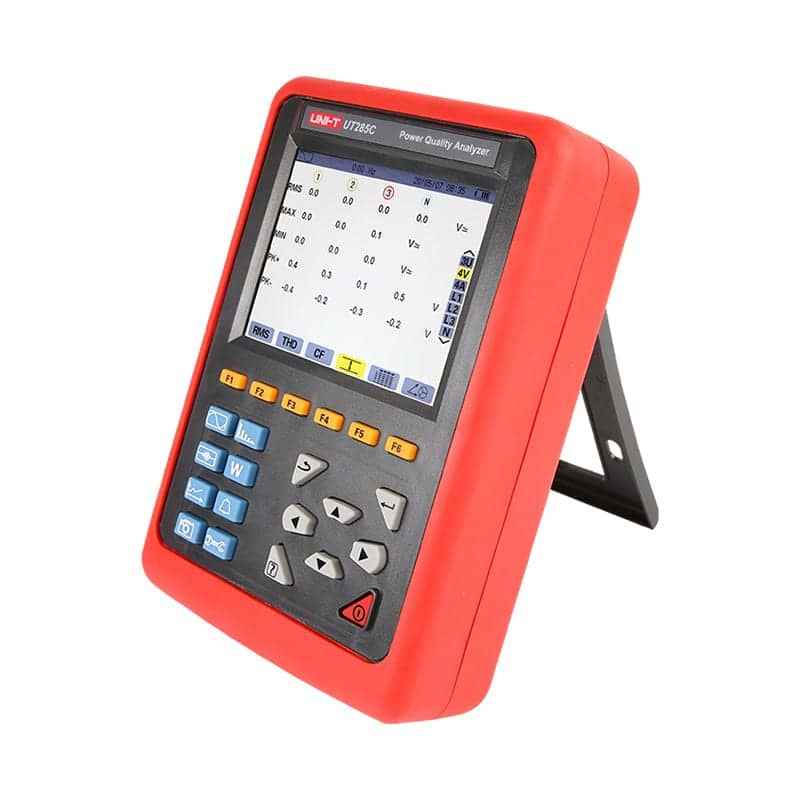

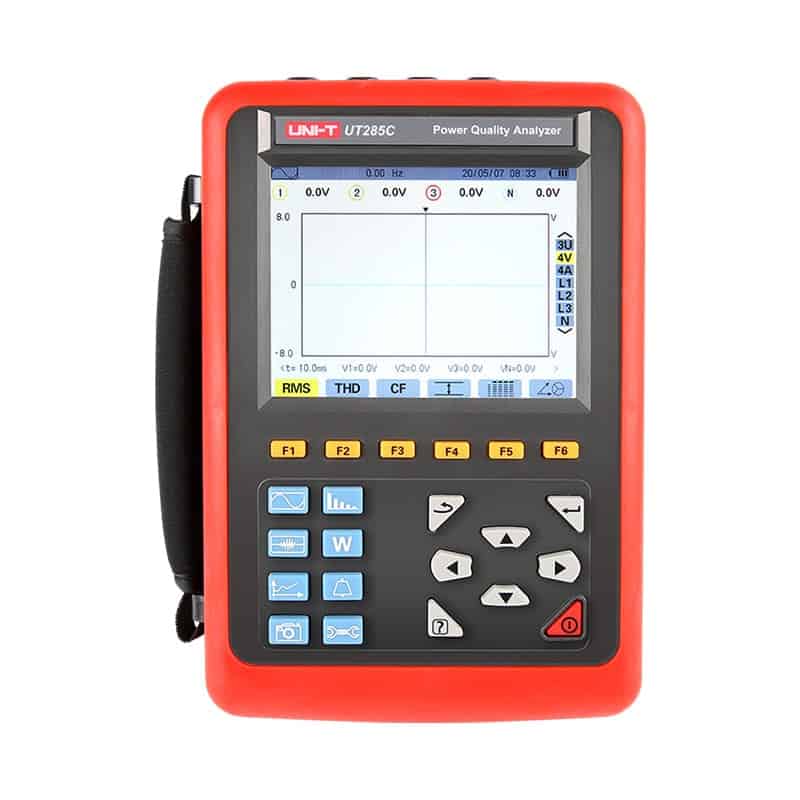

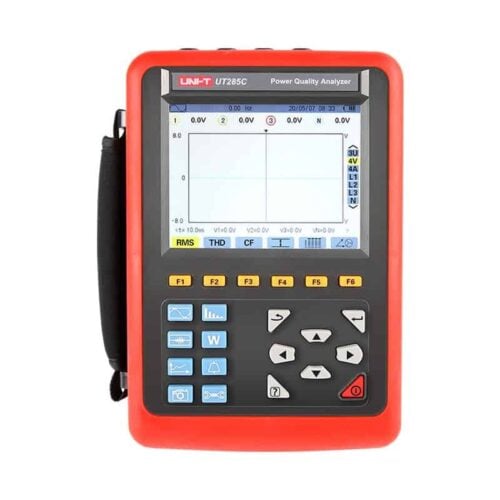

Uni-T UT285C Three Phase Power Quality Analyzer

Waveform real-time display (4 channels voltage/current).

$5,490.99 ex. GST
$6,314.64 incl. GST

Availability: In stock

- +
Everyday Low Trade Price
FREE Delivery on Orders above $399*
30 Day Hassle Free Returns

Thinking of making a return?
For change-of-mind returns, please keep the item unused, in its original condition, and with all original packaging, accessories and manuals.

FEATURES:

  • Waveform real-time display (4 channels voltage/current)
  • True RMS values of voltages and currents
  • Peak current and voltage values
  • Total harmonic distortion (THD)
  • Active, reactive, apparent power, by phase and cumulative
  • Transformer K factor
  • Power factors (PF) and displacement factors (DPF or COSΞ¦)
  • Short-term voltage flicker (PST)
  • Three-phase unbalance(current and voltage)
  • USB interface/PC software.

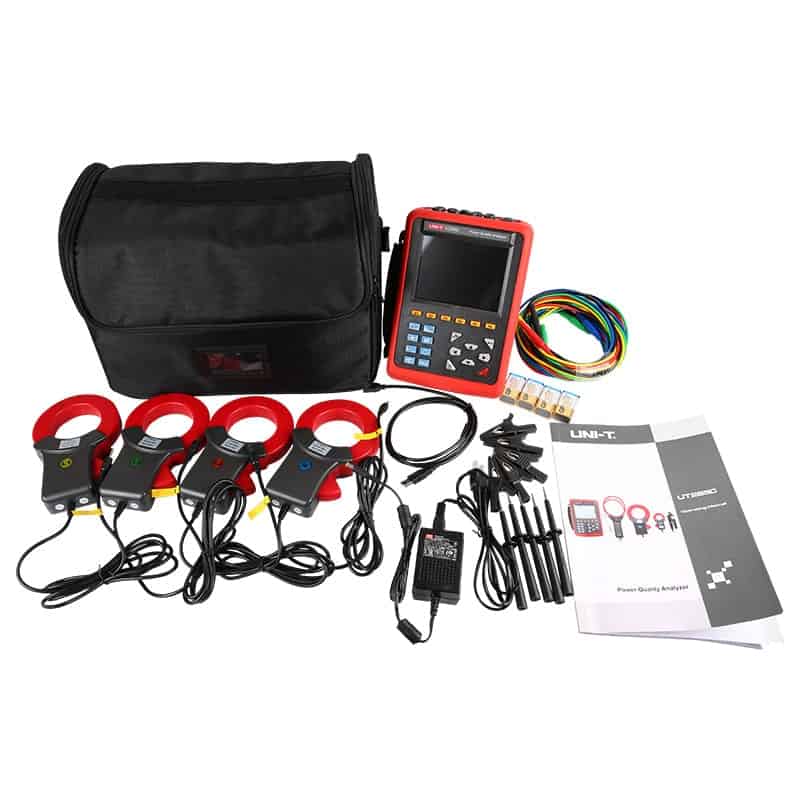

INCLUDES:

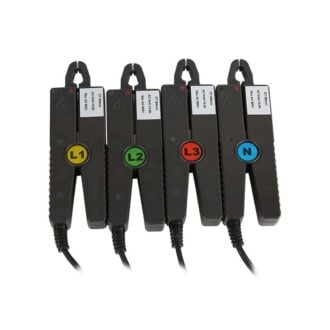

1 xΒ  UT285C, 1 x carry cloth bag, (yellow, green, red, blue, black total 5pcs test lead), 4 x alligator clip, 1 x power adapter, 1 x CD software, 4 x 1000A current clamp, 1 x English manual and 12-month warranty

SPECIFICATIONS:

SpecificationsUT285C
True RMS phase-to-neutral voltage1.0V~ 1000VΒ±(0.5%+5dgt)
True RMS phase-to phase voltage1.0V~ 2000VΒ±(0.5%+5dgt)
DC voltage1.0V~ 1000VΒ±(1.0%+5dgt)
True RMS current10mA~ 1000AΒ±(0.5%+5dgt)
Peak of phase-to-neutral voltage1.0V~ 1414VΒ±(1.0%+5dgt)
Peak of phase-to-phase voltage1.0V~ 2828VΒ±(1.0%+5dgt)
Current peak10mA~ 1414AΒ±(1.0%+5dgt)
Active power0.000W~ 9999.9kWΒ±(1%+3dgt)
CosΟ†β‰₯0.8
Β±(1.5%+10dgt)
0.2≀CosΟ†<0.8
Reactive power, inductive or capacitive0.000RVA~ 9999.9kVARΒ±(1%+3dgt)
SinΟ†β‰₯0.5
Β±(1.5%+10dgt)
0.2≀SinΟ†<0.5
Apparent power0.000VA~ 9999.9kVAΒ±(1%+3dgt)
Power factor-1.000~ 1.000Β±(1.5%+3dgt)
CosΟ†β‰₯0.5
Β±(1.5%+10dgt)
0.2≀CosΟ†<0.5
Active energy0.000Wh~ 9999.9MWhΒ±(1%+3dgt)
CosΟ†β‰₯0.8
Β±(1.5%+10dgt)
0.2≀CosΟ†<0.8
Reactive energy, inductive or capacitive0.000VARh~ 9999.9MVARhΒ±(1%+3dgt)
SinΟ†β‰₯0.5
Β±(1.5%+10dgt)
0.2≀SinΟ†<0.5
Apparent energy0.000VAh~ 9999.9MVAhΒ±(1%+3dgt)
Phase angle-179°~ 180°±(2°)
Tanφ-32.76~ 32.76φ:±(1°)
(VA>50VA)
Phase shift of power factor-1.000~ 1.000Ο†:Β±(1Β°)
(DPF)
Harmonic ratio0.0%~ 99.9%Β±(1%+5dgt)
(order 1 to 50) (Vrms>50V)
Harmonic angle-179°~ 180°±(3°) harmonics of order 1 to 25
(Vrms>50V)Β±(10Β°) harmonics of order 26 to 50
Total harmonicΒ ratio0.0%~ 99.9%Β±(1%+5dgt)
Distortion factor0.0%~ 99.9%Β±(1%+10dgt)
(DF or THD-R)<50
Transformer K factor1.00~ 99.99Β±(5%)
3 phases unbalance0.0%~ 100%Β±(1%)
Number of channels4U/4I
Parameters of electricityW, VA, Var, PF, DPF, cosφ, tanφ
Energy parametersWh, Varh, Vah
Harmonic50
Total harmonic distortionOrder 0~50, each phase
Expert modeYes
Number of Transient records150 sets
3 phases unbalanceYes
Min/MaxYes
Alarm40 different types of parameter selections, 12,800 sets alarm logs
PeakYes
Phasor diagram displayAuto
Auto power offYes
BacklightYes
Menu languageEnglish/Chinese
USB interface/PC softwareYes
General Characteristics
Power9.6V rechargeable lithium-ion battery
Product colourRed and grey
Product net weightInstrument: 1.6kg, current clamp: 510g x 4
Product size240mm Γ— 170mm Γ— 68 mm
Standard accessories1pc carry cloth bag, (yellow, green, red, blue, black total 5pcs test lead), 4pcs alligator clip, 1pc power adapter, 1pc CD software, 4pcs 1000A current clamp

Documents

Uni-T UT285C Three Phase Power Quality Analyzer English Manual

Uni-T UT285C Three Phase Power Quality Analyzer Product Flyer
