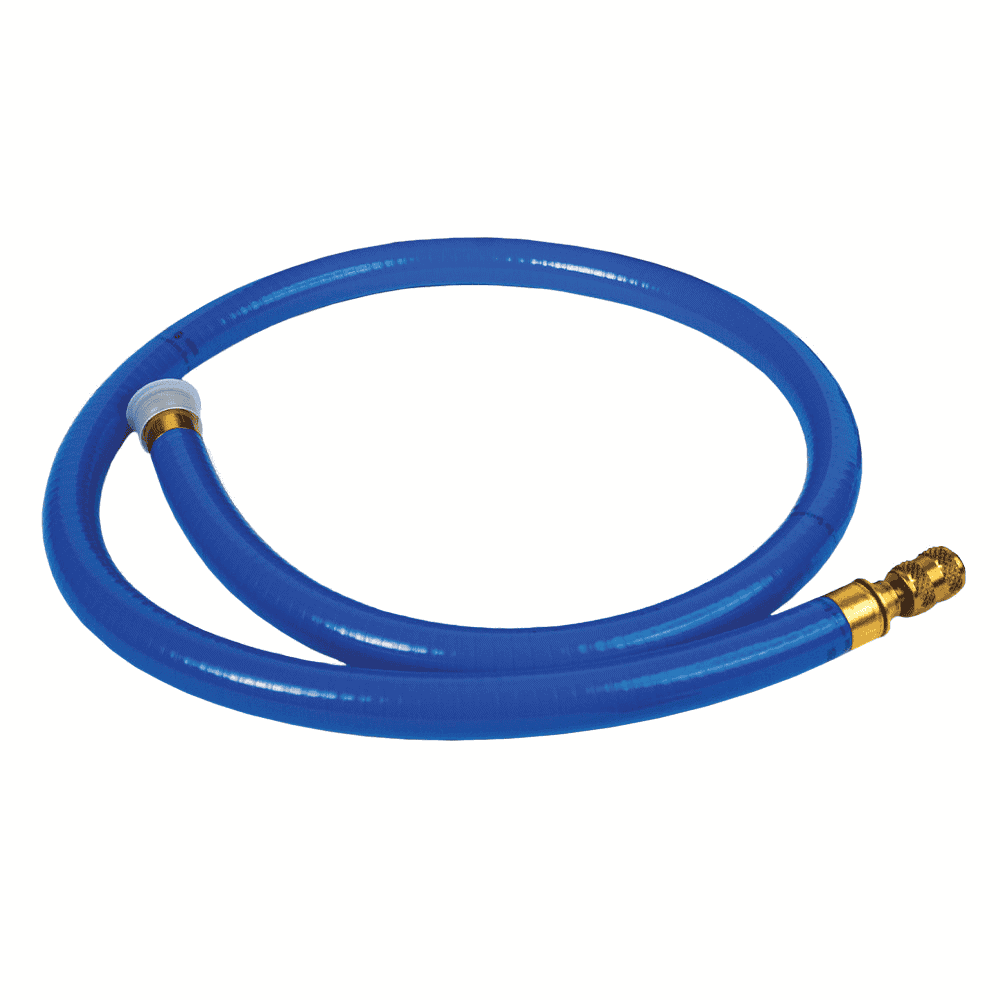

These hoses are freaky fast! TruBlu hose has a 3/4″ internal diameter delivering 16 CFM of conductance speed at 1,000 microns. Evacuate 80x faster than 1/4″ I.D. hoses and up to 6x faster than other “vacuum rated” hoses on the market today.
The TruBlu hose is extremely tough, ultra-smooth bored, yet the flexible wire reinforced PVC means it just won’t kink or collapse. TruBlu is resistant to abrasion and crushing and can be knocked back to round if accidentally flattened. Additionally, the UV compounding has excellent weather resistance to provide years of reliable service.
The proprietary polymer blend has extremely low air permeation, water vapor adhesion, and outgassing making this hose ideal for vacuum service. In short TruBlu’s ultra-smooth large bore reduces flow loss and other losses providing the fastest evacuation of any hose on the market today.
Features
- Includes BluVac+ Micro Vacuum Gauge and 1.5m TruBlu large bore hose
- Fixed 3/8″ fitting designed for mini split evacuation applications
- 3/4″ internal diameter hose delivers up to 16 CFM conductance
- Evacuates up to 80x faster than standard 1/4″ vacuum hoses
- Ultra-smooth bore minimizes flow restrictions and vacuum loss
- Flexible wire-reinforced PVC construction resists kinks and collapse
- Low-permeation polymer blend reduces outgassing and moisture retention
- UV, abrasion, and crush resistant for long-lasting durability
- Vacuum-rated KF fittings provide secure, leak-tight connections
- Compatible with 1/4″, 3/8″, and 1/2″ HVAC service fittings through TruBlu adapters
Includes
- (1) SA10739MF38-1.5 TruBlu Hose 1.5m x 3/8″ Female
- (1) S10756 Stainless Steel Clamp
- (4) SA10758 O-Rings
- (1) SA10788 KF-16 to 1/4 FFL Adapter
- (1) SA10745 KF-16 to 1/4 FFL RA Adapter
- (1) S10864 Core Removal Tool 5/16″
- (1) S10150 Soft Carrying Case

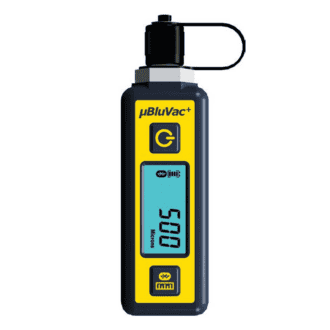

- (1) A10730 BluVac+ Micro Vacuum Gauge
- (1) S10687 BluVac+ Micro Pouch
- (1) S10695 Brass Coupler
- (2) AA Batteries
| Specifications | |
|---|---|
| Hose Length | 1.5 Meter (4.9 ft) |
| Hose Internal Diameter | Large 3/4″ |
| Hose End | Fixed 3/8″ Female |
| BluVac+ Micro Specs | |
| Range | 0 – 25,000 Microns (3330 Pa, 33.3 mBar, 25 mmHg, 25 Torr) |
| Vacuum Accuracy | 5% of Reading +/- 5 Microns |
| Vacuum Resolution | 1 Micron at less than 1000 Microns 10 Microns between 1,000 and 10,000 Microns 100 Microns between 10,000 and 25,000 Microns |
| Maximum Overpressure | 1000 PSI |
| Warm-up Time | Instant |
| Response Time | Instant |
| Power | Two ‘AAA’ Alkaline Batteries |
| Battery Life | Up to 100 Hours |
| Operating Temperature | 10°F – 122°F (-12°C – 50°C) |
| Weight | 2.7 oz. (77g) Including Batteries |
| Dimensions | 4.3″ x 1.3″ x 1″ (11cm x 3.3cm x 2.5cm) |
| Vacuum Port Fitting | 1/4″ Male Flare Anodized Aluminum for Weight & Durability Captured Dust Cap Included |
| U.S. Patent Nos. | 8,504,313 and 8,768,633 |
