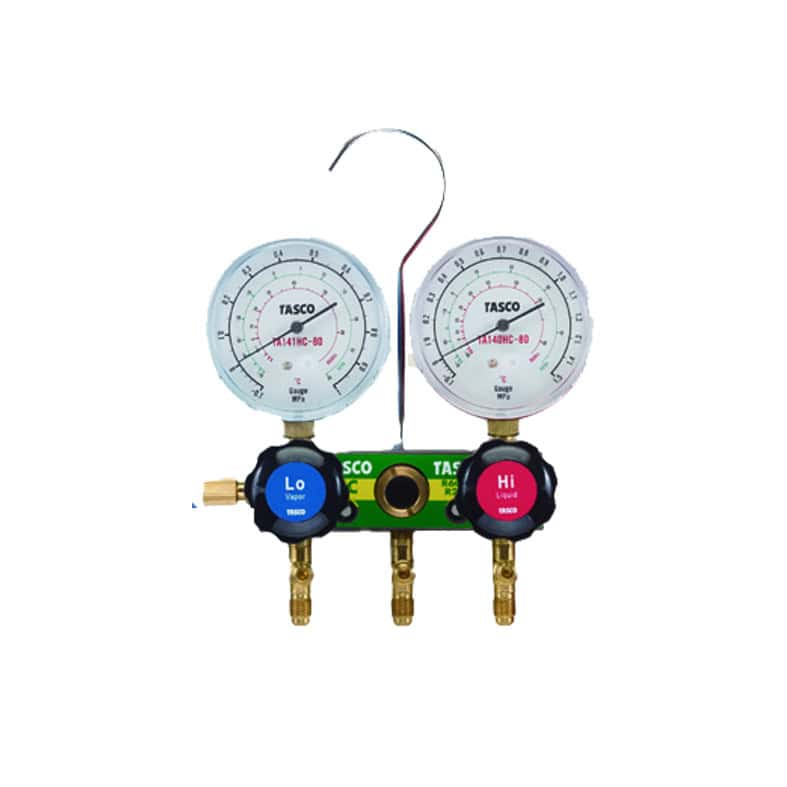

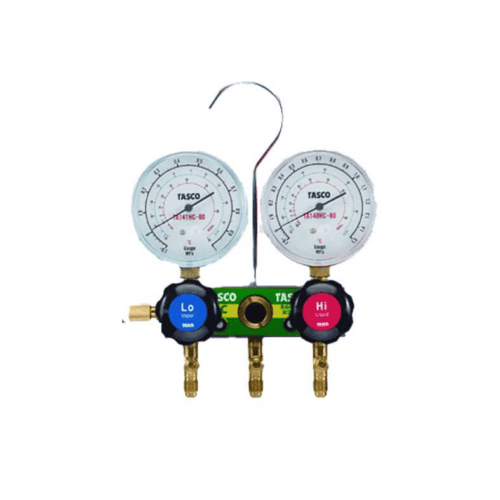

The TASCO TA127 series is a high-precision manifold gauge kit built specifically for hydrocarbon (HC) refrigerants like R600a and R290. These flammable refrigerants require specially rated tools, and the TA127 line meets the demand with safe construction, accurate gauges, sight glass, and ball-valve control. Choose between compact (92 cm hose) TA127‑1 or extended‑reach (150 cm hose) TA127‑2 depending on your service needs.
Features
- 80 mm large, easy-read pressure gauges with integrated saturation temperature scales for R600a / R290
- Ball-valve operation giving smooth, leak-minimizing quarter-turn control
- Sight glass on the manifold for visual flow indication

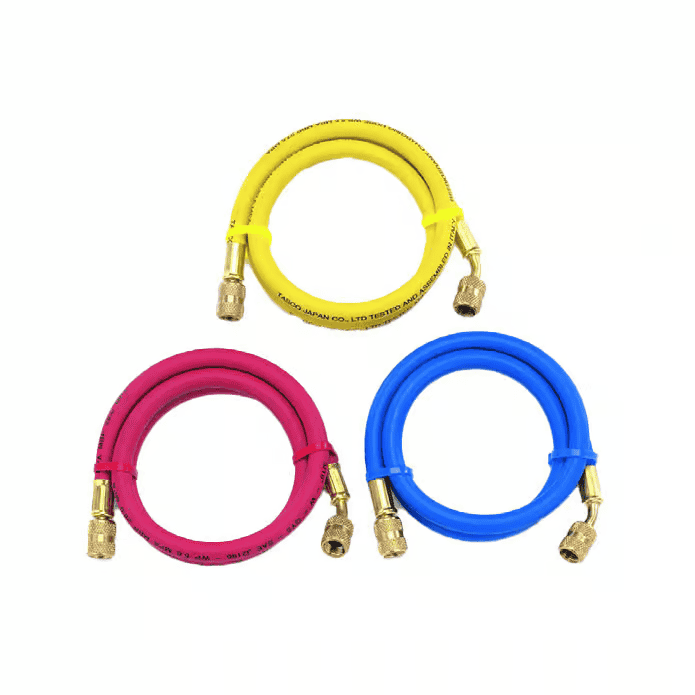

- Color-coded hoses (red, blue, yellow) for clear service identification
- Safe design and construction for flammable refrigerant service
- Available in two hose-length configurations for flexibility
Options

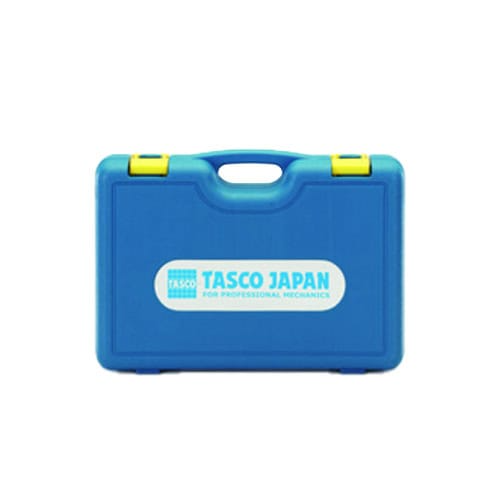

- TA127-1-EXP manifold with 3 x 92 cm hoses (blue/yellow/red) and carry case
- TA127-2-EXP manifold with 3 x 150 cm hoses (blue/yellow/red) and carry case
Specifications
- Low-side gauge range: –0.1 to 1.0 MPa
- High-side gauge range: –0.1 to 1.5 MPa
- Manifold body: includes sight glass
- Hose options: 92 cm (TA127‑1) or 150 cm (TA127‑2)
- Gauge size: 80 mm
- Connections: typical 1/4″ flare (service hose) and 1/8″ NPT gauge threads
- Saturation temperature scales embedded on gauges
