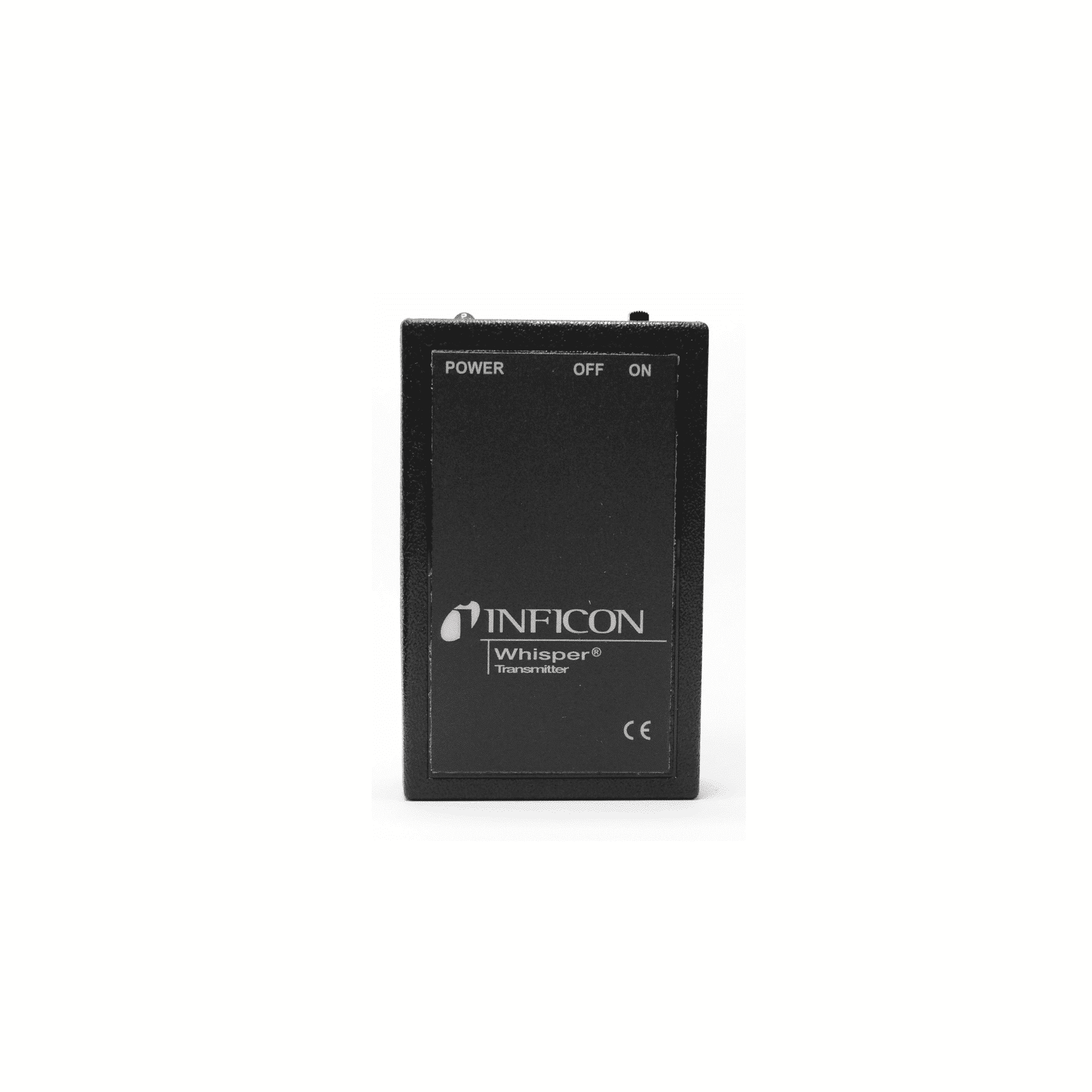

The Whisper Transmitter is a supplementary tool designed for use with the Whisper Ultrasonic Leak Detector, aiding in the identification of leaks in various locations such as walk-in coolers, freezers, joints in walls and ceilings, around doors and windows, as well as in ducts, body seals, and rubber moldings. Emitting ultrasound at the precise frequency of 40.5 kHz, identical to what the Whisper detector picks up, the Transmitter is placed within a sealed area. By then scanning the exterior of this sealed space, any signal escaping due to a flaw in the seal will trigger a reading on the Whisper, enabling swift and accurate pinpointing of the leak location.
Features
| Accessory Type | Whisper Transmitter |
|---|---|
| Includes | Carrying Case; Headphones; Metal Contact Probe; Rubber Extension Probe; Whisper Transmitter |
| Standards | CE Certified |
| Product Type | Whisper Transmitter |
| Digital Display Screen Type | LED Indicators |
| Brand | APPROVED VENDOR |
| Manufacturer Part Number | 711-600-G1 |
| Batteries Included | Yes |
| Battery Chemistry | Alkaline |
| Battery Size | D |
| Battery Voltage | 9V |
Specifications
| Attribute | Value |
|---|---|
| Manufacturer Warranty Length | 2 yr |
| Number of Batteries Required | 2 |
| Calibration Certificate Type | Not Certified |
| Display Size | 3.75 in |
| Display Type | Analog |
| Maximum Frequency Response | 43 kHz |
| Maximum Locating Distance | 12 in |
| Minimum Frequency Response | 37 kHz |
| Minimum Locating Distance | 0.01 in |
| Testing Functions | Gas Leakage; Vacuum Leakage |
| UNSPSC | 41111809 |
