Dairy Cabinet Pump is designed as an automatic condensate and water removal pump for water dripping from refrigeration display cabinets. The pump is controlled by a float switch mechanism that turns the pump on when water collected in the tank reaches a certain level and automatically switches off when the water level is at its lowest.
The market-leading British made Pump House dairy cabinet range or fondly referred to as ‘Vincent’ offers an unrivalled solution to supermarket refrigeration. With a height of only 76mm this stainless steel, easy to service pump delivers a complete solution. Ideal for supermarket refrigeration cabinets. Can deal with an intermittent water temperature of up to 120F / 49C.
FEATURES:
- Only 76mm high – fits under even the lowest display cabinet
- Barbed hose tail – for easy connection of 1/2″ drain hose
- Multiple inlet options (top, end or side)
- Power and alarm cables pre-fitted
- High discharge head and flow rate – suitable for most applications
- Ideal for cold produce display cabinets in supermarkets and convenience stores
- Maximum discharge lift: 700 LPM
- IP 44 rated sealed electric box
- One year warranty.
OPTIONS:

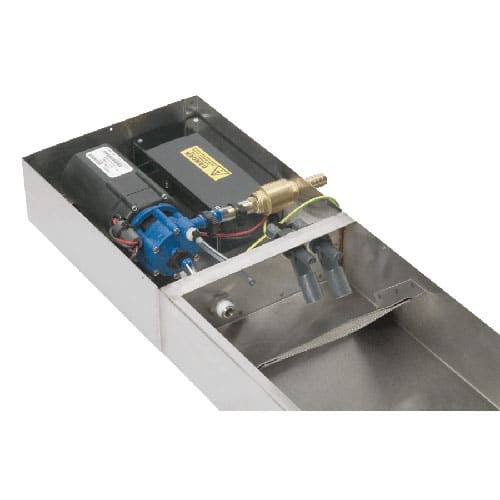

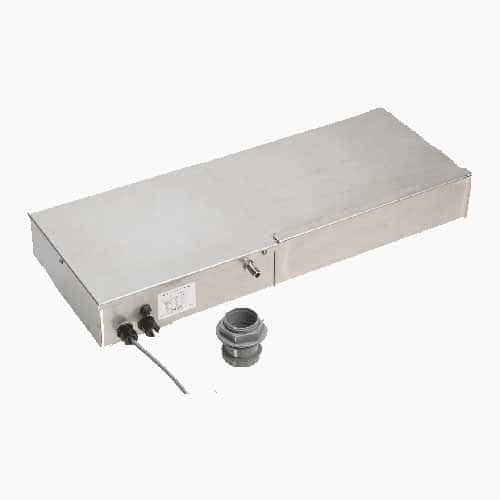

DT-DCP30A – 1x Standard Dairy Cabinet Pump
DT-DCP30E – 1 x Economy Dairy Cabinet Pump

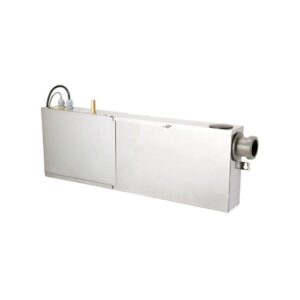

DT-DCP30V – 1 x Vertical Dairy Cabinet Pump
SPECIFICATIONS:
Part code | Description | Max. head | Tank capacity | Outlet | High level alarm |
DCP30A | Dairy cabinet standard | 23 metres | 5.5 litres | 1/2” | 30mm |
DCP30E | Dairy cabinet economy (no lid) | 23 metres | 5.5 litres | 1/2” | n/a |
DCP30V | Dairy cabinet vertical | 23 metres | 4.5 litres | 1/2” | 160mm |
Part code | Height | Length | Width | Weight | On level | Off level |
DCP30A | 76mm | 610mm | 200mm | 5kg | 50mm | 37mm |
DCP30E | 76mm | 610mm | 200mm | 5kg | 50mm | 37mm |
DCP30V | 200mm | 580mm | 76mm | 5kg | 150mm | 65mm |
